Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
59M18-02A20NSWITCH ROTARY 20POS 250MA 115V |
0 |
|
Datasheet |
59 | Bulk | Active | 20 | Continuous | 2 | 1 | SP20T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.72mm |
|
|
59M18-02-1-20N-CSWITCH ROTARY 20POS |
35 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
09MS45-08-1-08NSWITCH ROTARY 8POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 8 | Continuous | 8 | 1 | SP8T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 78.38mm |
|
RM106772BCBROTARY |
189 |
|
Datasheet |
RM | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Flatted (4.2mm Dia), Slotted | 7.70mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
|
6KF001A-3S10R4-0CODED ROTARY SW, 3*3 THT, 10POS, |
3,000 |
|
Datasheet |
- | Tube | Active | 10 | - | - | - | BCD | - | - | - | - | Flatted | - | - | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | - |
|
|
6KF001B-3S10R5-0CODED ROTARY SW, 3*3 SMD, 10POS, |
1,700 |
|
Datasheet |
- | Tube | Active | 10 | - | - | - | BCD | - | - | - | - | Flatted | - | - | Copper Alloy | Gold | Surface Mount | Gull Wing | - | - |
|
RTAP31S12M25NSROTARY SWITCH |
105 |
|
Datasheet |
RTA | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (6mm Dia), Slotted | 25.00mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 12.60mm |
|
56D36-01-1-AJNSWITCH ROTARY 2-10POS 200MA 115V |
44 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
56SD36-01-1-AJSSWITCH ROTARY 2-10POS 200MA 115V |
60 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
50DP45-01-1-AJNSWITCH ROTARY 2-8POS 150MA 115V |
20 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 8 | Adjustable | 1 | 1 | SP8T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
50DP90-01-1-AJNSWITCH ROTARY 2-4POS 150MA 115V |
28 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 1 | SP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 90° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
71BD30-01-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
99 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|

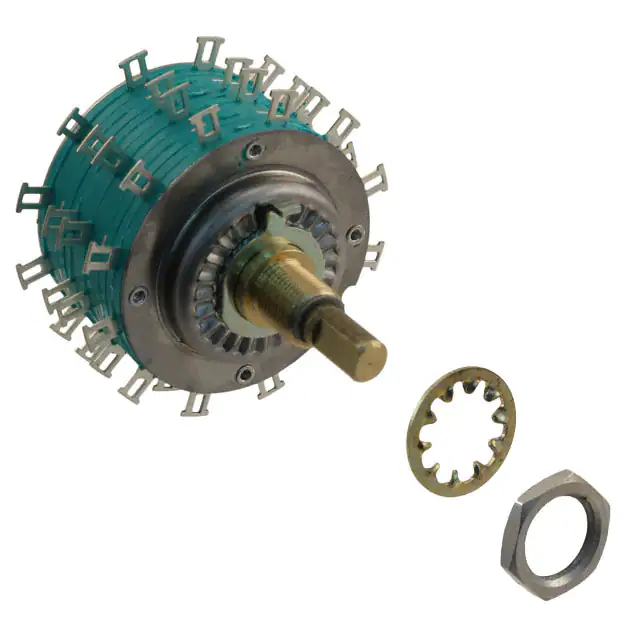

C7D0224N-CSWITCH ROTARY 24POS 500MA 125V |
21 |
|
Datasheet |
C7 | Bulk | Active | 24 | Continuous | 2 | 1 | SP24T | Non-Shorting (BBM) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 32.49mm |
|

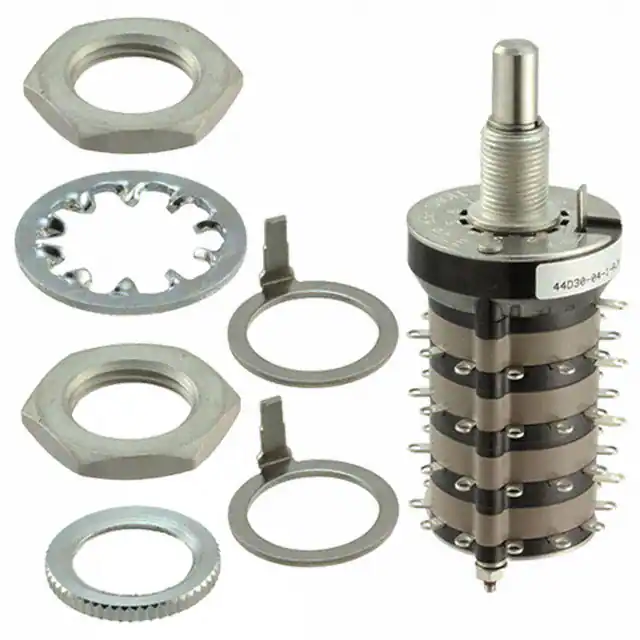

44D30-04-1-AJNSWITCH ROTARY 2-12POS 1A 115V |
5 |
|
Datasheet |
44 | Bulk | Active | 2 ~ 12 | Adjustable | 4 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 52.40mm |
|
312-12ESWITCH ROTARY 12POS 30A 300V |
15 |
|
Datasheet |
312 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
A10415RNCQSWITCH ROTARY 4POS 2.5A 125V |
52 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
RM101772BCBSWITCH ROTARY 2POS 500MA 24V |
50 |
|
Datasheet |
RM | Tray | Active | 2 | Fixed | 1 | 1 | SPST | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Flatted (4.2mm Dia), Slotted | 7.70mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
RM105002BCBSWITCH ROTARY 5POS 500MA 24V |
38 |
|
Datasheet |
RM | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Screwdriver Slot | Flush | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
KC34A30.001NPSSWITCH ROTARY 4POS 350MA 125V |
80 |
|
Datasheet |
KC | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
H20407RR01QSWITCH ROTARY 4POS 12A 125V |
48 |
|
Datasheet |
H | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T, Adjacent Contact | Non-Shorting (BBM) | 12A (AC), 1A (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 7.29mm | 45° | Copper | Silver | Panel Mount | Solder Lug | - | 14.61mm |
