Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71MB30-01-4-03NSWITCH ROTARY 3POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
71MB30-01-4-03SSWITCH ROTARY 3POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
71MBSF30-01C03SSWITCH ROTARY 3POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm |
|
|
55SP36-01-1-02NSWITCH ROTARY 2POS 200MA 115V |
0 |
|
Datasheet |
55 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 13.51mm |
|
|
MRX402MINIATURE POWER LEVEL ROTARY |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
71BS30-01-3-04SSWITCH ROTARY 4POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 19.33mm |
|
|
MRX204-BGSWITCH ROTARY 2-4POS 2A 125V |
0 |
|
Datasheet |
MR | Box | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX204-BBSWITCH ROTARY 2-4POS 2A 125V |
0 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX204-BHSWITCH ROTARY 2-4POS 2A 125V |
0 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX204-BASWITCH ROTARY 2-4POS 2A 125V |
0 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
51PT30-01-3-04NSWITCH ROTARY 4POS 150MA 115V |
0 |
|
Datasheet |
51 | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 14.63mm |
|
|
50MP36-01-2-02NSWITCH ROTARY 2POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 13.64mm |
|
|
50MP36-01-2-05NSWITCH ROTARY 5POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 13.64mm |
|
|
71BD36-02-1-AJSSWITCH ROTARY 2-10POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 2 | 1 | SP10T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
|
71AD36-02-1-AJSSWITCH ROTARY 2-10POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 2 | 1 | SP10T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|

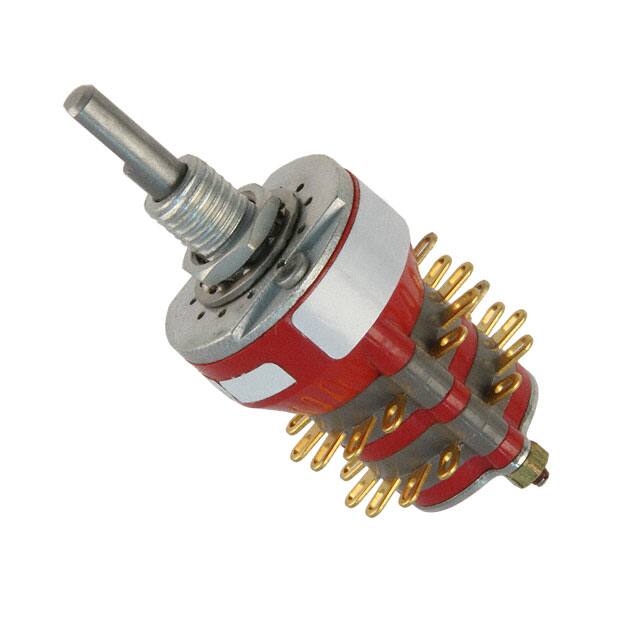

71AD30-02-1-AJSSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
|
MRX204-CBSWITCH ROTARY 2-4POS 2A 125V |
0 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 15.80mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX204-CCSWITCH ROTARY 2-4POS 2A 125V |
0 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 15.80mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX204-CESWITCH ROTARY 2-4POS 2A 125V |
0 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 15.80mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX204-CFSWITCH ROTARY 2-4POS 2A 125V |
0 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 15.80mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
