Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

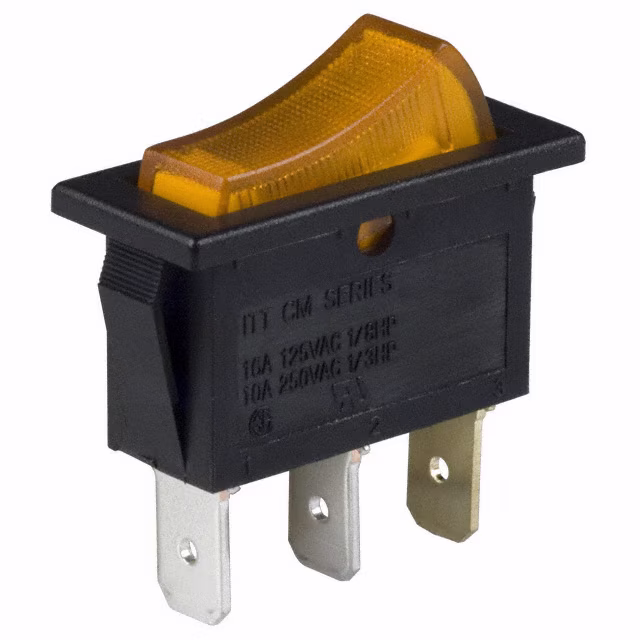

CM102J3AS205QA7SWITCH ROCKER SPST 16A 125V |
922 |
|
Datasheet |
CM | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | No Marking | Neon, Amber | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.40mm x 11.20mm | -20°C ~ 80°C | cULus |
|
300DP3J1BLKM6QESWITCH ROCKER DPDT 5A 120V |
409 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
CN201J62S405QASWITCH ROCKER DPDT 16A 125V |
908 |
|
Datasheet |
CN | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.40mm x 22.20mm | -20°C ~ 85°C | cULus |
|

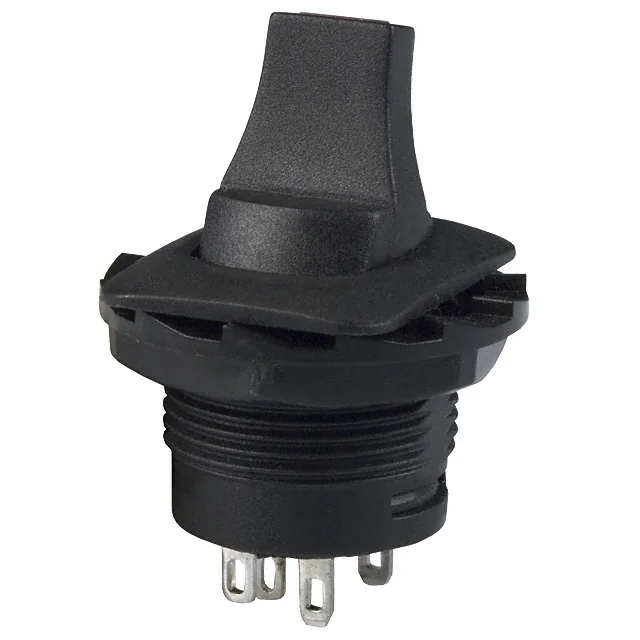

RR3405CLGRNSWITCH ROCKER SPDT 10A 125V |
783 |
|
Datasheet |
RR3405 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-On | 10A (AC) | 125 V | - | Paddle - Illuminated | Black | No Marking | LED, Green | 2.4 VDC | Solder Lug | - | - | Circular - 18.00mm Dia | - | - |
|
300DP1J1GRYVS2QESWITCH ROCKER DPDT 5A 120V |
308 |
|
Datasheet |
300 | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
D202J12S215PQASWITCH ROCKER DPST 4A 125V |
580 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 4A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
400BWMSP4R2BLKSM6QESWITCH ROCKER SPDT 3A 120V |
308 |
|
Datasheet |
400B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | Mom-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

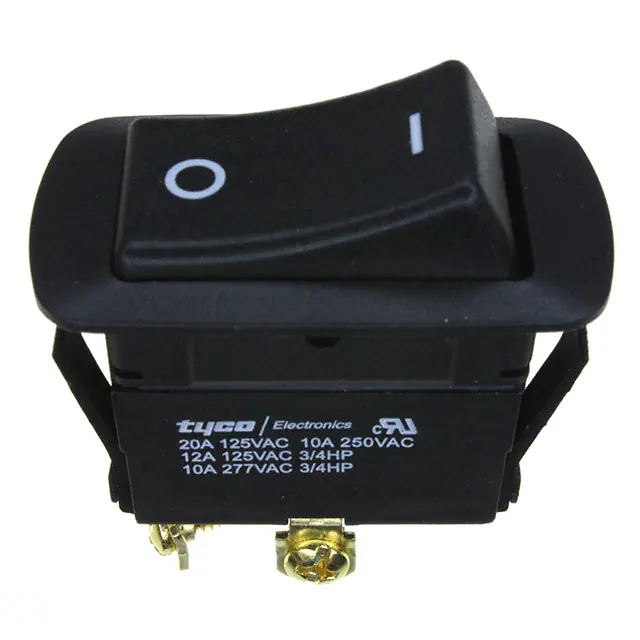

1-1571095-1SWITCH ROCKER SPST 20A 125V |
959 |
|
Datasheet |
PRC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|

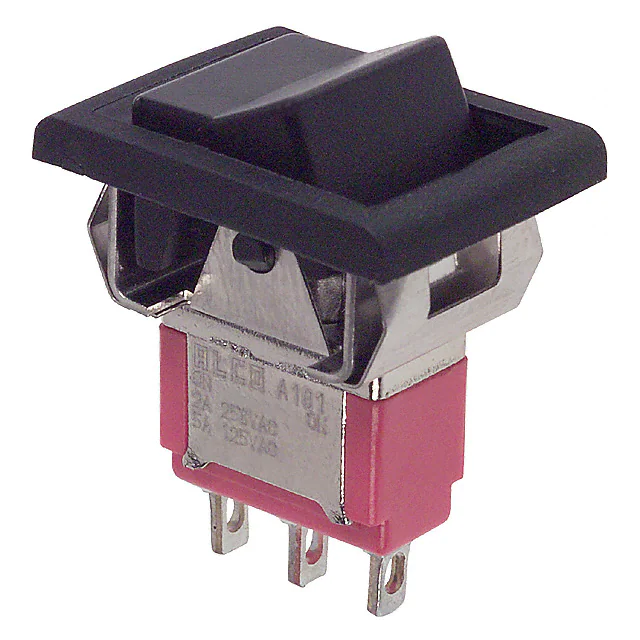

3-1571986-4SWITCH ROCKER SPDT 5A 120V |
220 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
1571986-8SWITCH ROCKER SPDT 5A 120V |
1,080 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
300DP4R8BLKM1QESWITCH ROCKER DPDT 5A 120V |
249 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|

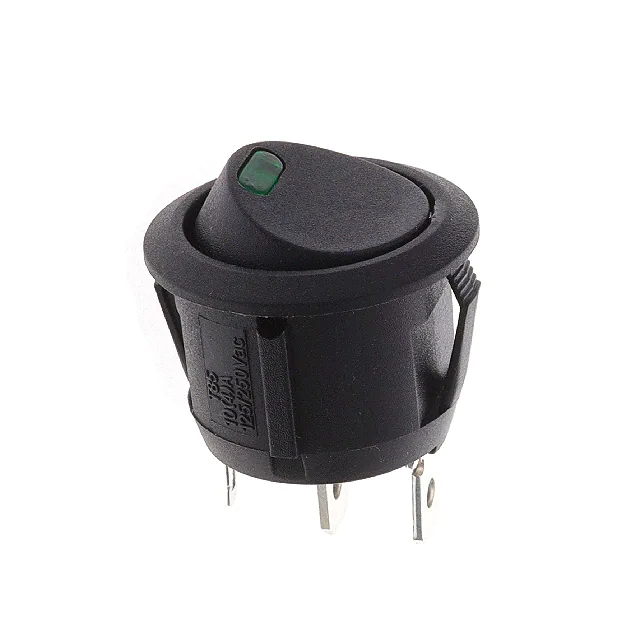

CR102J5GS215QF6SWITCH ROCKER SPST 16A 125V |
1,000 |
|
Datasheet |
CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Red | No Marking | LED, Green | 1.85 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|
CR102JPRS215QF8SWITCH ROCKER SPST 10A 125V |
643 |
|
Datasheet |
CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Paddle - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|

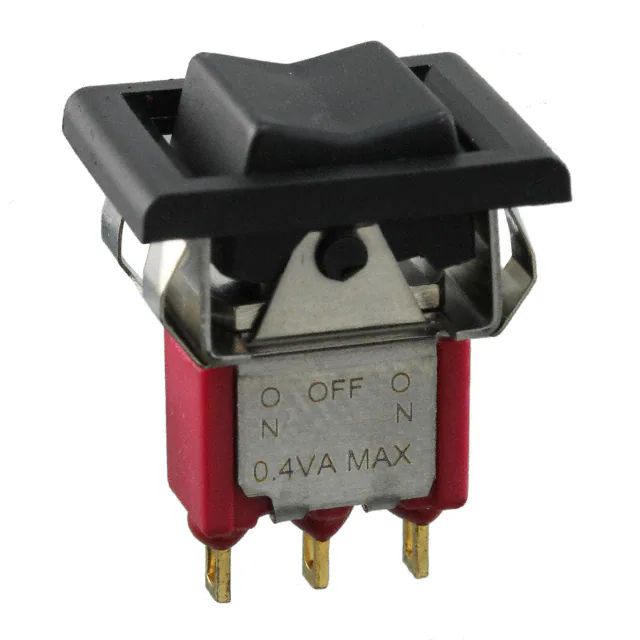

7105J51ZBE22SWITCH ROCKER SPDT 0.4VA 20V |
248 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

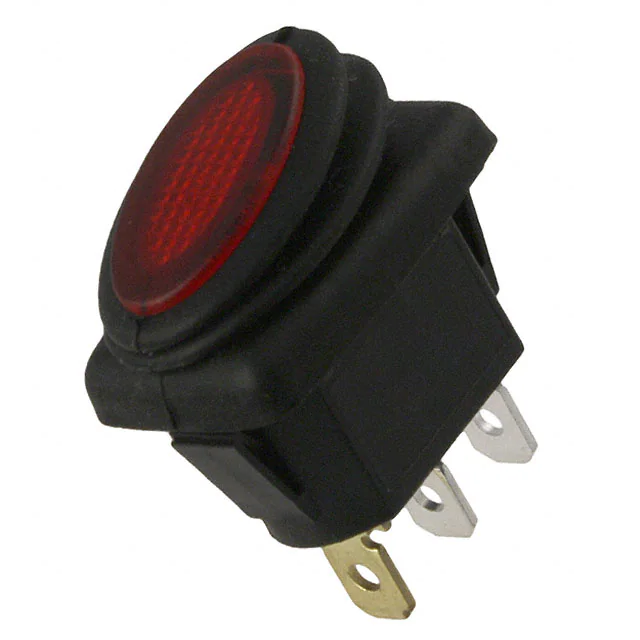

GRB278B802BR1SWITCH ROCKER SPST 20A 14V |
958 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Oval - Illuminated | Red | No Marking | LED, Red | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 23.30mm x 11.60mm | -25°C ~ 85°C | - |
|
GRB260C101BBNNSWITCH ROCKER SPDT 20A 125V |
606 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | cULus, ENEC |
|
RVW42D1100SWITCH ROCKER DPST 20A 125V |
889 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|

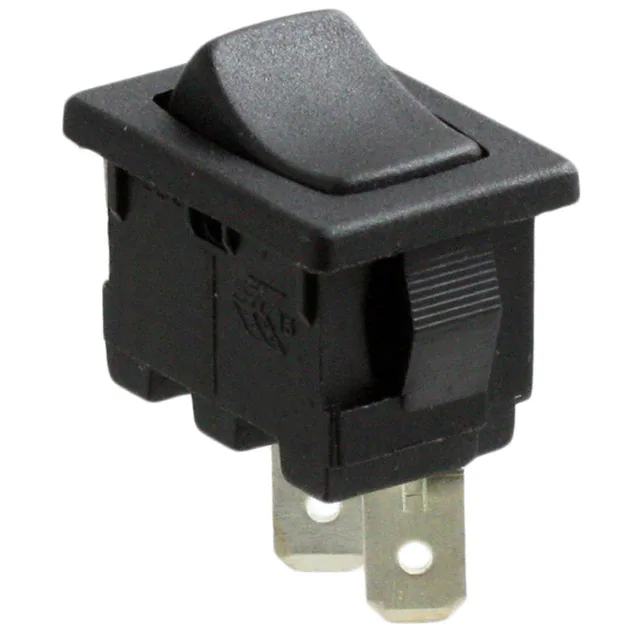

H8601VBBBSWITCH ROCKER SPST-NO 16A 250V |
2,266 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
FL1D-2M-ZSWITCH ROCKER SPDT 0.4VA 28V |
108 |
|
Datasheet |
FL | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | - | -40°C ~ 85°C | - |
|

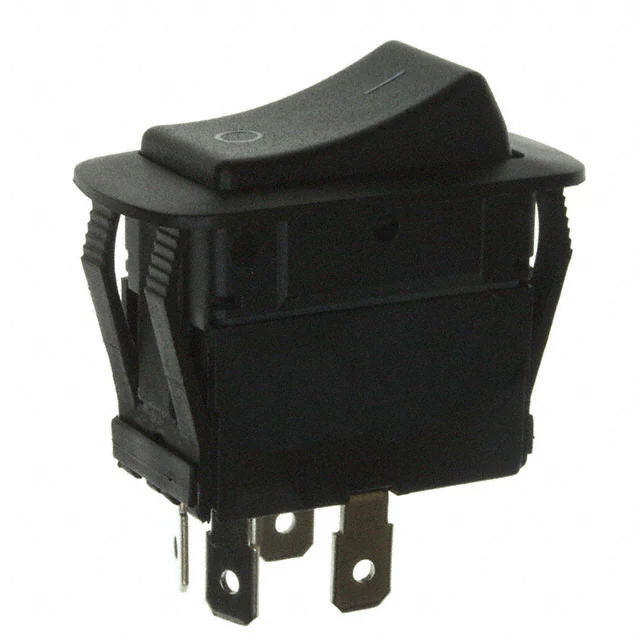

KGC3ANB1BBDSWITCH ROCKER DPST 20A 125V |
4,499 |
|
- |
KG | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
