Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RTP33A9M9SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
CRTP | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC), 14A (DC) | 125 V | 14 V | Flat | Black | Stop Request | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 22.35mm | - | CSA, UL, VDE |
|
|
CRTP33A12M9SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
CRTP | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Red | Stop Request | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 22.35mm | - | CSA, UL, VDE |
|
|
A28KPSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

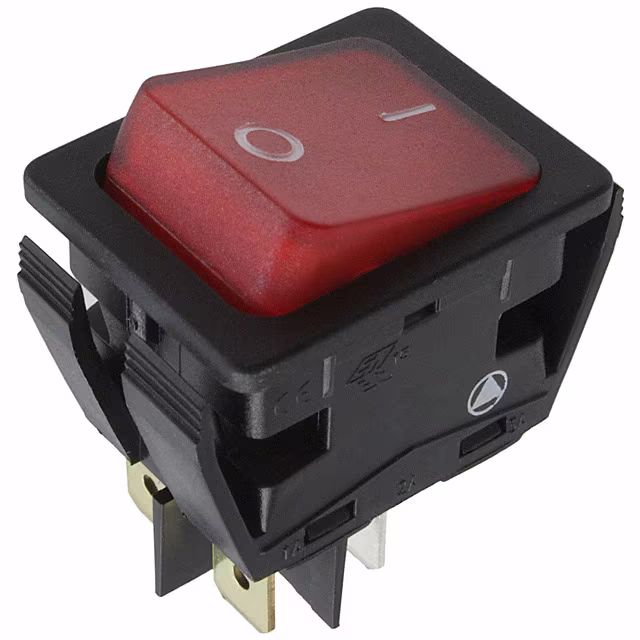

C6053ALBR3-1197W-BSWITCH ROCKER DPST 20A 277V |
0 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Red | O - | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | Antimicrobial | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
C6053ALBA3-1197W-BSWITCH ROCKER DPST 20A 277V |
0 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Amber | O - | Neon, Amber | 250 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | Antimicrobial | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
C6053ALBR2-BSWITCH ROCKER DPST 20A 277V |
0 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | Antimicrobial | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
C6053ALBA3-1196W-BSWITCH ROCKER DPST 20A 277V |
0 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Amber | O I | Neon, Amber | 250 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | Antimicrobial | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|

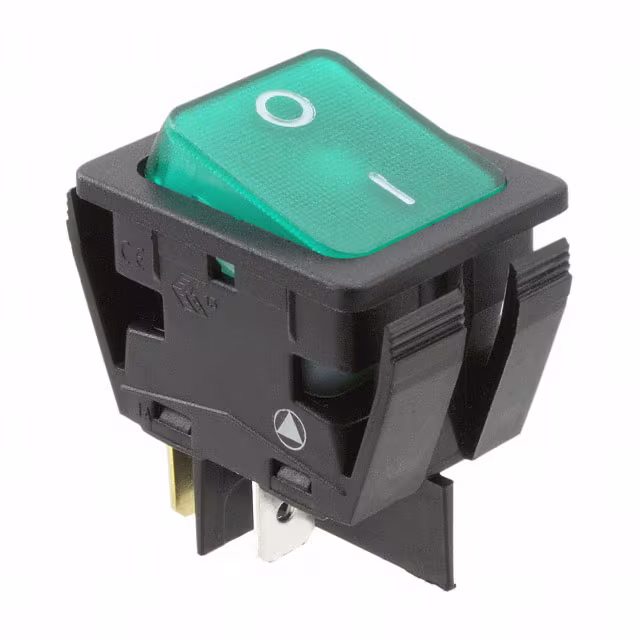

C6053ALBG2-1197W-BSWITCH ROCKER DPST 20A 277V |
0 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | Antimicrobial | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|

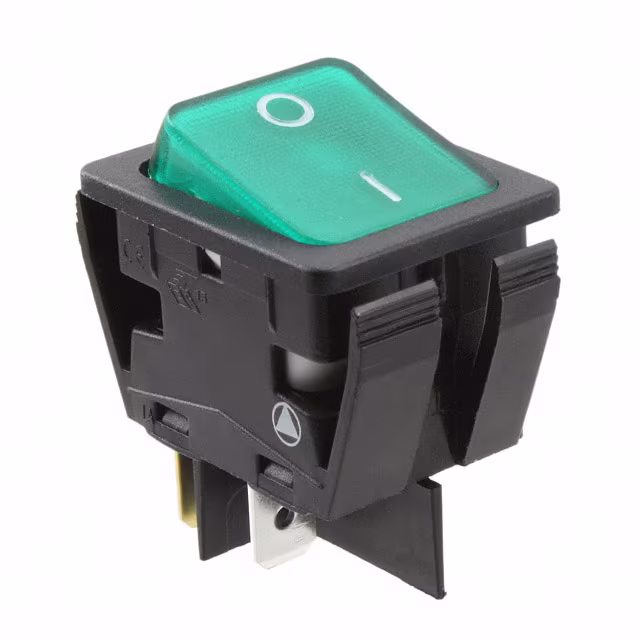

C6053ALBG3-1197W-BSWITCH ROCKER DPST 20A 277V |
0 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Green | O - | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | Antimicrobial | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
C1551AHBB-602AW-CSWITCH ROCKER DPST-NO 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - | CSA, UL |
|
7101J1V6GE2SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
ET03J6ABE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
ET | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
7103J1AQE2SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
C6068ALBR21197WSWITCH ROCKER DPDT 20A 277V |
0 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 277 V | - | Flat - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
2641LH/2A214000L0ROCKER SWITCH 2600 HIGH POWER |
0 |
|
Datasheet |
2600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 15A (DC) | 125 V | 12 V | Flat | Gray | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CSA, NF, UR, VDE |
|
|
2641LH/2A232000L0ROCKER SWITCH 2600 HIGH POWER |
0 |
|
Datasheet |
2600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 15A (DC) | 125 V | 12 V | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CSA, NF, UR, VDE |
|
|
2641LH/2A227000L0ROCKER SWITCH 2600 HIGH POWER |
0 |
|
Datasheet |
2600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 15A (DC) | 125 V | 12 V | Concave (Standard V) | White | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CSA, NF, UR, VDE |
|
|
L16D1S001-00000-000SWITCH ROCKER SPDT 20A 12V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required | - | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
L16B1S001-00000-000SWITCH ROCKER SPDT 15A 24V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (DC) | - | 24 V | Actuator Arm, Cap Required | - | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
TC115-TW-WSWITCH ROCKER SPDT 10A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Wire Leads | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
Rocker Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Rocker Switches?
This category includes related Rocker Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Rocker Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Rocker Switches and other electronic components.
