Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1MS-DP4-R3-M1GESWITCH ROCKER DPDT 5A 125V |
0 |
|
- |
1MS | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | - | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | CSA, UL |
|
|
1MS-DP4-R1/2-M7RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
- |
1MS | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
1MS-DP4-R5-M1GESWITCH ROCKER DPDT 5A 125V |
0 |
|
- |
1MS | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | - | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | CSA, UL |
|
|
1MS-DP4-R4-M3GESWITCH ROCKER DPDT 5A 125V |
0 |
|
- |
1MS | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Paddle | - | No Marking | - | - | Quick Connect | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | CSA, UL |
|
H8503VBBG2-551W-BSWITCH ROCKER SPST 15A 250V |
0 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | Antimicrobial | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
H8503VBBR2-BSWITCH ROCKER SPST 15A 250V |
0 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | Antimicrobial | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|

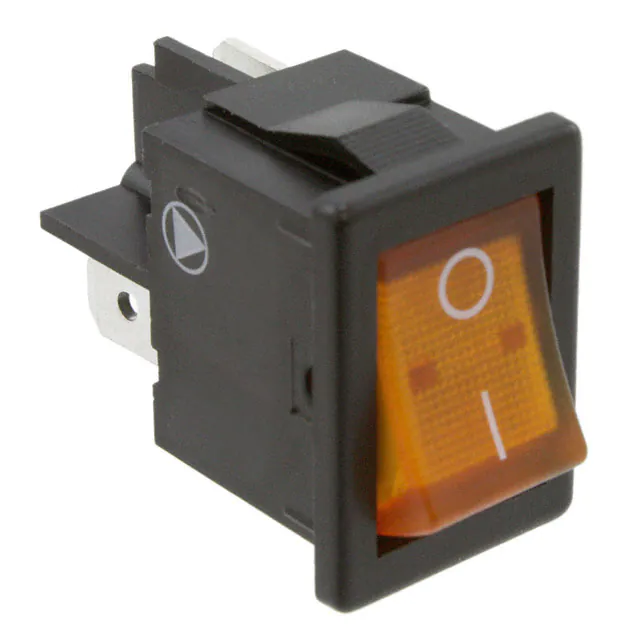

H8503VBBA3-551W-BSWITCH ROCKER SPST 15A 250V |
0 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) - Illuminated | Amber | O - | Neon, Amber | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | Antimicrobial | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
H8503VBBG7-BSWITCH ROCKER SPST 15A 250V |
0 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | No Marking | Incandescent, Green | 12 VAC | Quick Connect - 0.187" (4.7mm) | - | Antimicrobial | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
7108J11CQE32SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
|
TR37WS80065SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
TR | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | SMD (SMT) Tab | - | - | - | -40°C ~ 85°C | - |
|
|
A22KP-CASWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Box | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
U11J1V3QE2SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
V8D1000B-00000-000SWITCH ROCKER SPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
JWM11RC2ASWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
M2022TJW01-FB-1ASWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
U13J51ZQE22SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
R723FF3-SXXX2B4RRWSWITCH ROCKER DPDT 16A 30V |
0 |
|
Datasheet |
R7 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
7105J10ZGE2SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 34.92mm x 16.46mm | -30°C ~ 85°C | cULus |
|
|
MN15TNW01FLAT FRAME MOUNT MINIATURE ROCKE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WRTP11A12M9SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
WRTP | Bulk | Active | Panel Mount, Snap-In | SPST | Off-On | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.94mm x 22.35mm | - | CSA, UL, VDE |
Rocker Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Rocker Switches?
This category includes related Rocker Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Rocker Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Rocker Switches and other electronic components.
