Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A12K1B-DASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A13KB-CASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A13KB-CCSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
D101J12B215QASWITCH ROCKER SPDT 125V |
0 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 4A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 27.13mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
RVWZ142D1121SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | - | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
D503J12S205QASWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
62115929-0-A-WSWITCH ROCKER DPDT 8A 125V |
0 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 8A (AC) | 125 V | - | Concave (Curved) | Black, White | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632352-3B-CDSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Blue | O I | Incandescent, Blue | 12 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
47ASP2J1M6RTSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
47A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
CF-LA-2KZ2-5CSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
CF-LA | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | In Rush 160A Max | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, UL |
|
|
47BWSP1J1V2QTSWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
47B | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
3004P1R6BLKM1REBLKSWITCH ROCKER 4PDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
1571987-7SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
|
1571987-8SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
|
TC111-TB-BSWITCH ROCKER SPDT 10A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
TC111-TW-BSWITCH ROCKER SPDT 10A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
C1350JSBWSWITCH ROCKER DPST-NO 20A 250V |
0 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | - | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - | CSA, UL |
|

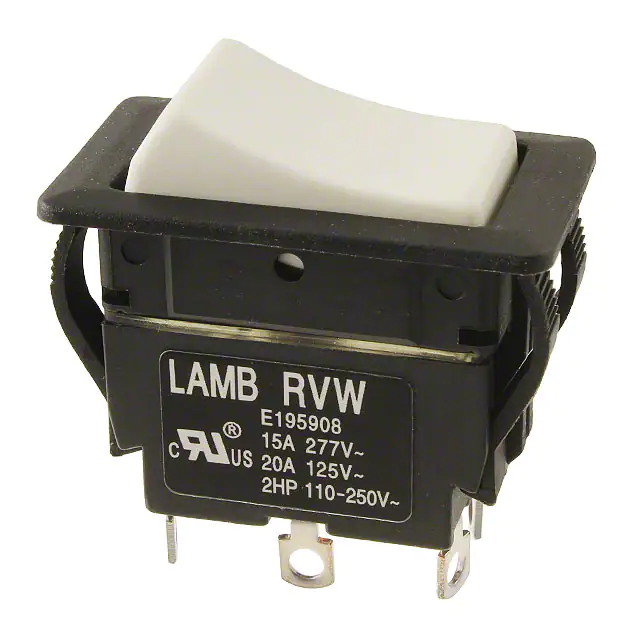

RVW5GD1200SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
RVW6Z02D1200SWITCH ROCKER 20A 125V |
0 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | - | - | 20A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
47ASP4R7M1QTSWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
47A | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
