Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

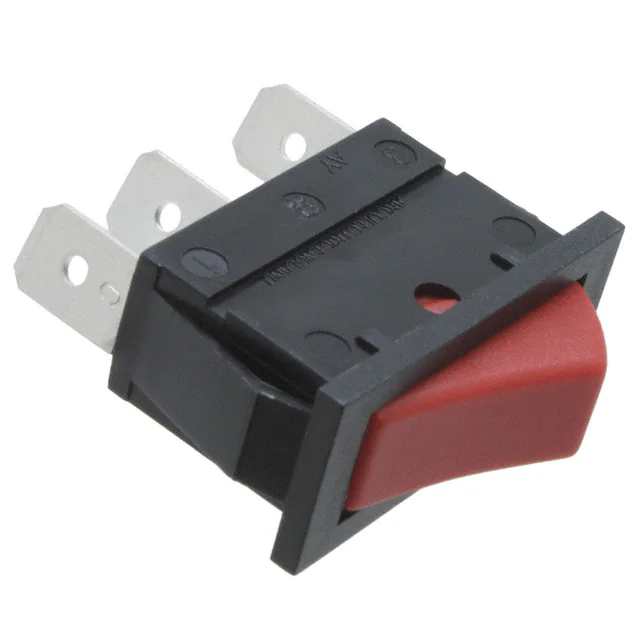

C1510AABR-BSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|

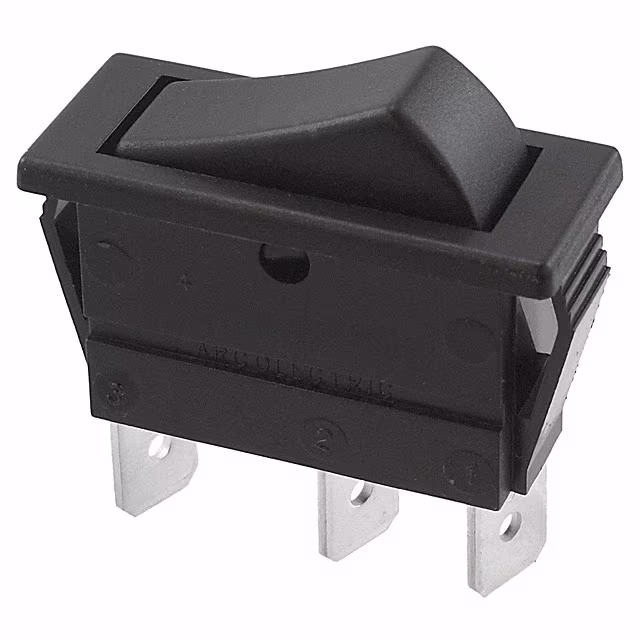

C1510ALBB-BSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
C1520ABBB-BSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
C1520ARBB-BSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
47BWSP1J1M6QTSWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
47B | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
C6003PLBBL2SWITCH ROCKER SPST 20A 277V |
0 |
|
Datasheet |
6000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Black | No Marking | Neon, Blue | 125 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
|
3003P1R6WHTM3QEWHTSWITCH ROCKER 3PDT 5A 120V |
0 |
|
Datasheet |
300 | Tray | Active | Panel Mount, Snap-In | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
3003P4R6BLKM1QEBLKSWITCH ROCKER 3PDT 5A 120V |
0 |
|
Datasheet |
300 | Tray | Active | Panel Mount, Snap-In | 3PDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
47BWSP2R1M1RTSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
47B | Bulk | Active | Panel Mount, Flange | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
C5503ARBB7SWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Black | No Marking | Incandescent | 12 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|

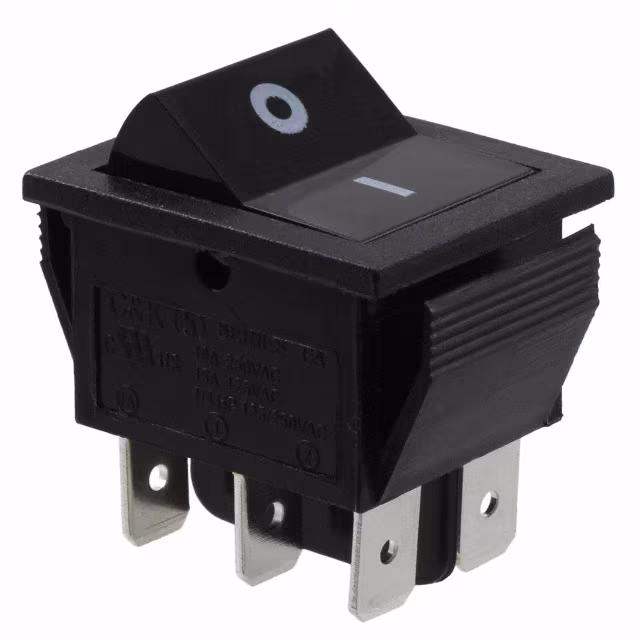

CA21J12207PQSWITCH ROCKER DPDT 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 22.00mm | -30°C ~ 65°C | CSA, UL |
|
|
300DP8J2BLKM6RESWITCH ROCKER DP3T 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle | DP3T | Mom-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP7J1BLKM7RESWITCH ROCKER DP3T 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | DP3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
1M1-SP1-R6/2-M2GESWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
1M1 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | CSA, UL |
|
|
1M1-SP1-R3/2-M1RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
- |
1M1 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
A101J1AQ0SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
A | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
47ASP2J1V2QTSWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
47A | Bulk | Active | Through Hole | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
47ASP3J1M6RTSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
47A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
47ASP1J1V2QTSWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
47A | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
LRA515-CR-B/012VSWITCH ROCKER SPST 10A 30V |
0 |
|
- |
LRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (DC) | - | 30 V | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 12 VAC/DC | Wire Leads | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
