Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
300DP3J2BLKM7QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP6J1BLKM7QESWITCH ROCKER SP3T 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | - |
|
|
300SP3R6BLKM1QEBLKSWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300SP4R3BLKM1QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | - |
|
|
300AWDP1J1BLKM6QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

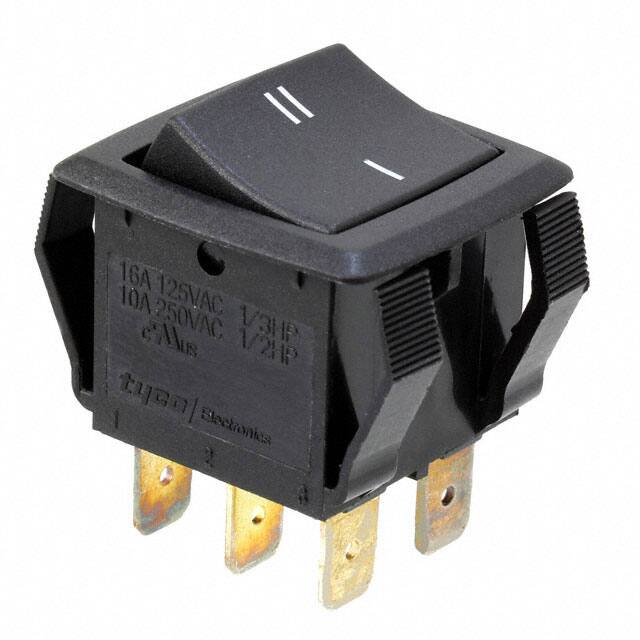

PRDDD1-16F-BB0DWSWITCH ROCKER DPDT 16A 125V |
0 |
|
Datasheet |
PRD | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | - = | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 25.40mm | -20°C ~ 85°C | UL |
|
|
300DP1R7BLKM3QEBLKSWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
D602J12S217HQFSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
300DP1R8BLKM1QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP1R8WHTM1QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300SP4J1BLKVS2RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
G01195335SWITCH ROCKER SPST 125V |
0 |
|
Datasheet |
DSR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 6A (DC) | 125 V | 28 V | Convex (Reverse V) - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.40mm x 13.00mm | -25°C ~ 85°C | cURus, DEMKO, ENEC |
|
|
C1350ARWW-677BSWITCH ROCKER DPST-NO 20A 250V |
0 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | White | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 25.40mm | - | CSA, UL |
|
|
T8650VBBBSWITCH ROCKER DPST 10A 277V |
0 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 277 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 21.90mm x 19.30mm | - | CSA, UL |
|
|
300AWSP3R1M1RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300A | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|
|
300AWSP3R2BLKM1RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300A | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
300AWDP3R1BLKM1QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300A | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|
|
RR412-BB-NESWITCH ROCKER SPDT 12A 125V |
0 |
|
- |
RR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 12A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | 0°C ~ 85°C | cUL, UL |
|
|
RR612-BB-NGSWITCH ROCKER SPDT 12A 125V |
0 |
|
- |
RR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 12A (AC) | 125 V | - | Concave (Curved) | Black | II O I, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | 0°C ~ 85°C | cUL, UL |
|
|
RR612-WW-NGSWITCH ROCKER SPDT 12A 125V |
0 |
|
- |
RR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 12A (AC) | 125 V | - | Concave (Curved) | White | II O I, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | 0°C ~ 85°C | cUL, UL |
