Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400MDP3R1BLKM1QESWITCH ROCKER DPDT 3A 120V |
0 |
|
Datasheet |
400 | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|
400MDP3R1BLKM2QESWITCH ROCKER DPDT 3A 120V |
0 |
|
Datasheet |
400 | Bulk | Active | Through Hole | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|
|
400MDP3R1WHTM1QESWITCH ROCKER DPDT 3A 120V |
0 |
|
Datasheet |
400 | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|
|
400MDP3R6WHTM1QESWITCH ROCKER DPDT 3A 120V |
0 |
|
Datasheet |
400 | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 7.11mm | -30°C ~ 85°C | cULus |
|
|
300AWSP1J1BLKM7RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
LRA910-RC-B/250N/O-ISWITCH ROCKER SPST 16A 125V |
0 |
|
- |
LRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | White | O I | Neon, White | 250 VAC | Solder Lug | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|

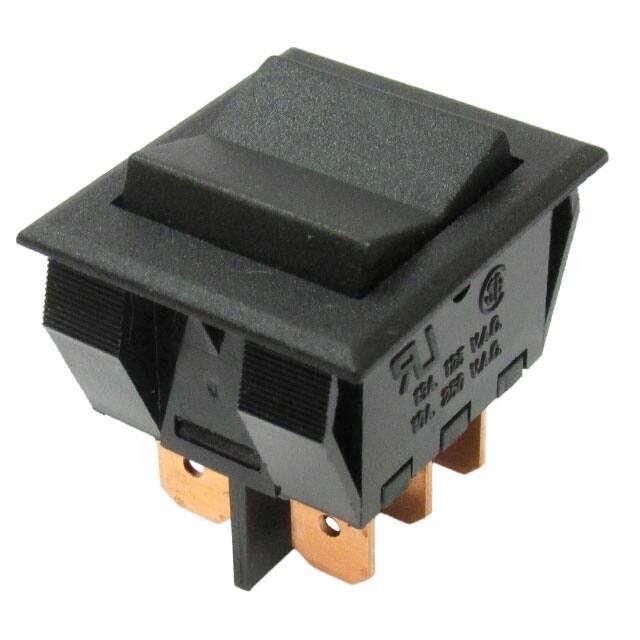

GR-2023B-0000SWITCH ROCKER DPDT 13A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 13A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 27.20mm x 22.15mm | -20°C ~ 105°C | - |
|
GR-2023B-0003SWITCH ROCKER DPDT 8A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 8A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 27.20mm x 22.15mm | -20°C ~ 105°C | - |
|
|
300SP2R6BLKM2QEBLKSWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300SP2R6BLKM1QEBLKSWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300AWSP3J1BLKM6QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP1R6WHTM1QEBLKSWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300AWDP4R1BLKM1RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
300A | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|
300AWSP1J1BLKM7QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300SP1R6BLKM1REBLKSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|

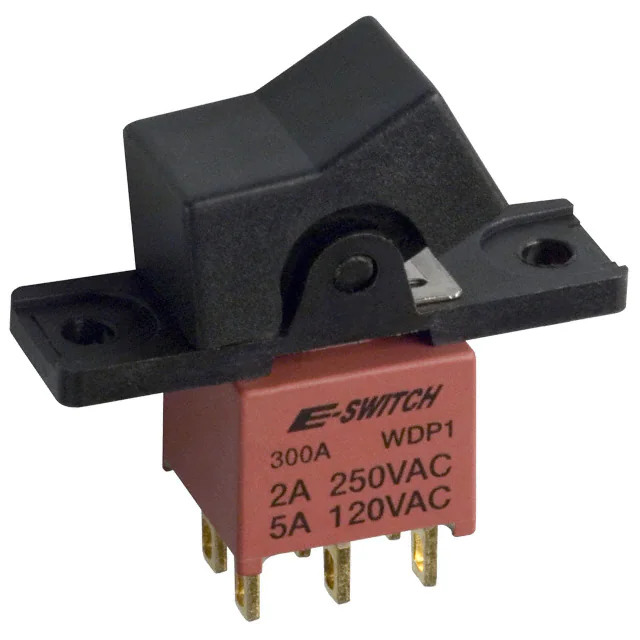

300AWDP1R1BLKM1QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300A | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|
|
300SP1R6BLKM2REBLKSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300SP1R7BLKM2REBLKSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
RSCA211-RB-B-0-NSWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RSC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
RSCA201-RB-B-0-NSWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RSC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
