Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R1966AWHTWHTFFSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R1973BBLKYELEF1SWITCH ROCKER DPST 9A 125V |
0 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Yellow | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
|
RA456C112Z73SWITCH ROCKER DPDT 16A 125V |
0 |
|
Datasheet |
RA4, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | II OFF I | - | - | Solder Lug | - | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, UL |
|
|
R5CBLKBLKFF0SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
GRS-2013B-0004SWITCH ROCKER SPDT 8A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
|
RB24KC228Z98SWITCH ROCKER DPDT 16A 125V |
0 |
|
- |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 16A (AC) | 125 V | - | Concave (Curved) | White | Flame Symbol | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
|
RB242D1021-114SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|

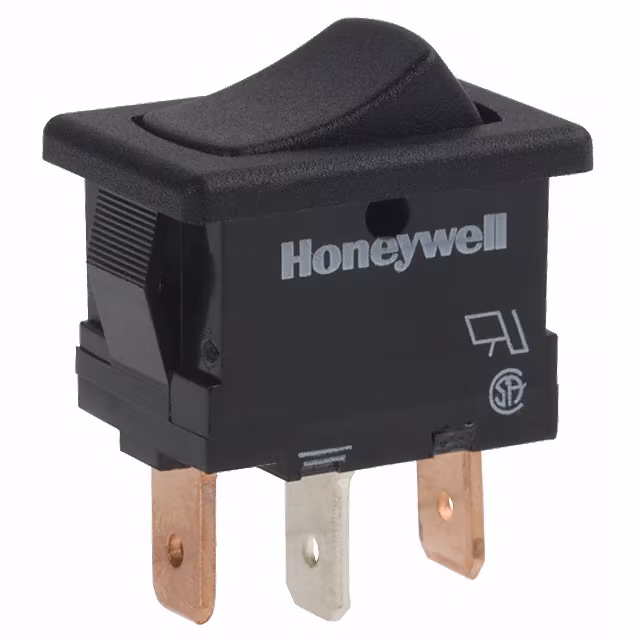

MRS93-17BBSWITCH ROCKER SPDT 8A 125V |
0 |
|
Datasheet |
MRS | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | - |
|
|
R1966CBLKBLKFPSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
|
RB14DC112SSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
|
MRS93-11BBSWITCH ROCKER SPDT 8A 125V |
0 |
|
Datasheet |
MRS | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | - |
|

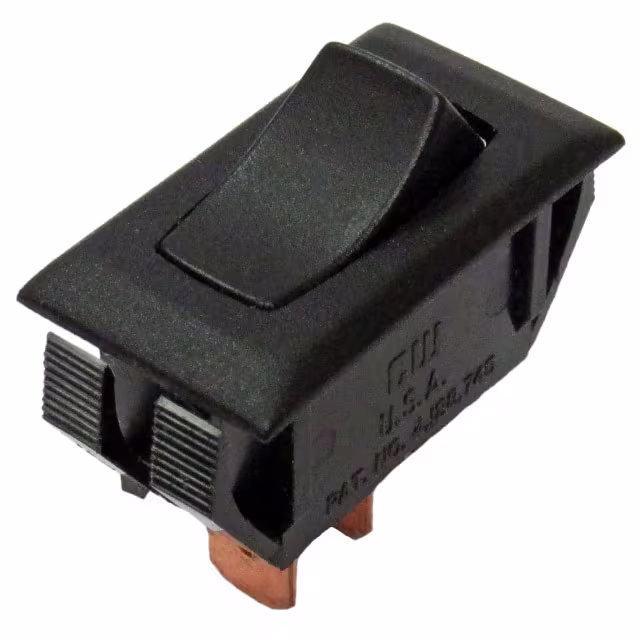

GRS-2011B-2001SWITCH ROCKER SPST-NO 8A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

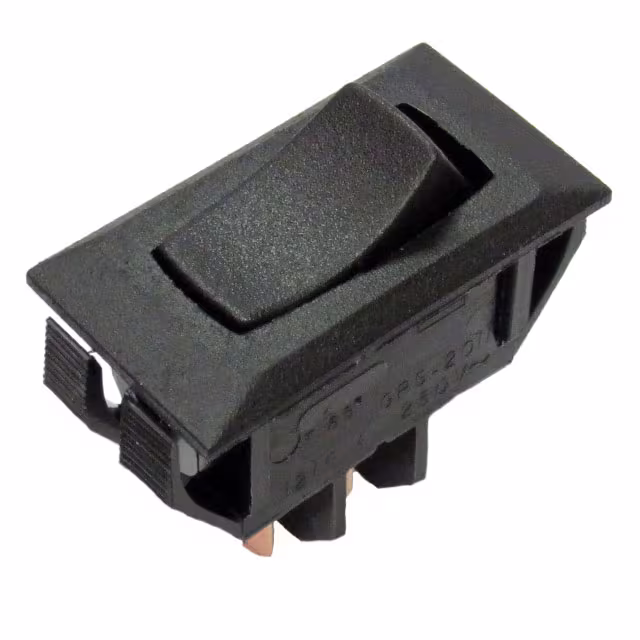

GRS-2011B-2003SWITCH ROCKER SPST-NO 13A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

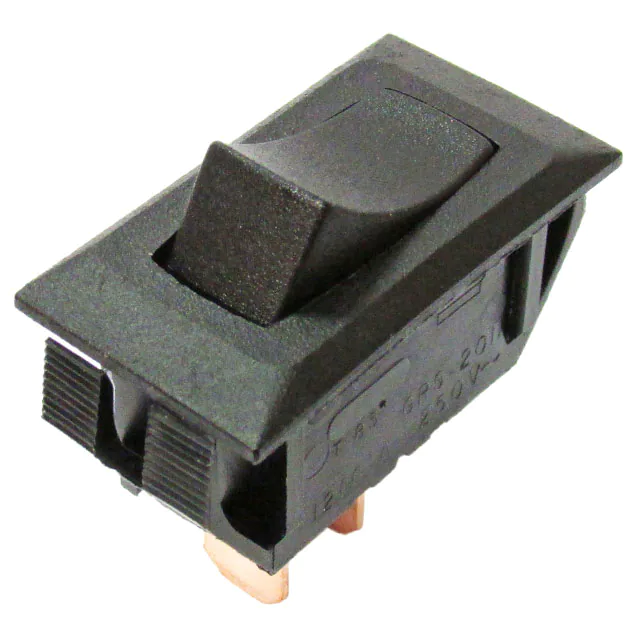

GRS-2011C-2001SWITCH ROCKER SPST-NC 8A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST-NC | On-Mom | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

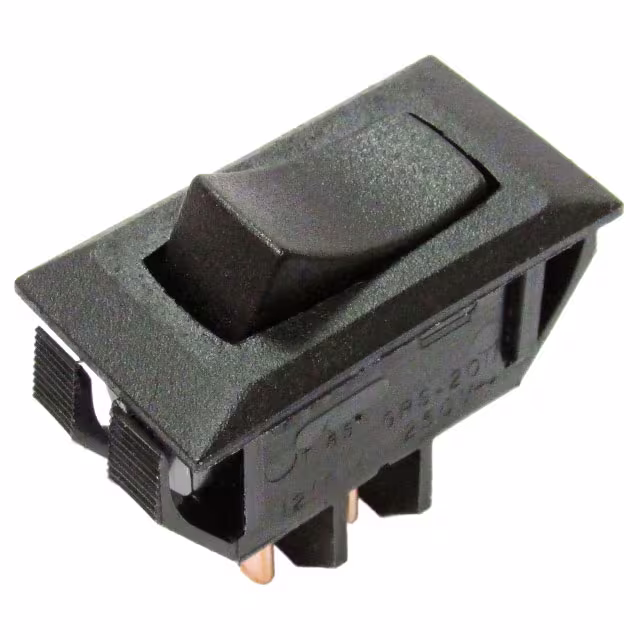

GRS-2011C-2003SWITCH ROCKER SPST-NC 13A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST-NC | On-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
|
R4BBLKREDREDEF1SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|

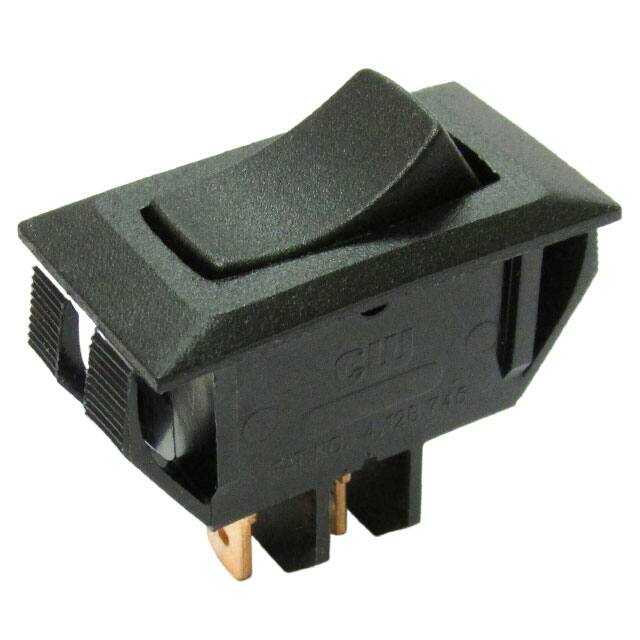

GRS-2011B-2014SWITCH ROCKER SPST-NO 13A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
|
GRS-4012-0020SWITCH ROCKER SPDT 8A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 8A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Polarized, Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
|
RW2125TAACN2SWITCH ROCKER DPST 20A 120V |
0 |
|
Datasheet |
RW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 120 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Clear | 250 VAC | Solder, Quick Connect - 0.250" (6.3mm) | IP40 | - | Rectangular - 30.20mm x 22.25mm | -30°C ~ 80°C | cULus |
|
|
RW2125TCWCN2SWITCH ROCKER DPST 20A 120V |
0 |
|
Datasheet |
RW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 120 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Clear | 250 VAC | Solder, Quick Connect - 0.250" (6.3mm) | IP40 | - | Rectangular - 30.20mm x 22.25mm | -30°C ~ 80°C | cULus |
