Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

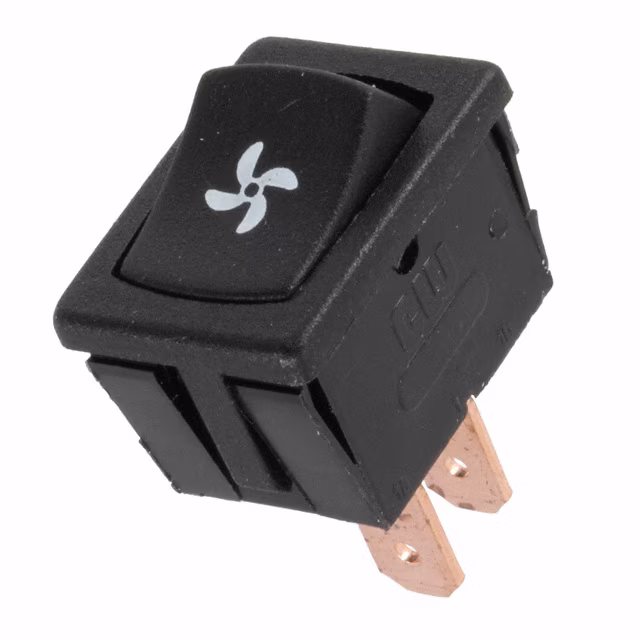

GRS-4011-0148SWITCH ROCKER SPST 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 13A (AC) | 125 V | - | Concave (Curved) | Black | Fan | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
SW-R1-3A-E-Y2-0SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Amber | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 21.50mm | -25°C ~ 85°C | - |
|
|
SW-R1-3A-E-G2-0SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Green | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 21.50mm | -25°C ~ 85°C | - |
|
|
SW-R1-3A-E-B2-0SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Blue | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 21.50mm | -25°C ~ 85°C | - |
|
|
SW-R1-3A-E-W2-0SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | White | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 21.50mm | -25°C ~ 85°C | - |
|
RR812C1100SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
RR8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
|
RA11131011-107SWITCH ROCKER SPST 11A 125V |
0 |
|
- |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 11A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear | O - | Neon, Clear | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
|
RE111C1021-134Switches |
0 |
|
Datasheet |
RE1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | Off-Mom | 16A (AC) | 125 V | - | Oval - Illuminated | Red | O - | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 20.40mm x 13.50mm | -20°C ~ 105°C | - |
|
RSC141C1000-126SWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | No Marking | Neon, Amber | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 13.90mm | -20°C ~ 105°C | CSA, UL |
|
|
RA81131000-116SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
|
RA812C2100SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
|
RA812C1200SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
|
RA412C1211Switches |
0 |
|
Datasheet |
RA4, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | Off-Mom | 16A (AC) | 125 V | - | Concave (Curved) | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, UL |
|

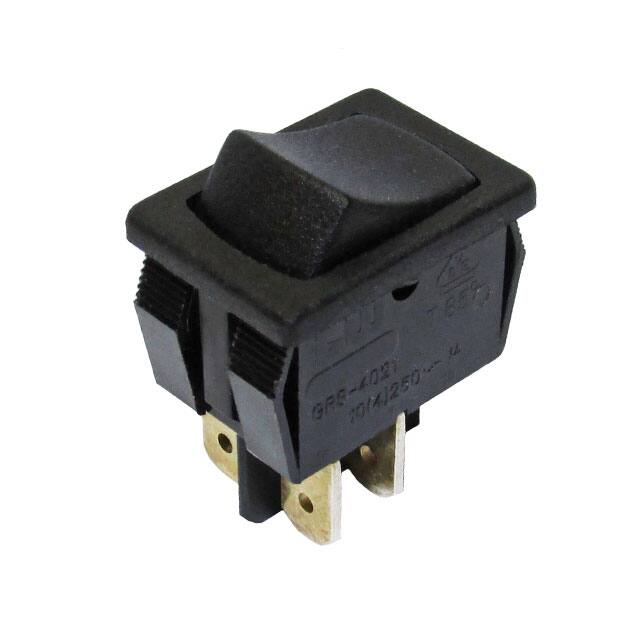

GRS-4021C-0002SWITCH ROCKER DPST-NC 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Obsolete | Panel Mount, Snap-In | DPST-NC | On-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-2011-2401SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
|
GRS-4013C-0007SWITCH ROCKER SPDT 8A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

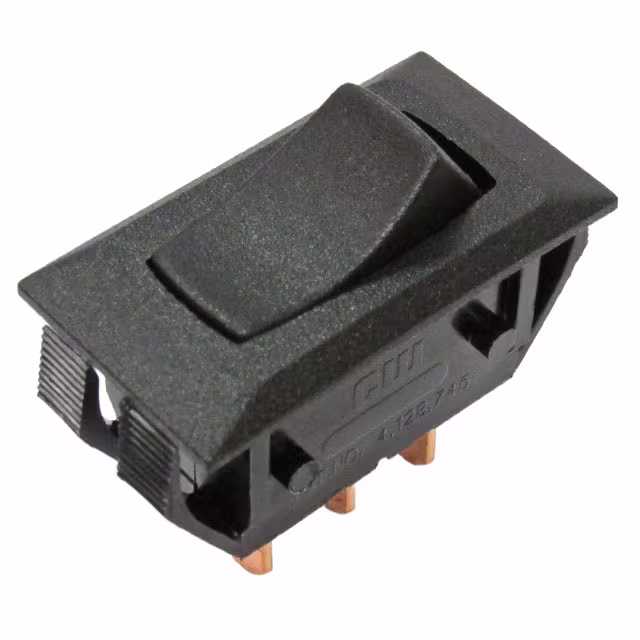

GRS-2012-2014SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Polarized | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

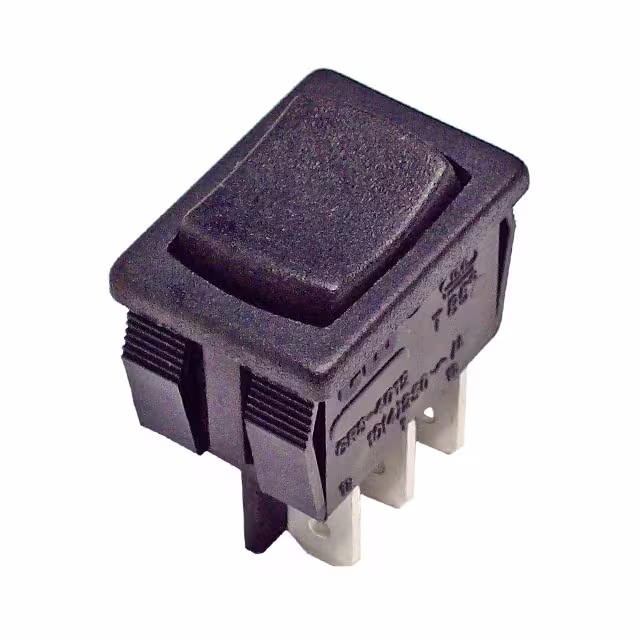

GRS-4012-0002SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
|
GRS-4012-0017SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

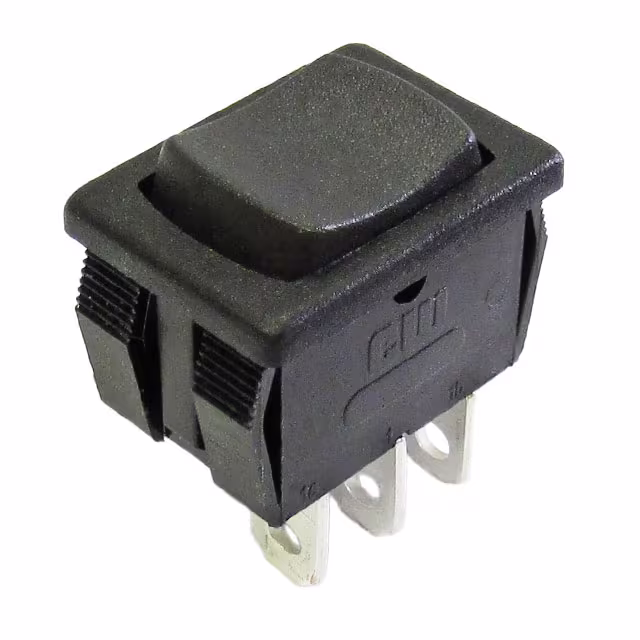

GRS-4013C-0004SWITCH ROCKER SPDT 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
