Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GRS-2011-2054SWITCH ROCKER SPST 13A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 13A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

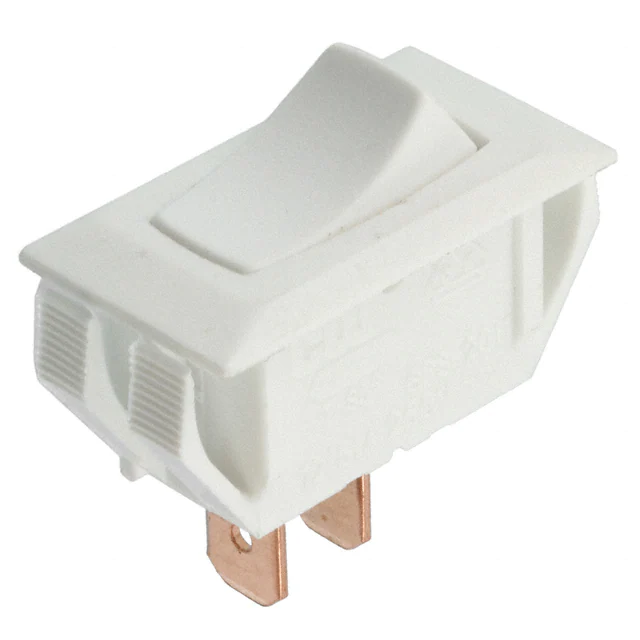

GRS-2011-2058SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

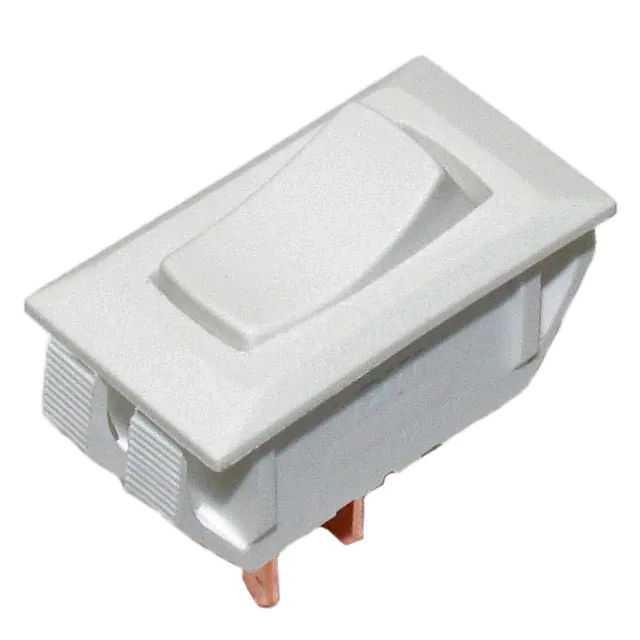

GRS-2011-2092SWITCH ROCKER SPST 8A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
GRS-2011-3011SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Gray | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.23mm x 12.19mm | -20°C ~ 105°C | - |
|

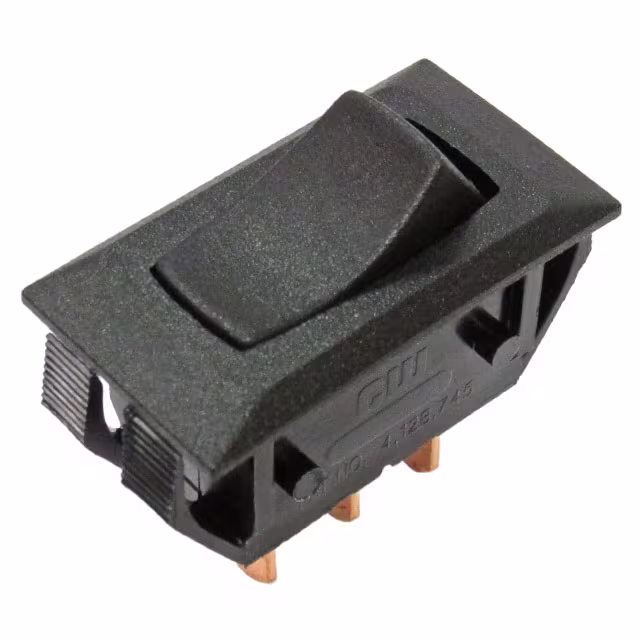

GRS-2012-2003SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Polarized | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

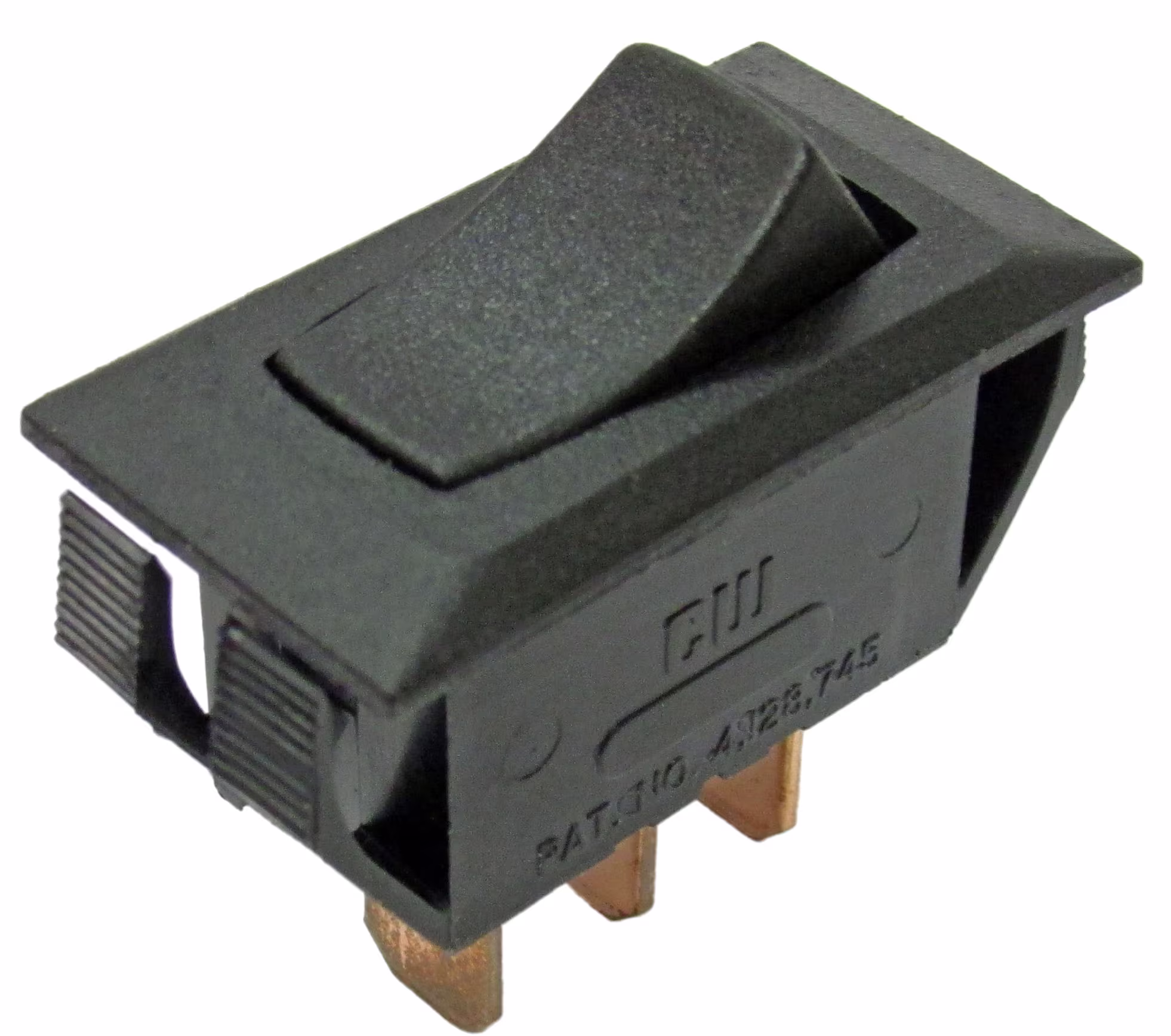

GRS-2012-3001SWITCH ROCKER SPDT 13A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.23mm x 12.19mm | -20°C ~ 105°C | - |
|
GRS-2012-3002SWITCH ROCKER SPDT 8A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.23mm x 12.19mm | -20°C ~ 105°C | - |
|

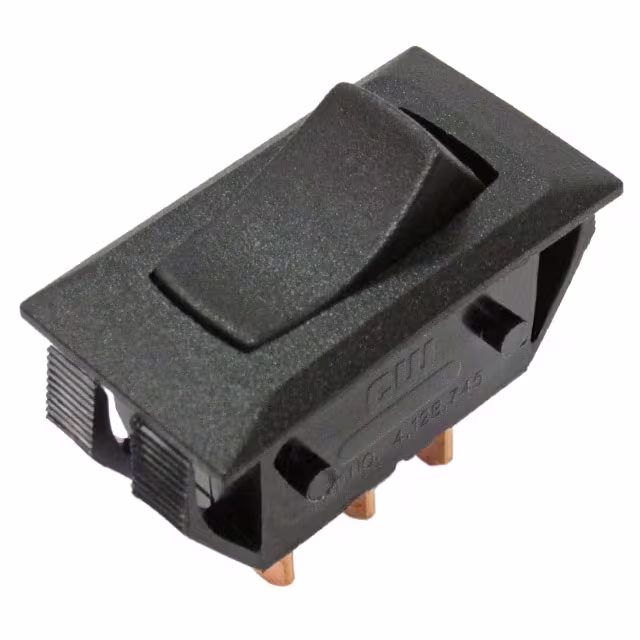

GRS-2012-3003SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Polarized | Rectangular - 27.23mm x 12.19mm | -20°C ~ 105°C | - |
|

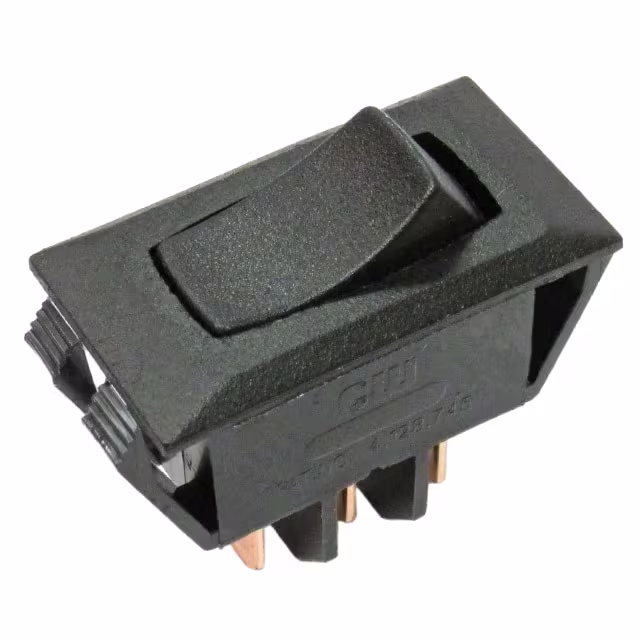

GRS-2012-3004SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 27.23mm x 12.19mm | -20°C ~ 105°C | - |
|
GRS-4011-0008SWITCH ROCKER SPST 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4011-0031SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4011-0052SWITCH ROCKER SPST 8A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4013A-0001SWITCH ROCKER SPDT 8A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

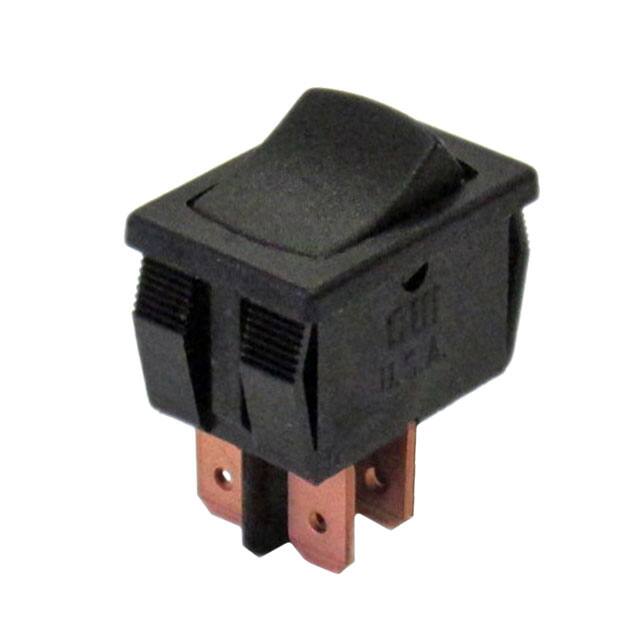

GRS-4021-0000SWITCH ROCKER DPST 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4021-0001SWITCH ROCKER DPST 8A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
|
RR11131100-244SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
RR1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Black | No Marking | LED, Blue | 12 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|
|
SW-R2-1A-F-LG13-5SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Green | O - | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
|
SW-R2-4E-S-W5-1SWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | - | -25°C ~ 85°C | - |
|
|
SW-R2-4E-S-W6-1SWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | Red | I O II | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | - | -25°C ~ 85°C | - |
|
|
SW-R2-1A-F-LB13-5SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Blue | O - | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
