Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A12KB1-CASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A12KB-CASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A12KB1-CGSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Blue | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
M2012TYW01-JCSWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
G18KP-YBSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
|
G18KP-YCSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
|
G18KP-YASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
M2028TNW03-GASWITCH ROCKER DPDT 6A 125V |
4 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Flange | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
A19K1BSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
M2024TYW01SWITCH ROCKER SP3T 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
M2018TNG01SWITCH ROCKER SPDT 0.4VA 28V |
1 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
A13KB1-CASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
JWS11RAADSWITCH ROCKER SPST 6A 125V |
0 |
|
Datasheet |
JWS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Amber | 2 VDC | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 50°C | CSA, UL, VDE |
|
|
JWS11RCASWITCH ROCKER SPST 6A 125V |
0 |
|
Datasheet |
JWS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
A12KH-CASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Box | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A12KH-CGSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Blue | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

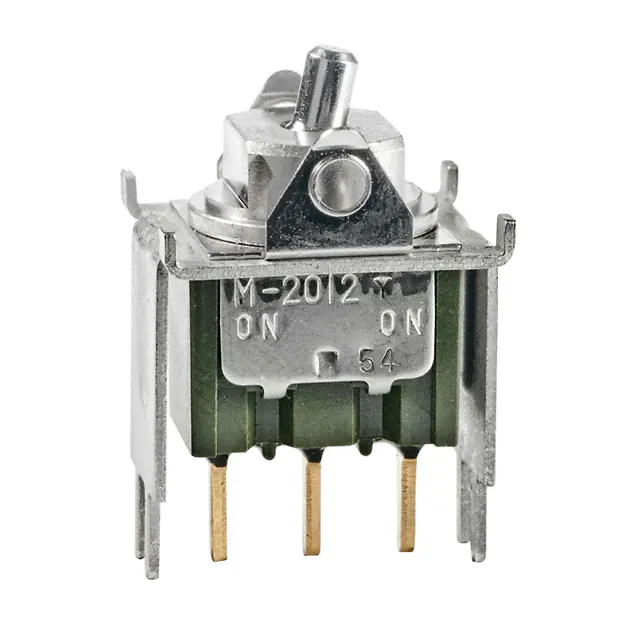

M2012TZG13SWITCH ROCKER SPDT 0.4VA 28V |
21 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

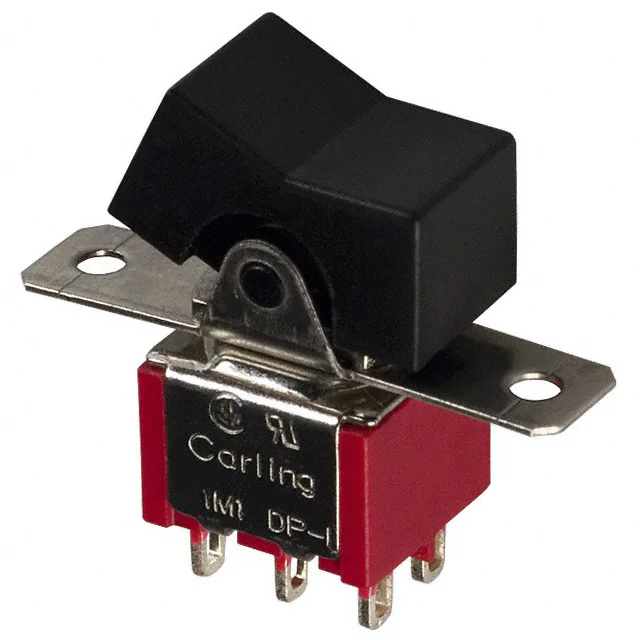

1M1-DP1-R1/2-M1QESWITCH ROCKER DPDT 5A 125V |
84 |
|
Datasheet |
1M1 | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

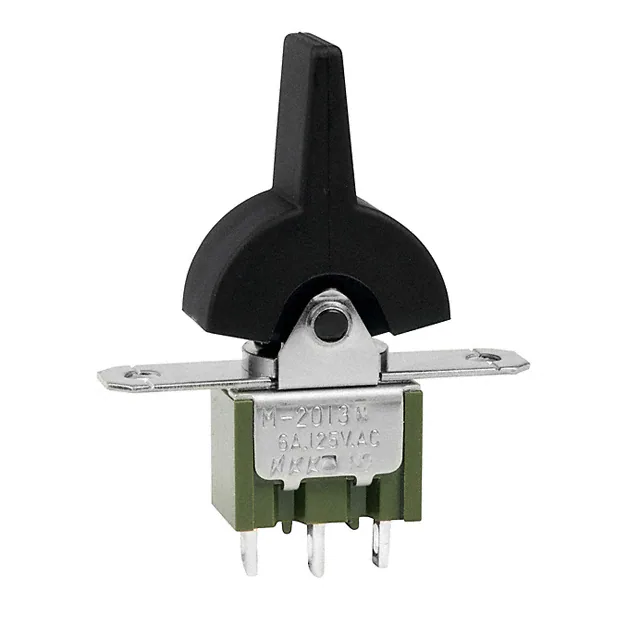

M2013TNW01-EASWITCH ROCKER SPDT 6A 125V |
49 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
M2012TXW15-DASWITCH ROCKER SPDT 6A 125V |
37 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
