Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WR12ALSWITCH ROCKER SPDT 15A 125V |
23 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

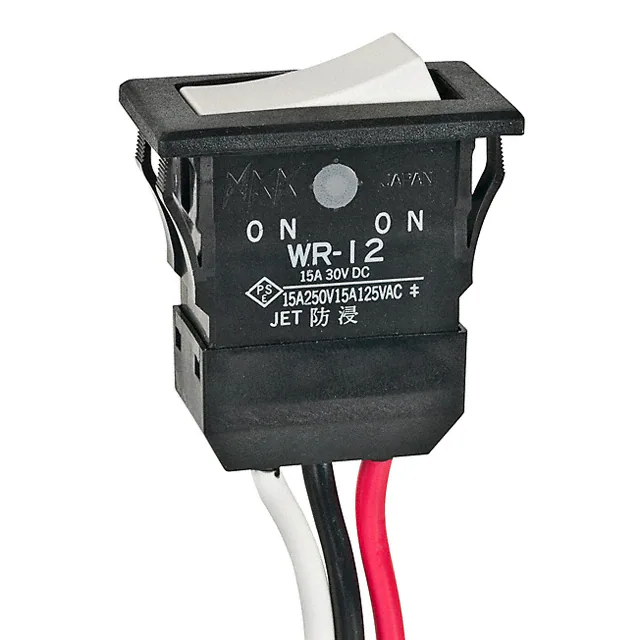

WR12BLSWITCH ROCKER SPDT 15A 125V |
13 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
58027-18SWITCH ROCKER DPDT 15A 24V |
68 |
|
Datasheet |
58027 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 15A (DC) | - | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.83mm x 21.08mm | - | - |
|
LRA32H2FBALNSWITCH ROCKER DPST 10A 125V |
434 |
|
- |
LR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | - | - | - | - | - | - | Neon, Amber | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | - | CE, cULus, VDE |
|
GRS-4021B-0001SWITCH ROCKER DPST-NO 8A 125V |
231 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
RA111C1021-136SWITCH ROCKER SPST 16A 125V |
44 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|

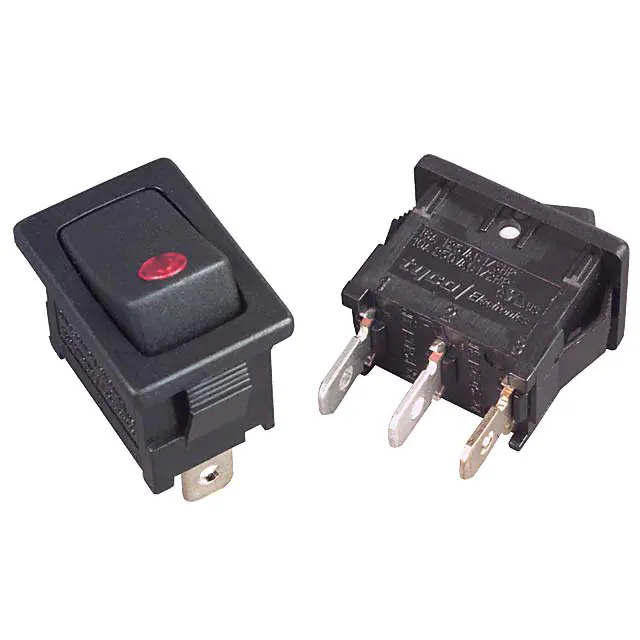

PRASB2-16F-BBR00SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
PRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Neon, Red | 110 VAC | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | ENEC, UL, VDE |
|
RF1-1D-DC-2-B-4SWITCH ROCKER SPDT 10A 125V |
96 |
|
Datasheet |
RF1 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16 (AC), 16 (DC) | 125 V | 12 V | Concave (Curved) | Black | I II | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -25°C ~ 85°C | CSA, cURus, ENEC |
|
RF1-1F-DC-2-B-5SWITCH ROCKER SPDT 10A 125V |
93 |
|
Datasheet |
RF1 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16 (AC), 16 (DC) | 125 V | 12 V | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -25°C ~ 85°C | CSA, cURus, ENEC |
|
CF-LD-1DC6-AW2WSWITCH ROCKER SPDT 0.4VA 28V |
92 |
|
Datasheet |
CF-LD | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | White | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | - |
|
|
FMC98A2600004SWITCH ROCKER SPDT 6A 250V |
0 |
|
Datasheet |
FM | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 6A (AC) | 250 V | - | Concave (Curved) | Red | I O II | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 85°C | UL |
|
RAS1R202M6QESSWITCH ROCKER SPDT 3A 120V |
58 |
|
Datasheet |
- | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Process Sealed | - | -30°C ~ 85°C | - |
|
REDROCKER5VSWITCH ROCKER SPDT 10A 125V |
26 |
|
- |
- | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 10A (AC), 20A (DC) | 125 V | 12 V | Convex (Reverse V) - Illuminated | - | O - | LED, Red | 2 VDC | Quick Connect | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.50mm x 13.00mm | - | - |
|

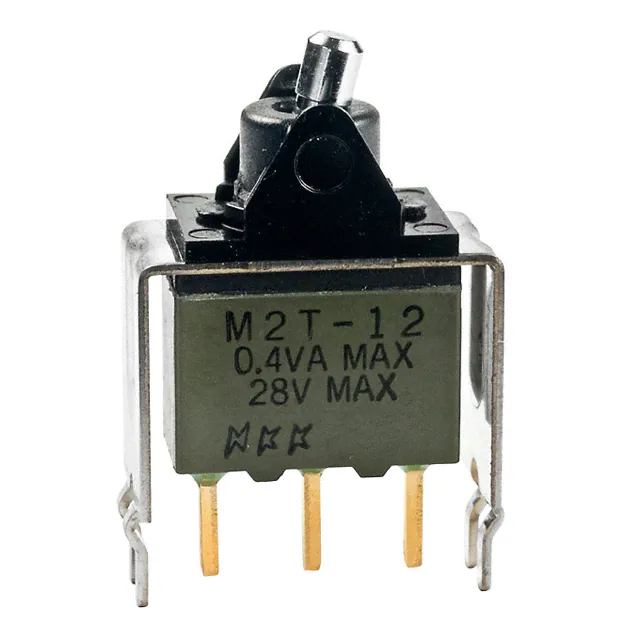

M2T12TXG13SWITCH ROCKER SPDT 0.4VA 28V |
96 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

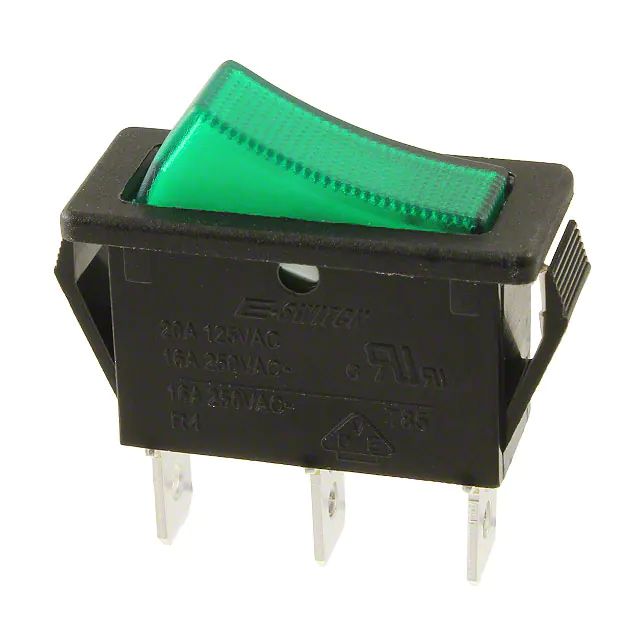

R4JBLKGILEF2SWITCH ROCKER SPST 20A 125V |
87 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
C1520AABB-730WSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
|
CWSA11AANHSWITCH ROCKER SPST 6A 250V |
0 |
|
Datasheet |
CWSA | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|
|
FMC18A2600002SWITCH ROCKER SPST 6A 250V |
0 |
|
Datasheet |
FM | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 85°C | UL |
|
RA1-2D-DC-2-BSWITCH ROCKER DPDT 10A 125V |
87 |
|
Datasheet |
RA1 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16 (AC), 10 (DC) | 125 V | 28 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
|
CWSA11AAN2HSWITCH ROCKER SPST 6A 250V |
0 |
|
Datasheet |
CWSA | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
