Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DT22J3AS215HQA8SWITCH ROCKER DPST 8A 125V |
0 |
|
Datasheet |
DT | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | O I | Neon, Amber | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | CSA, UL, VDE |
|
|
DT22J3GS215QF7SWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
DT | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | CSA, UL, VDE |
|
|
DT22J3GS2AHQA7SWITCH ROCKER DPST 8A 125V |
0 |
|
Datasheet |
DT | Bulk | Obsolete | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O I | Neon, Green | 125 VAC | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | CSA, UL, VDE |
|
|
DT22J3RS215PQA8SWITCH ROCKER DPST 8A 125V |
0 |
|
Datasheet |
DT | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | CSA, UL, VDE |
|
E101J1ALE2SWITCH ROCKER SPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
E101J1AME2SWITCH ROCKER SPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
E101J1AV2KE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
E101J1V3LE2SWITCH ROCKER SPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
E101J1V3ME2SWITCH ROCKER SPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
E101J1V6ME2SWITCH ROCKER SPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
E103J1ALE2SWITCH ROCKER SPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
E103J1V3LE2SWITCH ROCKER SPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
E105J2V31KE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
E107J2V31KE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
E201J1AME2SWITCH ROCKER DPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
E201J1AV2LE2SWITCH ROCKER DPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
E213J60AV2KE2SWITCH ROCKER SP3T 0.4VA 20V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SP3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | cULus |
|
|
E301J1V4LE2SWITCH ROCKER 3PDT 5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | Through Hole | 3PDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
ET01J1CME2SWITCH ROCKER SPDT 3A 120V |
0 |
|
Datasheet |
ET | Tray | Obsolete | Through Hole | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|

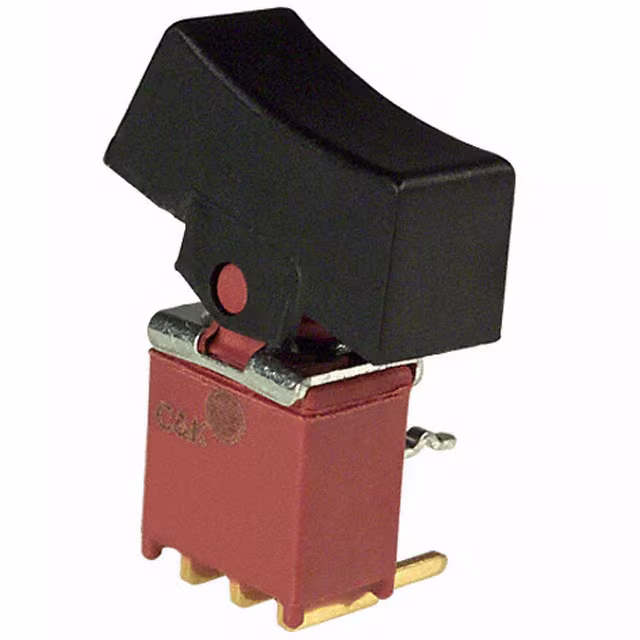

ET01J6ALE2SWITCH ROCKER SPDT 3A 120V |
0 |
|
Datasheet |
ET | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
