Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D501J12S205QFSWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
D501J12S215QFSWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
D502J12S105PQFSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
D502J12S206QFSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
D502J12S215DQFSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
D502J12S215QFSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
D502J12S2APQFSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
D502J12S2AQFSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
D601J12S202QFSWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
D601J12S215QFSWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
D601J13S215PQFSWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
D602J11S115PQFSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
D602J11S202PQFSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | White | O - | - | - | PC Pin | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
D602J11S206PQFSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | White | O - | - | - | PC Pin | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
D602J12S202PQFSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
D602J12S205HQFSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
D602J12S215QFSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
DA12J3GS215HQF6SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
DA | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O I | LED, Green | 1.85 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|
DF52J12G215HQFSWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
DF | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | Guard | Rectangular - 27.31mm x 12.50mm | -20°C ~ 85°C | cULus |
|

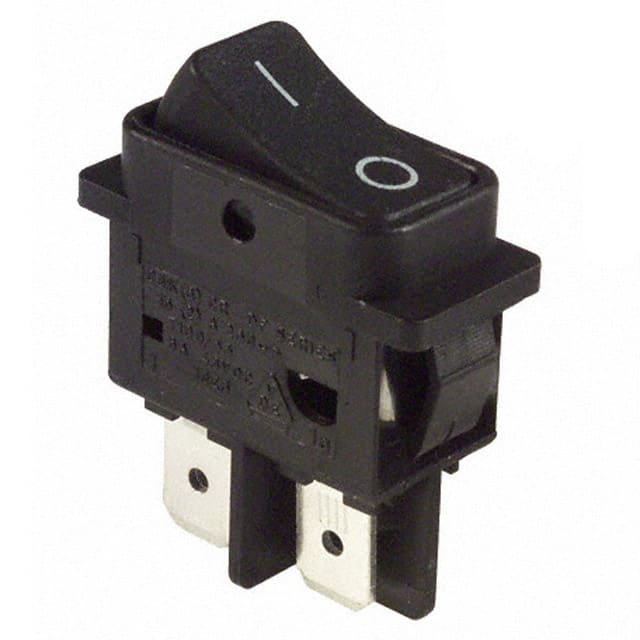

DF52J12P215PQFSWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
DF | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.31mm x 12.50mm | -20°C ~ 85°C | cULus |
