RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
453-00041RRF TXRX MODULE BT TRACE PIN SMD |
2,765 |
|
Datasheet |
BL653 | Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.1, Thread, Zigbee® | - | 2.402GHz ~ 2.48GHz | 2Mbps | 8dBm | -103dBm | ADC, GPIO, I2C, I2S, PDM, PWM, SPI, UART, USB | Trace Pin | nRF52833 | 512kB Flash, 128kB RAM | 1.7V ~ 5.5V | - | 4.9mA ~ 14.1mA | Surface Mount | -40°C ~ 105°C |
|
FGM230SA27HGN3RF TXRX MOD ISM<1GHZU.FL SMD |
795 |
|
Datasheet |
- | 48-SMD Module | Tray | Active | Not Verified | General ISM < 1GHz | Proprietary | FSK, GFSK, O-QPSK | 863MHz ~ 870MHz, 902MHz ~ 928MHz | 100kbps | 14.8dBm | -110dBm | GPIO, I2C, I2S, IrDA, JTAG, SPI, UART, USART | Antenna Not Included, U.FL | EFR32FG23 | 512kB Flash, 64kB RAM | 1.8V ~ 3.8V | 4.1mA ~ 7.5mA | 10.5mA ~ 47mA | Surface Mount | -40°C ~ 85°C |
|
BM78SPP05NC2-0002AARF TXRX MODULE BLUETOOTH SMD |
2,612 |
|
Datasheet |
- | 30-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 Dual Mode | - | 2.4GHz | - | 1.5dBm | -92dBm | I2C, UART | Antenna Not Included | - | - | 3.3V ~ 4.2V | 37mA | 43mA | Surface Mount | -20°C ~ 70°C |
|
NINA-B316-01BRF TXRX MOD 802.15.4 BT TH SMD |
3,039 |
|
Datasheet |
NINA-B3 | 55-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.0 | GFSK | 2.4GHz | 2Mbps | 8dBm | -100dBm | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | PCB Trace | nRF52840 | 1MB Flash, 256kB RAM | 1.7V ~ 3.6V | 4.8mA | 14.1mA | Surface Mount | -40°C ~ 85°C |
|
2612011022000RF TXRX MOD BT PCB TH SMD |
444 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.1 | - | 2.4GHz | 2Mbps | 4dBm | -93dBm | ADC, I2C, SPI, UART | PCB Trace | nRF52805 | 192kB Flash, 24kB RAM | 1.8V ~ 3.6V | 6.1mA ~ 6.8mA | 8mA ~ 9.3mA | Surface Mount | -40°C ~ 85°C (TA) |
|
ATWILC1000-MR110PB-TRF TXRX MOD WIFI TH SMD |
931 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | CCK, DSSS, OFDM | 2.412GHz ~ 2.472GHz | 54Mbps | 18.7dBm | -94dBm | I2C, SDIO, SPI, UART | Integrated, Trace | - | - | 1.8V ~ 3.6V | 63mA | - | Surface Mount | -40°C ~ 85°C |
|

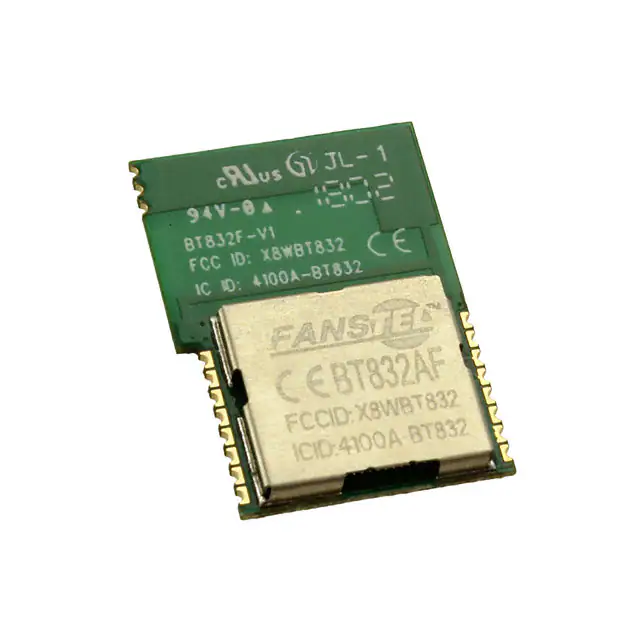

BT832AFRF TXRX MOD BT TH SMD |
9,081 |
|
Datasheet |
- | 16-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | 8Mbps | 4dBm | -96dBm | I2C, I2S, SPI, UART | Integrated, Trace | nRF52810 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
ATWINC3400-MR210UA143RF TXRX MOD BT WIFIU.FL SMD |
144 |
|
Datasheet |
ATWINC3400-MR210xA | 36-SMD Module | Tray | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK | 2.4GHz | 400kbps | 18.3dBm | -95dBm | I2C, SPI, UART | Antenna Not Included, U.FL | - | 256kB ROM, 420kB RAM | 2.7V ~ 3.6V | 23.7mA | 24mA | Surface Mount | -40°C ~ 85°C |
|

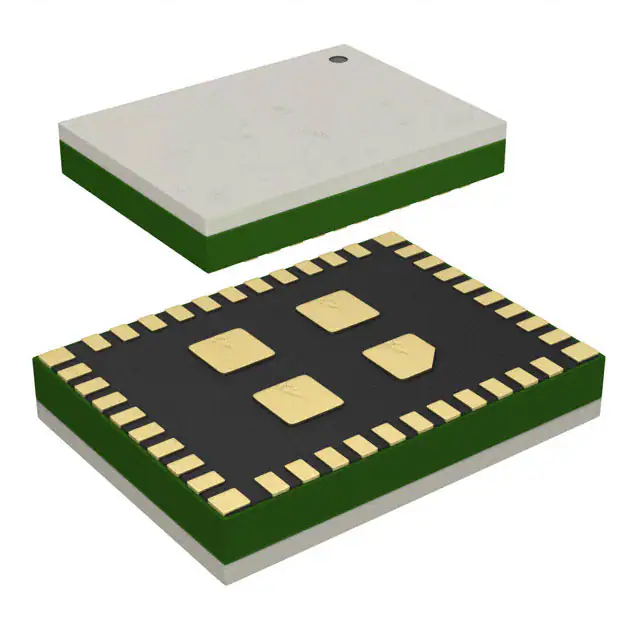

LBWA1KL1FX-875RF TXRX MODULE WIFI SMD |
20,128 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Not For New Designs | Not Verified | WiFi | 802.11b/g/n | CCK, DSSS, OFDM | 2.4GHz | 65Mbps | 17dBm | - | SDIO | Antenna Not Included | BCM43364 | - | 1.8V, 3.3V | - | - | Surface Mount | -30°C ~ 70°C |
|
ATWINC3400-MR210CA143RF TXRX MOD BT WIFI CHIP SMD |
159 |
|
Datasheet |
ATWINC3400-MR210xA | 36-SMD Module | Tray | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK | 2.4GHz | 400kbps | 18.3dBm | -95dBm | I2C, SPI, UART | Integrated, Chip | - | 256kB ROM, 420kB RAM | 2.7V ~ 3.6V | 23.7mA | 24mA | Surface Mount | -40°C ~ 85°C |
|
ENW-89854A1KFRF TXRX MOD BLUETOOTH CHIP SMD |
3,836 |
|
Datasheet |
PAN1780 | 74-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | - | 2Mbps | 8dBm | -103dBm | ADC, GPIO, I2C, PWM, SPI, UART | Integrated, Chip | nRF52840 | 1MB Flash, 256kB RAM | 1.7V ~ 5.5V | 4.8mA | 4.8mA | Surface Mount | -40°C ~ 85°C |
|
ATWINC1500-MR210UB1954RF TXRX MOD WIFI CHIP + U.FL SMD |
1,057 |
|
Datasheet |
SmartConnect | 28-SMD Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 18.5dBm | -95dBm | I2C, SPI, UART | Integrated, Chip + U.FL | ATWINC1500B | 4MB Flash, 128kB RAM | 2.7V ~ 3.6V | 61mA | 265mA | Surface Mount | -40°C ~ 85°C |
|

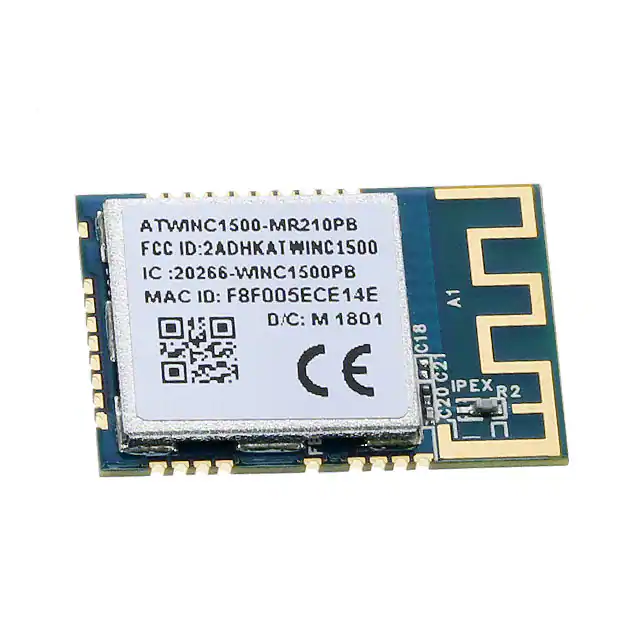

ATWINC1500-MR210PB1952RF TXRX MOD WIFI TH SMD |
633 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 18.5dBm | -95dBm | I2C, SPI, UART | Integrated, Trace | ATWINC1500B | 4MB Flash, 128kB RAM | 2.7V ~ 3.6V | 61mA | 265mA | Surface Mount | -40°C ~ 85°C |
|
|
ATWINC3400-MR210UA143-TRF TXRX MOD BT WIFIU.FL SMD |
493 |
|
Datasheet |
ATWINC3400-MR210xA | 36-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK | 2.4GHz | 400kbps | 18.3dBm | -95dBm | I2C, SPI, UART | Antenna Not Included, U.FL | - | 256kB ROM, 420kB RAM | 2.7V ~ 3.6V | 23.7mA | 24mA | Surface Mount | -40°C ~ 85°C |
|
BM78SPP05MC2-0004AARF TXRX MODULE BLUETOOTH SMD |
414 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 Dual Mode | - | 2.4GHz | - | 1.5dBm | -92dBm | I2C, UART | Antenna Not Included | - | - | 3.3V ~ 4.2V | 37mA | 43mA | Surface Mount | -20°C ~ 70°C |
|
BM78SPP05MC2-0002AARF TXRX MODULE BLUETOOTH SMD |
128 |
|
Datasheet |
- | 30-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 Dual Mode | - | 2.4GHz | - | 1.5dBm | -92dBm | I2C, UART | Antenna Not Included | - | - | 3.2V ~ 4.2V | 37mA | 43mA | Surface Mount | -20°C ~ 70°C |
|
BM20SPKA1NBC-0001AARF TXRX MOD BT TH SMD |
656 |
|
Datasheet |
- | 40-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v4.1 | - | 2.4GHz | - | 4dBm | -91dBm | UART | Integrated, Trace | - | - | 3V ~ 4.2V | - | - | Surface Mount | -20°C ~ 70°C |
|
BGM11S22F256GA-V2RF TXRX MOD BLUETOOTH CHIP SMD |
3,864 |
|
Datasheet |
Blue Gecko | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v4.2 | GFSK | 2.4GHz | 1Mbps | 8dBm | -90dBm | I2C, SPI, UART | Integrated, Chip | EFR32BG | 256kB Flash, 32kB RAM | 1.85V ~ 3.8V | 8.7mA | 8.2mA | Surface Mount | -40°C ~ 85°C |
|
ATWINC1510-MR210PB1961RF TXRX MOD WIFI TH SMD |
1,429 |
|
Datasheet |
SmartConnect | 28-SMD Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 18.5dBm | -95dBm | I2C, SPI, UART | Integrated, Trace | ATWINC1500B | 8MB Flash, 128kB RAM | 2.7V ~ 3.6V | 61mA | 265mA | Surface Mount | -40°C ~ 85°C |
|
TCM515ZRF TXRX MOD 802.15.4 PCB TH SMD |
245 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4 | - | - | 2.4GHz | - | 2dBm | -95dBm | UART | PCB Trace | - | - | 2.97V ~ 3.63V | 15mA | 20mA | Surface Mount | -25°C ~ 85°C |
