RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EM7595_1105202RF TXRX MOD CEL/NAV CARD |
83 |
|
Datasheet |
EM759X | Module | Tray | Active | - | Cellular, Navigation | Beidou, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, QZSS, UMTS | 8PSK, 64-QAM, 265-QAM | 1.561GHz, 1.575GHz, 1.602GHz | 600Mbps | 24dBm | -161dBm | GPIO, USB | Antenna Not Included | PMD9655 | - | 3.135V ~ 4.4V | 2.8mA ~ 37mA | - | Card Edge | -40°C ~ 85°C (TA) |
|
|
RM500UEAAA-D10-SNADALinear IC |
75 |
|
Datasheet |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | UDX710M1 | - | - | - | - | - | - |
|
K-MC1-RFB-00DRF TXRX MOD RADAR CER PATCH CHAS |
59 |
|
Datasheet |
K-MC | Module | Box | Active | Not Verified | Radar | - | FMCW, FSK | 24.05GHz ~ 24.25GHz | - | 16.5dBm | -141dBc | - | Integrated, Ceramic Patch | - | - | 4.8V ~ 5.2V | 90mA | 90mA | Chassis Mount | -20°C ~ 85°C |
|
XTP9B-DMM-001RF TXRX MOD ISM<1GHZMMCX SMD |
41 |
|
Datasheet |
XTend® | Module | Tray | Active | Not Verified | General ISM < 1GHz | - | FSK | 902MHz ~ 928MHz | 125kbps | 30dBm | -110dBm | UART | Antenna Not Included, MMCX | - | - | 2.8V ~ 5.5V | 35mA | 710mA | Surface Mount | -40°C ~ 85°C |
|
SIM8202G-M2RF TXRX MOD CELLULARCARD EDGE |
299 |
|
- |
- | Module | Tray | Active | Not Verified | Cellular | LTE, WCDMA | - | - | 2.4Gbps | - | - | I2C, SPI, PCM, UART, USB | Antenna Not Included | - | - | 3.135V ~ 4.4V | - | - | Card Edge | -30°C ~ 70°C |
|
ADRV9008BBCZ-1RF TXRX MODULE CELL SMD |
17 |
|
Datasheet |
- | 196-LFBGA, CSPBGA | Tray | Active | Not Verified | Cellular | - | - | 75MHz ~ 6GHz | 12.3Gbps | - | - | JTAG, SPI | - | - | - | 1.3V ~ 1.8V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
RM520NEUDA-M20-SGASARF TXRX MOD CELLULAR CARD EDGE |
190 |
|
Datasheet |
- | Module | Tray | Active | - | Cellular | 5G, LTE, WCDMA | - | 6GHz | 3.4Gbps | - | - | USB | Antenna Not Included | SDX62-0-AA | - | 3.135V ~ 4.4V | - | - | Card Edge | -30°C ~ 75°C |
|

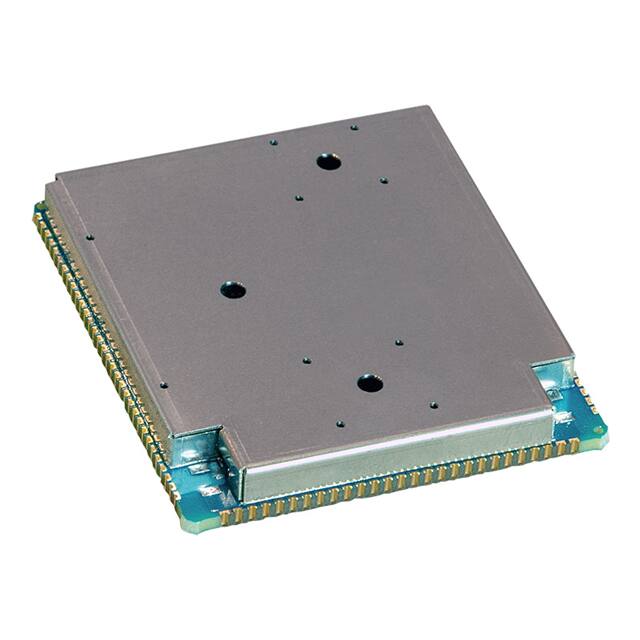

CC-WMX-JM8E-NNRF TXRX MOD BLUETOOTH WIFISMD |
111 |
|
Datasheet |
ConnectCore® 8X | Module | Tray | Active | Not Verified | Bluetooth, WiFi | 802.11a/b/g/n, Bluetooth v5.0 | - | 2.412GHz ~ 2.484GHz, 4.9GHz ~ 5.85GHz | 200Mbps | 17dBm | - | ADC, GPIO, I2C, I2S, PCIe, SDIO, SPI, JTAG, UART, USB | Antenna Not Included | - | 16GB Flash, 2GB DRAM | - | - | - | Surface Mount | -40°C ~ 85°C |
|
ESP32-S2R2RF TXRX MODULE WIFI SMD |
11,630 |
|
Datasheet |
ESP32 | 56-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 150Mbps | 19.5dBm | -97dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | Antenna Not Included | ESP32-S2 | 2MB PSRAM, 128kB ROM, 320kB SRAM | 2.8V ~ 3.6V | 63mA ~ 68mA | 160mA ~ 310mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP32-S2-MINI-2U-N4RF TXRX MODULE WIFI U.FL SMD |
446 |
|
Datasheet |
ESP32 | 56-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 150Mbps | 19.5dBm | -97dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | Antenna Not Included, U.FL | ESP32-S2FH4 | 4MB Flash, 128kB ROM, 336kB SRAM | 3V ~ 3.6V | 63mA ~ 68mA | 160mA ~ 310mA | Surface Mount | -40°C ~ 105°C (TA) |
|
NORA-W256AWS-00BRF TXRX MOD BT WIFI PCB TH SMD |
7,983 |
|
Datasheet |
NORA-W2 | 82-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | CCK, DSSS, GFSK, OFDM | 2.4GHz | 72Mbps | 20dBm | -105dBm | SPI | PCB Trace | ESP32-S3 | 8MB Flash, 384kB ROM, 512kB SRAM | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
LILY-W133-10BRF TXRX MODULE WIFI CHIP SMD |
2,518 |
|
Datasheet |
LILY-W1 | 37-SMD Module | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | - | 2.412GHz ~ 2.472GHz | 72.2Mbps | 19dBm | -97dBm | SDIO, USB | Integrated, Chip | 88W8801 | - | 3V ~ 3.6V | 82mA ~ 84mA | 260mA ~ 340mA | Surface Mount | -40°C ~ 85°C |
|

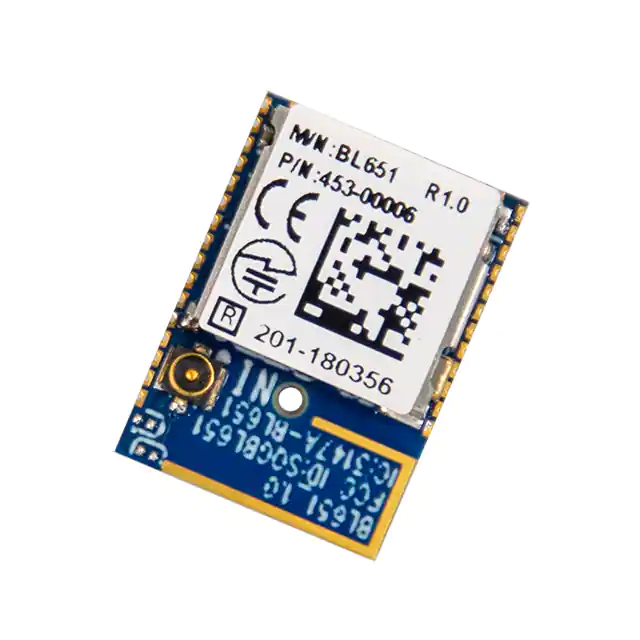

453-00006RF TXRX MOD BTIPEX MHF4 SMD |
5,793 |
|
Datasheet |
BL651 | 39-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.402GHz ~ 2.48GHz | 2Mbps | 4dBm | -96dBm | ADC, GPIO, I2C, PWM, SPI, UART | Antenna Not Included, I-PEX MHF4 | nRF52810 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 4.6mA | 7mA | Surface Mount | -40°C ~ 85°C |
|
453-00084RRF TXRX MOD BT I CHIP MHF4 SMD |
2,208 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.2 | - | 2.4GHz | 54Mbps | 18dBm | -94dBm | SDIO, UART | Integrated, Chip, MHF4 | CYW43439 | - | 2.97V ~ 3.63V | - | 301mA | Surface Mount | -40°C ~ 85°C |
|
CYBLE-343072-02RF TXRX MOD BT TH SMD |
830 |
|
Datasheet |
AIROC™ Bluetooth® | 43-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.2 | GFSK | 2.4GHz | 6Mbps | 12dBm | -94.5dBm | ADC, I2C, PWM, SPI, UART | Integrated, Trace | CYW20835 | 512kB Flash, 384kB RAM | 2.5V ~ 3.6V | 8mA | 18mA | Surface Mount | -30°C ~ 85°C |
|
MAYA-W161-00BRF TXRX MOD BLUETOOTH WIFISMD |
337 |
|
Datasheet |
MAYA-W1 | 76-LGA Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11a/b/g/n, Bluetooth v5.2 +EDR, Class 1 and 2 | 16-QAM, 64-QAM, BPSK, CCK, DSSS, OFDM | 2.4GHz, 5GHz | 150Mbps | 18dBm | - | GPIO, I2S, SDIO, PCM, UART | Antenna Not Included | IW416 | - | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
RN4870U-V/RM118RF TXRX MODULE BLUETOOTH SMD |
442 |
|
Datasheet |
- | 30-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 | GFSK | 2.4GHz | - | 0dBm | -90dBm | UART | Antenna Not Included | - | - | 1.9V ~ 3.6V | 13mA | 13mA | Surface Mount | -20°C ~ 70°C |
|
|
BM71BLE01FC2-0B04AARF TXRX MOD BT CAST SMD |
163 |
|
Datasheet |
- | 17-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 0dBm | -90dBm | UART | Antenna Not Included, Castellation | - | - | 1.9V ~ 3.6V | 13mA | 13mA | Surface Mount | -40°C ~ 85°C |
|
MAYA-W160-00BRF TXRX MOD BT WIFIU.FL SMD |
856 |
|
Datasheet |
MAYA-W1 | 76-LGA Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11a/b/g/n, Bluetooth v5.2 +EDR, Class 1 and 2 | 16-QAM, 64-QAM, BPSK, CCK, DSSS, OFDM | 2.4GHz, 5GHz | 150Mbps | 18dBm | - | GPIO, I2S, SDIO, PCM, UART | Antenna Not Included, U.FL | IW416 | - | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
453-00060RRF TXRX MOD BT TRACE SMD |
3,882 |
|
- |
BL653µ | 53-SMD Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.1, Thread | - | 2.402GHz ~ 2.48GHz | 2Mbps | 8dBm | -103dBm | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, USB, UART | Integrated, Trace | - | - | 1.7V ~ 3.6V | 4.6mA ~ 5.2mA | 2.3mA ~ 14.2mA | Surface Mount | -40°C ~ 85°C |
