RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-WROVER-IE-N16R8RF TXRX MOD BT WIFIIPEX SMD |
8,759 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, SPI, UART | Antenna Not Included, I-PEX | ESP32-D0WD-V3 | 16MB Flash, 8MB SRAM | 2.3V ~ 3.6V | 80mA | 80mA | Surface Mount | -40°C ~ 85°C |
|
ESP32-WROVER-E-N16R8RF TXRX MOD BT WIFI PCB TH SMD |
7,130 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, SPI, UART | PCB Trace | ESP32-D0WD-V3 | 16MB Flash, 8MB SRAM | 2.3V ~ 3.6V | 80mA | 80mA | Surface Mount | -40°C ~ 85°C |
|
ESP32-S3-WROOM-1U-N8R2RF TXRX MOD BT WIFIU.FL SMD |
2,957 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | Antenna Not Included, U.FL | ESP32-S3R2 | 8MB Flash, 384kB ROM, 2MB SRAM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 85°C (TA) |
|
ESP32-S3-WROOM-1-N8R2RF TXRX MODULE WIFI PCB TRACE |
863 |
|
Datasheet |
ESP32-S3 | - | Strip | Active | Not Verified | WiFi | 802.11a/b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | - | - | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | PCB Trace | ESP32-S3 | 8MB Flash, 384kB ROM, 2MB SRAM | - | - | - | - | - |
|
ESP32-S3-WROOM-1-N16RF TXRX MOD BT WIFI PCB TH SMD |
1,366 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | PCB Trace | ESP32-S3 | 16MB Flash, 384kB ROM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP32-S3-WROOM-1U-N16RF TXRX MOD BT WIFIU.FL SMD |
465 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | Antenna Not Included, U.FL | ESP32-S3 | 16MB Flash, 384kB ROM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 85°C (TA) |
|
ESP32-PICO-MINI-02U-N8R2RF TXRX MOD BT WIFIU.FL SMD |
2,899 |
|
Datasheet |
ESP32 | 53-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | 8DPSK, DQPSK | 2.4GHz | 150Mbps | 19.5dBm | -97dBm | ADC, GPIO, I2C, I2S, SDIO, SPI, PWM, UART | Antenna Not Included, U.FL | ESP32-PICO-V3-02 | 8MB Flash, 2MB PSRAM | 3V ~ 3.6V | 111mA ~ 117mA | 248mA ~ 368mA | Surface Mount | -40°C ~ 85°C (TA) |
|
ESP32-PICO-MINI-02-N8R2RF TXRX MOD BT WIFI THCHAS MNT |
2,786 |
|
Datasheet |
ESP32 | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | - | 2.412GHz ~ 2.484GHz | - | 19.5dBm | - | I2C, I2S, SPI, UART | PCB Trace | ESP32 | 8MB Flash, 2MB PSRAM | 3V ~ 3.6V | - | - | Chassis Mount | -40°C ~ 85°C |
|
|
ESP32-S3-WROOM-1U-N8R8RF TXRX MOD BT WIFIU.FL SMD |
8,812 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | Antenna Not Included, U.FL | ESP32-S3R8 | 8MB Flash, 384kB ROM, 8MB SRAM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 65°C (TA) |
|
|
ESP32-S3-WROOM-1U-N16R2RF TXRX MOD BT WIFIU.FL SMD |
4,061 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | Antenna Not Included, U.FL | ESP32-S3R2 | 16MB Flash, 384kB ROM, 2MB SRAM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP32-S3-WROOM-1-N16R2RF TXRX MOD BT WIFI PCB TH SMD |
3,639 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | PCB Trace | ESP32-S3R2 | 16MB Flash, 384kB ROM, 2MB SRAM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP32-S3-WROOM-1-N8R8RF TXRX MOD BT WIFI PCB TH SMD |
2,644 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -104.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | PCB Trace | ESP32-S3R8 | 8MB Flash, 384kB ROM, 8MB SRAM | 3V ~ 3.6V | 97mA ~ 100mA | 273mA ~ 330mA | Surface Mount | -40°C ~ 65°C (TA) |
|
|
ESP32-S3-WROOM-1-N16R8RF TXRX MOD BT WIFI PCB TH SMD |
11,458 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | PCB Trace | ESP32-S3R8 | 16MB Flash, 384kB ROM, 8MB SRAM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 65°C (TA) |
|
|
ESP32-S3-WROOM-1U-N16R8RF TXRX MOD BT WIFIU.FL SMD |
7,391 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | Antenna Not Included, U.FL | ESP32-S3R8 | 16MB Flash, 384kB ROM, 8MB SRAM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 65°C (TA) |
|
BMD-360-A-RRF TXRX MOD BT TH SMD |
4,889 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.1 | GFSK | 2.36GHz ~ 2.5GHz | 2Mbps | 4dBm | -97dBm | GPIO, I2S, SPI, UART | Integrated, Trace | nRF52811 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 11.2mA | 15.4mA | Surface Mount | -40°C ~ 85°C |
|
ESP32-PICO-D4RF TXRX MOD BLUETOOTH WIFI SMD |
2,947 |
|
- |
* | 48-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20.5dBm | -98.4dBm | GPIO, I2C, I2S, PWM, SDIO, SPI, UART | - | ESP32 | 4MB Flash | 2.7V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|

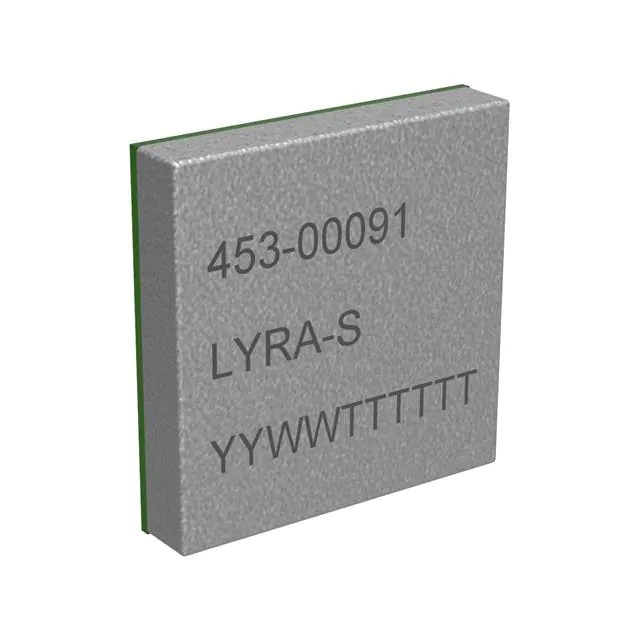

453-00091RRF TXRX MOD BLUETOOTH CHIP SMD |
1,889 |
|
Datasheet |
Lyra | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.3 | GFSK | 2.4GHz | 2Mbps | 6dBm | - | I2C, EUART, UART | Integrated, Chip | EFR32BG22 | 512kB Flash, 32KB RAM | 1.8V ~ 3.8V | 4.2mA | 4.6mA | Surface Mount | -40°C ~ 105°C |
|
453-00090RRF TXRX MOD BT TH SMD |
2,638 |
|
Datasheet |
Lyra | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.3 | GFSK | 2.4GHz | 2Mbps | 8dBm | - | ADC, GPIO, PDM | Integrated, Trace | EFR32BG22 | 512kB Flash, 32KB RAM | 1.8V ~ 3.8V | 4.3mA | 4.8mA | Surface Mount | -40°C ~ 105°C |
|
|
453-00147RRF TXRX MOD BLUETOOTH CHIP SMD |
838 |
|
Datasheet |
Lyra | 31-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth | Bluetooth v5.3, Zigbee® | GFSK | 2.4GHz | - | 8dBm | - | I2C, SPI, UART | Integrated, Chip | EFR32BG22 | 512kB Flash, 32kB RAM | 1.8V ~ 3.8V | 4.3mA | 4.8mA | Surface Mount | -40°C ~ 105°C |
|
BMD-300-A-RRF TXRX MOD BT TH SMD |
59,478 |
|
Datasheet |
BMD-300 | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | GFSK | 2.4GHz | 2Mbps | 4dBm | -96dBm | I2C, I2S, SPI, UART | Integrated, Trace | nRF52832 | 512kB Flash, 64kB RAM | 1.7V ~ 3.6V | 10.4mA | 17mA | Surface Mount | -40°C ~ 85°C |
