RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
ESP32-WROOM-32UE-N8RF TXRX MOD BT WIFIU.FL SMD |
4,723 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20dBm | -98dBm | ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART | Antenna Not Included, U.FL | ESP32-D0WD-V3 | 8MB Flash, 448kB ROM, 536kB SRAM | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|

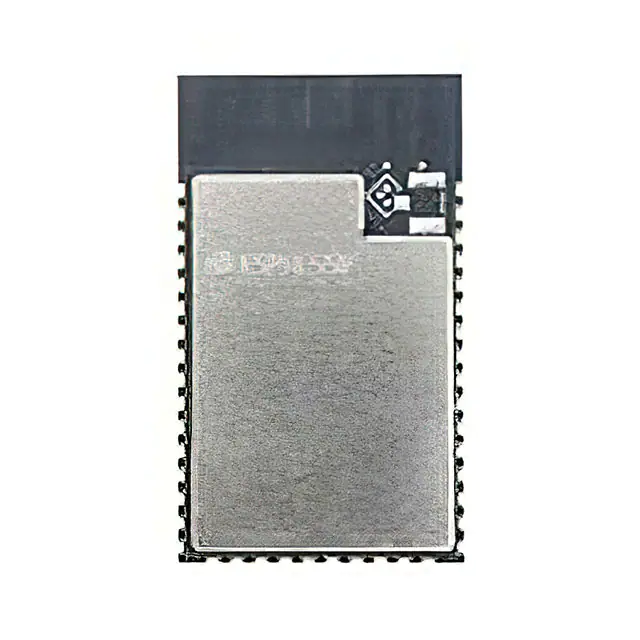

ESP32-WROVER-E-N4R8RF TXRX MOD BT WIFI PCB TH SMD |
3,804 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, SPI, UART | PCB Trace | ESP32-D0WD-V3 | 4MB Flash, 8MB SRAM | 2.3V ~ 3.6V | 80mA | 80mA | Surface Mount | -40°C ~ 85°C |
|
ESP32-WROVER-IE-N4R8RF TXRX MOD BT WIFIIPEX SMD |
2,622 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, SPI, UART | Antenna Not Included, I-PEX | ESP32-D0WD-V3 | 4MB Flash, 8MB SRAM | 2.3V ~ 3.6V | 80mA | 80mA | Surface Mount | -40°C ~ 85°C |
|
ESP32-C6-WROOM-1-N4RF TXRX MOD BT WIFI PCB TH SMD |
3,516 |
|
- |
ESP32-C6 | 28-SMD Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth, WiFi | Bluetooth v5.0, Zigbee® | - | 2.4GHz | - | - | - | GPIO, I2C, I2S, PWM, SPI, UART | PCB Trace | ESP32-C6 | 4MB Flash | - | - | - | Surface Mount | - |
|
|
ESP32-WROOM-32E-N8R2RF TXRX MOD BT WIFI PCB TH SMD |
172 |
|
Datasheet |
- | 38-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | 8DPSK, DQPSK | 2.4GHz | 150Mbps | 20dBm | -97dBm | ADC, GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, UART | PCB Trace | ESP32-D0WD-V3 | 8MB Flash, 448kB ROM, 2MB SRAM | 3V ~ 3.6V | 112mA ~ 118mA | 165mA ~ 239mA | Surface Mount | -40°C ~ 85°C |
|
ESP32-S3-WROOM-1-N4RF TXRX MOD BT WIFI PCB TH SMD |
4,716 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | PCB Trace | ESP32-S3 | 4MB Flash, 384kB ROM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 85°C (TA) |
|
ESP32-S3-WROOM-1U-N4RF TXRX MOD BT WIFIU.FL SMD |
1,539 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | Antenna Not Included, U.FL | ESP32-S3 | 4MB Flash, 384kB ROM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 85°C (TA) |
.jpg)
|
ESP32-WROVER-E-N8R8RF TXRX MOD BT WIFI PCB TH SMD |
12,680 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, SPI, UART | PCB Trace | ESP32-D0WD-V3 | 8MB Flash, 8MB SRAM | 2.3V ~ 3.6V | 80mA | 80mA | Surface Mount | -40°C ~ 85°C |
.jpg)
|
ESP32-WROOM-32UE-N16RF TXRX MOD BT WIFIU.FL SMD |
5,284 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20dBm | -98dBm | ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART | Antenna Not Included, U.FL | ESP32-D0WD-V3 | 16MB Flash, 448kB ROM, 536kB SRAM | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
ESP-WROOM-02D-N2RF TXRX MOD WIFI TH SMD |
4,453 |
|
Datasheet |
ESP | 18-SMD Module | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | 64-QAM, BPSK, CCK, OFDM | 2.4GHz ~ 2.5GHz | 72.2Mbps | 20.5dBm | -98dBm | GPIO, I2C, I2S, PWM, UART | Integrated, Trace | ESP8266EX | 2MB Flash, 50kB RAM | 2.7V ~ 3.6V | - | 120mA ~ 170mA | Surface Mount | -40°C ~ 85°C |
|
|
ESP32-WROVER-IE-N8R8RF TXRX MOD BT WIFIIPEX SMD |
1,251 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, SPI, UART | Antenna Not Included, I-PEX | ESP32-D0WD-V3 | 8MB Flash, 8MB SRAM | 2.3V ~ 3.6V | 80mA | 80mA | Surface Mount | -40°C ~ 85°C |
|
|
ESP32-S3-MINI-1-N8RF TXRX MOD BT WIFI PCB TH SMD |
4,873 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -104.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | PCB Trace | ESP32-S3R8 | 8MB Flash, 384kB ROM | 3V ~ 3.6V | 97mA ~ 100mA | 273mA ~ 330mA | Surface Mount | -40°C ~ 85°C |
|
|
ESP32-S3-WROOM-1-N4R2RF TXRX MOD BT WIFI PCB TH SMD |
2,881 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | PCB Trace | ESP32-S3R2 | 4MB Flash, 384kB ROM, 2MB SRAM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP32-S3-MINI-1U-N8RF TXRX MOD BT WIFIU.FL SMD |
1,508 |
|
Datasheet |
ESP32-S3 | 56-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 21dBm | -98.4dBm | GPIO, I2C, I2S, IrDA, JTAG, PCM, PWM, SDIO, SPI, UART, USB | Antenna Not Included, U.FL | - | 384kB ROM, 512kB SRAM | 1.8V ~ 3.6V, 3V ~ 3.6V | 88mA ~ 91mA | 283mA ~ 340mA | Surface Mount | -40°C ~ 105°C |
|
|
ESP32-C6-WROOM-1-N8RF TXRX MOD BT WIFI PCB TH SMD |
228 |
|
Datasheet |
ESP32-C6 | 28-SMD Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth, WiFi | Bluetooth v5.0, Zigbee® | - | 2.4GHz | - | - | - | GPIO, I2C, I2S, PWM, SPI, UART | PCB Trace | ESP32-C6 | 8MB Flash | - | - | - | Surface Mount | - |
|
ESP32-PICO-V3-02RF TXRX MOD BT WIFIIPEX SMD |
13,290 |
|
Datasheet |
ESP32-PICO | 48-LFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 | - | 2.4GHz | 150Mbps | 19.5dBm | -97dBm | ADC, GPIO, I2C, I2S, SDIO, SPI, PWM, UART | Antenna Not Included, I-PEX | ESP32 | 8MB Flash, 2MB PSRAM | 3V ~ 3.6V | 111mA ~ 117mA | 205mA ~ 385mA | Surface Mount | -40°C ~ 85°C |
|
ESP32-S3-WROOM-1-N8RF TXRX MODULE WIFI PCB TRACE |
7,959 |
|
Datasheet |
ESP32-S3 | - | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11a/b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | - | - | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | PCB Trace | ESP32-S3 | 8MB Flash | - | - | - | - | - |
|
|
ESP-WROOM-02D-N4RF TXRX MOD WIFI TH SMD |
6,703 |
|
Datasheet |
ESP | 18-SMD Module | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | 64-QAM, BPSK, CCK, OFDM | 2.4GHz ~ 2.5GHz | 72.2Mbps | 20.5dBm | -98dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART | Integrated, Trace | ESP8266EX | 4MB Flash, 50kB RAM | 2.7V ~ 3.6V | 50mA ~ 56mA | 120mA ~ 170mA | Surface Mount | -40°C ~ 85°C |
|
|
ESP32-S3-WROOM-1U-N8RF TXRX MOD BT WIFIU.FL SMD |
3,079 |
|
Datasheet |
ESP32-S3 | 41-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 150Mbps | 20.5dBm | -103.5dBm | ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB | Antenna Not Included, U.FL | ESP32-S3 | 8MB Flash, 384kB ROM | 3V ~ 3.6V | 95mA ~ 97mA | 285mA ~ 355mA | Surface Mount | -40°C ~ 85°C (TA) |
|
ESP-WROOM-02U-N2RF TXRX MODULE WIFI U.FL SMD |
1,347 |
|
Datasheet |
ESP | 18-SMD Module | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | 64-QAM, BPSK, CCK, OFDM | 2.4GHz ~ 2.5GHz | 72.2Mbps | 20.5dBm | -98dBm | GPIO, I2C, I2S, PWM, UART | Antenna Not Included, U.FL | ESP8266EX | 2MB Flash, 50kB RAM | 2.7V ~ 3.6V | - | 120mA ~ 170mA | Surface Mount | -40°C ~ 85°C |
RF Transceiver Modules and Modems Electronic Components
Explore RF Transceiver Modules and Modems electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
