RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

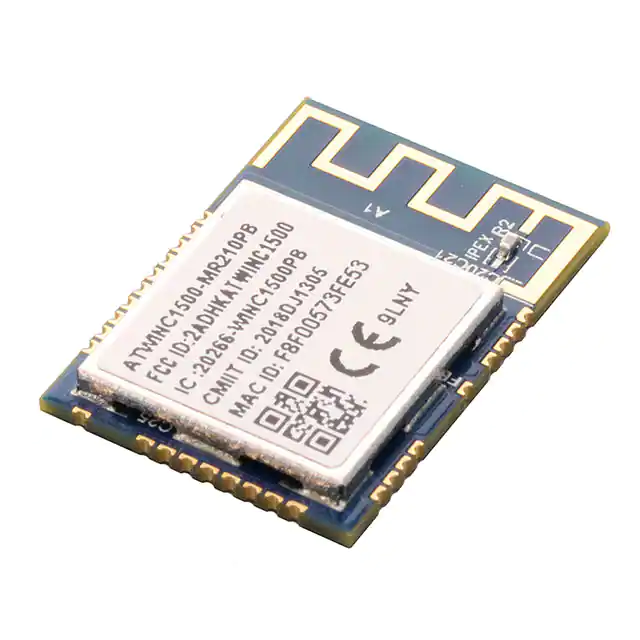

ATWINC1500-MR210PB1952-TRF TXRX MOD WIFI TH SMD |
1,068 |
|
Datasheet |
SmartConnect | 28-SMD Module | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 19.5dBm | -98dBm | I2C, SPI, UART | Integrated, Trace | ATWINC1500B | 4MB Flash, 128kB RAM | 2.7V ~ 3.6V | 58.5mA | 244mA | Surface Mount | -40°C ~ 85°C |
|
4077RF TXRX MOD BLUETOOTH CHIP SMD |
256 |
|
Datasheet |
- | Module | Bulk | Active | Not Verified | Bluetooth | - | - | - | - | 4dBm | -96dBm | ADC, I2C, I2S, PWM, SPI, UART | Integrated, Chip | nRF52832 | 512kB Flash, 64kB RAM | 1.7V ~ 3.6V | 5.4mA | 7.5mA | Surface Mount | -40°C ~ 85°C |
|
453-00171RRF TXRX MOD BLUETOOTH CHIP SMD |
1,851 |
|
- |
- | Module | Tape & Reel (TR) | Active | - | Bluetooth | Bluetooth v5.0 | GFSK | 2.4GHz | 2Mbps | 10dBm | -93.5dBm | ADC, GPIO, I2C, I2S, PWM, SPI, UART | Integrated, Chip | CYW20820 | 256kB Flash, 1MB ROM, 176kB RAM | 2.6V ~ 3.3V | 6.28mA ~ 6.87mA | 13.95mA ~ 20.1mA | Surface Mount | -40°C ~ 85°C |
|
BM78SPPS5NC2-0002AARF TXRX MOD BLUETOOTH CHIP SMD |
553 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 Dual Mode | - | 2.4GHz | 1Mbps | 1.5dBm | -92dBm | I2C, UART | Integrated, Chip | - | - | 3.3V ~ 4.2V | 37mA | 43mA | Surface Mount | -20°C ~ 70°C |
|
113990583RF TXRX MODISM < 1GHZ TRACE SMD |
4,809 |
|
Datasheet |
MDBT50Q | 61-SMD Module | Bulk | Active | Not Verified | 802.15.4, General ISM < 1GHz | Bluetooth v5.0 | - | 2.36GHz ~ 2.5GHz | 2Mbps | 8dBm | -103dBm | ADC, GPIO, I2C, I2S, PCM, SPI, UART, USB | Integrated, Trace | nRF52840 | 1MB Flash, 256kB RAM | 1.7V ~ 5.5V | 2.3mA ~ 32.7mA | 3.7mA ~ 11.1mA | Surface Mount | -40°C ~ 85°C |
|
113990584RF TXRX MODULE 802.15.4 U.FL SMD |
1,957 |
|
Datasheet |
MDBT50Q | 61-SMD Module | Bulk | Active | Not Verified | 802.15.4, General ISM < 1GHz | Bluetooth v5.0 | - | 2.36GHz ~ 2.5GHz | 2Mbps | 8dBm | -103dBm | ADC, GPIO, I2C, I2S, PCM, SPI, UART, USB | Antenna Not Included, U.FL | nRF52840 | 1MB Flash, 256kB RAM | 1.7V ~ 5.5V | 2.3mA ~ 32.7mA | 3.7mA ~ 11.1mA | Surface Mount | -40°C ~ 85°C |
|
CC2652PSIPMOTRRF TXRX MOD 802.15.4BT SMD |
3,512 |
|
Datasheet |
SimpleLink™ | 73-SMD Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.2, Thread, Zigbee® | DSSS, O-QPSK | 2.4GHz ~ 2.48GHz | 2Mbps | 10dBm | -103dBm | ADC, GPIO, I2C, I2S, JTAG, SPI, UART | Antenna Not Included | CC2652P | 352kB Flash, 88kB RAM | 1.8V ~ 3.8V | 7.3mA | 7.9mA ~ 33mA | Surface Mount | -40°C ~ 105°C (TJ) |
|
|
453-00140RRF TXRX MOD ISM<1GHZSMD |
1,755 |
|
Datasheet |
- | 47-SMD Module | Tape & Reel (TR) | Active | - | General ISM < 1GHz | LoRa™, LoRaWAN | FSK | 863MHz ~ 870MHz, 902MHz ~ 928MHz | 1Mbps | 22dBm | -139.2dBm | ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART | Antenna Not Included | - | - | 2V ~ 3.7V | 7.6mA ~ 8.1mA | 25mA ~ 107mA | Surface Mount | -40°C ~ 85°C |
|
|
453-00139RRF TXRX MOD ISM<1GHZSMD |
1,672 |
|
Datasheet |
- | 47-SMD Module | Tape & Reel (TR) | Active | - | General ISM < 1GHz | LoRa™, LoRaWAN | FSK | 863MHz ~ 870MHz, 902MHz ~ 928MHz | 1Mbps | 22dBm | -139.2dBm | ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART | Antenna Not Included | - | - | 2V ~ 3.7V | 7.6mA ~ 8.1mA | 25mA ~ 107mA | Surface Mount | -40°C ~ 85°C |
|
NORA-B121-00BRF TXRX MOD 802.15.4 BT/ANTSMD |
1,816 |
|
Datasheet |
NORA-B1 | 94-SMD Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth/ANT | Bluetooth v5.2, Thread, Zigbee® | - | 2.4GHz | 2Mbps | 18dBm | -109dBm | ADC, GPIO, I2S, I2C, SPI, PDM, PWM, UART, USB | Antenna Not Included | nRF5340 | 1MB Flash, 512kB RAM | 1.7V ~ 3.6V | 3.7mA | 4.1mA ~ 5.3mA | Surface Mount | -40°C ~ 105°C |
|

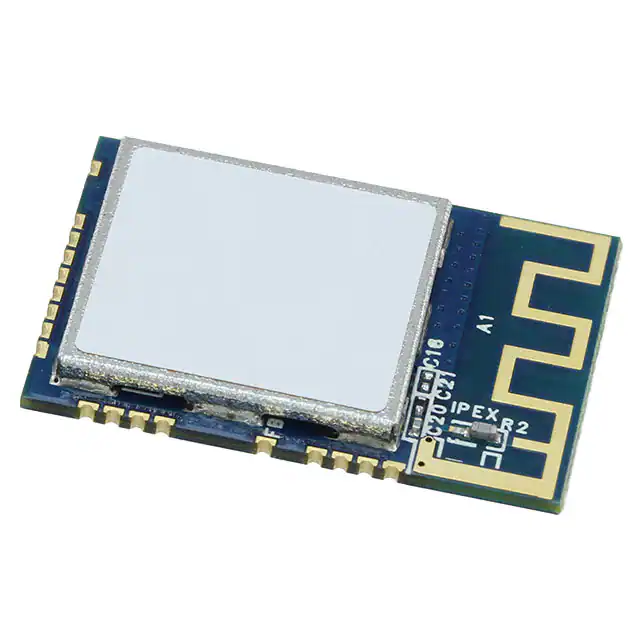

ATWINC1510-MR210PB1954RF TXRX MOD WIFI TH SMD |
4,833 |
|
Datasheet |
SmartConnect | 28-SMD Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 18.5dBm | -95dBm | I2C, SPI, UART | Integrated, Trace | ATWINC1500B | 8MB Flash, 128kB RAM | 2.7V ~ 3.6V | 61mA | 265mA | Surface Mount | -40°C ~ 85°C |
|

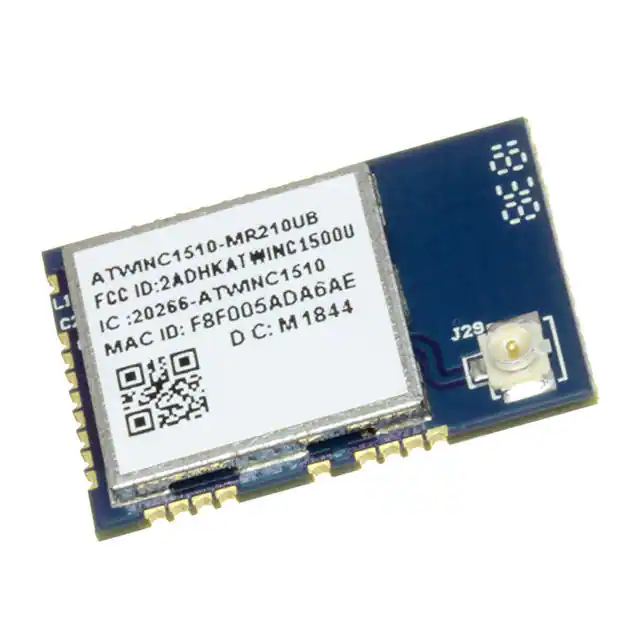

ATWINC1510-MR210UB1961RF TXRX MOD WIFI CHIP + U.FL SMD |
865 |
|
Datasheet |
SmartConnect | 28-SMD Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 18.5dBm | -95dBm | I2C, SPI, UART | Integrated, Chip + U.FL | ATWINC1500B | 8MB Flash, 128kB RAM | 2.7V ~ 3.6V | 61mA | 265mA | Surface Mount | -40°C ~ 85°C |
|
L70RE-M37RF TXRX MODULE NAVIGATION SMD |
152 |
|
Datasheet |
- | 18-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | Navigation | GPS | - | 1.575GHz | 115.2kbps | - | -165dBm | UART | Antenna Not Included | MT3337 | - | 2.8V ~ 4.3V | - | - | Surface Mount | -40°C ~ 85°C |
|
2612011024000RF TXRX MOD BT PCB TH SMD |
350 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.1 | - | 2.4GHz | 2Mbps | 4dBm | -93dBm | UART | PCB Trace | nRF52805 | 192kB Flash, 24kB RAM | 1.8V ~ 3.6V | 6.8mA | 9.3mA | Surface Mount | -40°C ~ 85°C |
|
NORA-B120-00BRF TXRX MOD BT /ANTU.FL SMD |
1,857 |
|
Datasheet |
NORA-B1 | 94-SMD Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth/ANT | Bluetooth v5.2, Thread, Zigbee® | - | 2.4GHz | 2Mbps | 18dBm | -109dBm | ADC, GPIO, I2S, I2C, SPI, PDM, PWM, UART, USB | Antenna Not Included, U.FL | nRF5340 | 1MB Flash, 512kB RAM | 1.7V ~ 3.6V | 3.7mA | 4.1mA ~ 5.3mA | Surface Mount | -40°C ~ 105°C |
|
|
LG77LICMDRF TXRX MODULE NAVIGATION SMD |
366 |
|
- |
LG77L | 43-SMD Module | Tape & Reel (TR) | Active | Not Verified | Navigation | BeiDou, Galileo, GLONASS, GPS, GNSS | - | 1.561GHz, 1.575GHz, 1.602GHz | - | - | -163dBm | I2C, UART | Antenna Not Included | MT3333 | - | 2.8V ~ 4.3V | - | - | Surface Mount | -40°C ~ 85°C |
|
RN4020-V/RM120RF TXRX MOD BT TH SMD |
3,549 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v4.1 | GFSK | 2.4GHz | 1Mbps | 7.5dBm | -92.5dBm | AIO, PIO, SPI, UART | Integrated, Trace | - | 64kB Flash | 1.8V ~ 3.6V | 16mA | 16mA | Surface Mount | -30°C ~ 85°C |
|
|
LC86GAAMDRF TXRX MOD NAVIGATION CHIP SMD |
306 |
|
- |
- | 12-SMD Module | Tape & Reel (TR) | Active | Not Verified | Navigation | BeiDou, Galileo, GLONASS, GNSS, GPS | - | - | - | - | -166dBm | UART | Integrated, Chip | AG3352 | - | - | - | - | Surface Mount | -40°C ~ 85°C |
|
M65MA-04-STDRF TXRX MODULE CELL SMD |
881 |
|
Datasheet |
- | 44-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | Cellular | GSM, GPRS | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 85.6kbps | - | -108dBm | UART | Antenna Not Included | RDA8955L | - | 3.45V ~ 4.25V | 1.2mA | - | Surface Mount | -40°C ~ 85°C |
|
BGM210PA32JIA2RF TXRX MOD BLUETOOTH CHIP SMD |
554 |
|
Datasheet |
Blue Gecko | 31-SMD Module | Strip | Active | Not Verified | Bluetooth | Bluetooth v5.3 | GFSK | 2.4GHz ~ 2.4835GHz | 2Mbps | 20dBm | -104.5dBm | ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART | Integrated, Chip | EFR32BG21 | 1MB Flash, 96kB RAM | 1.71V ~ 3.8V | 9.1mA ~ 9.9mA | 59.7mA ~ 173mA | Surface Mount | -40°C ~ 125°C (TA) |
