RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NINA-B410-01BRF TXRX MOD BLUETOOTHU.FL SMD |
307 |
|
Datasheet |
NINA-B41 | 55-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth | Bluetooth v5.1 | - | 2.4GHz | 2Mbps | 8dBm | -102dBm | UART, USB | Antenna Not Included, U.FL | nRF52833 | 512kB Flash, 128kB RAM | 1.7V ~ 3.6V | - | - | Surface Mount | -40°C ~ 105°C |
|
|
WFM200SS22XNN3RF TXRX MODULE WIFI CHIP SMD |
618 |
|
Datasheet |
- | 58-SMD Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | DSSS | 2.412GHz ~ 2.484GHz | 72.2Mbps | 15.1dBm | -96.3dBm | SDIO, SPI | Integrated, Chip | WFM200S | - | 1.62V ~ 3.6V | 42.3mA ~ 48.3mA | 45.4mA ~ 99.4mA | Surface Mount | -40°C ~ 105°C (TA) |
|
|
NINA-W151-04BRF TXRX MOD BT ISM>1GHZ WIFISMD |
1,654 |
|
Datasheet |
NINA-W15 | 36-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, General ISM > 1GHz, WiFi | 802.11b/g/n, Bluetooth v4.2 | CCK, DSSS, OFDM | 2.4GHz ~ 2.48GHz | 54Mbps | 18dBm | -96dBm | SDIO, SPI, UART | Antenna Not Included | ESP32 | 2MB Flash, 0.5MB SRAM | 3V ~ 3.6V | 110mA ~ 125mA | 120mA ~ 170mA | Surface Mount | -40°C ~ 85°C |
|
|
NINA-W156-04BRF TXRX MOD BT ISM>1GHZ I TH SMD |
1,136 |
|
Datasheet |
NINA-W15 | 36-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, General ISM > 1GHz, WiFi | 802.11b/g/n, Bluetooth v4.2 | CCK, DSSS, OFDM | 2.4GHz ~ 2.48GHz | 54Mbps | 18dBm | -96dBm | SDIO, SPI, UART | PCB Trace | ESP32 | 2MB Flash, 0.5MB SRAM | 3V ~ 3.6V | 110mA ~ 125mA | 120mA ~ 170mA | Surface Mount | -40°C ~ 85°C |
|
|
WFM200SS22XNA3RF TXRX MODULE WIFI CHIP SMD |
848 |
|
- |
- | 58-SMD Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | DSSS | 2.412GHz ~ 2.484GHz | 72.2Mbps | 15.1dBm | -96.3dBm | SDIO, SPI | Integrated, Chip | WFM200S | - | 1.62V ~ 3.6V | 42.3mA ~ 48.3mA | 45.4mA ~ 99.4mA | Surface Mount | -40°C ~ 105°C (TA) |
|
453-00085RRF TXRX MOD BT WIFI CHIP SMD |
1,083 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.2 | - | 2.4GHz | 54Mbps | 18dBm | -94dBm | SDIO, UART | Integrated, Chip | CYW43439 | - | 2.97V ~ 3.63V | - | 301mA | Surface Mount | -40°C ~ 85°C |
|
NINA-B311-01BRF TXRX MODULE BLUETOOTH SMD |
2,560 |
|
Datasheet |
NINA-B3 | 55-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | Bluetooth | Bluetooth v5.0 | GFSK | 2.4GHz | 2Mbps | 10.5dBm | -100dBm | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | Antenna Not Included | nRF52840 | 1MB Flash, 256kB RAM | 1.7V ~ 3.6V | 4.8mA | 14.1mA | Surface Mount | -40°C ~ 85°C |
|
|
NINA-B311-02BRF TXRX MOD 802.15.4BT SMD |
385 |
|
Datasheet |
NINA-B3 | 55-SMD Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.0 | - | 2.4GHz | 2Mbps | 10.5dBm | -100dBm | ADC, GPIO, I2C, I2S, PDM, PWM, SPI, UART, USB | Antenna Not Included | nRF52840 | 1MB Flash, 256kB RAM | 1.7V ~ 3.6V | 4.8mA | 4.9mA ~ 14.1mA | Surface Mount | -40°C ~ 85°C |
|
|
NINA-B222-04BRF TXRX MOD BLUETOOTH CHIP SMD |
687 |
|
Datasheet |
NINA-B2 | 36-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth | Bluetooth v4.2 + EDR | 4DQPSK, 8DPSK, GFSK | 2.4GHz | 3Mbps | 8dBm | -88dBm | GPIO, SPI, UART | Integrated, Chip | ESP32 | 2MB Flash, 500kB SRAM | 3V ~ 3.45V | 50mA ~ 110mA | 60mA ~ 150mA | Surface Mount | -40°C ~ 85°C (TA) |
|
NINA-B316-02BRF TXRX MOD BT TRACE SMD |
1,873 |
|
Datasheet |
NINA-B3 | 55-SMD Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.0 | - | 2.4GHz | 2Mbps | 10dBm | -100dBm | ADC, GPIO, I2C, I2S, PDM, PWM, SPI, UART, USB | Integrated, Trace | nRF52840 | 1MB Flash, 256kB RAM | 1.7V ~ 3.6V | 4.8mA | 4.9mA ~ 14.1mA | Surface Mount | -40°C ~ 85°C |
|
NORA-B101-00BRF TXRX MOD 802.15.4BT SMD |
2,308 |
|
Datasheet |
NORA-B1 | Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.2, Thread, Zigbee® | - | 2.4GHz | 2Mbps | 3dBm | -97.5dBm | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB | Antenna Not Included | nRF5340 | 1MB Flash, 512kB RAM | 1.7V ~ 5.5V | - | - | Surface Mount | -40°C ~ 105°C |
|
NINA-B312-00BRF TXRX MOD BLUETOOTH CHIP SMD |
1,774 |
|
Datasheet |
NINA-B3 | 55-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | 2Mbps | 10dBm | -100dBm | GPIO, UART | Integrated, Chip | nRF52840 | 1MB Flash, 256kB RAM | 1.7V ~ 3.6V | 4.8mA | 14.1mA | Surface Mount | -40°C ~ 85°C |
|

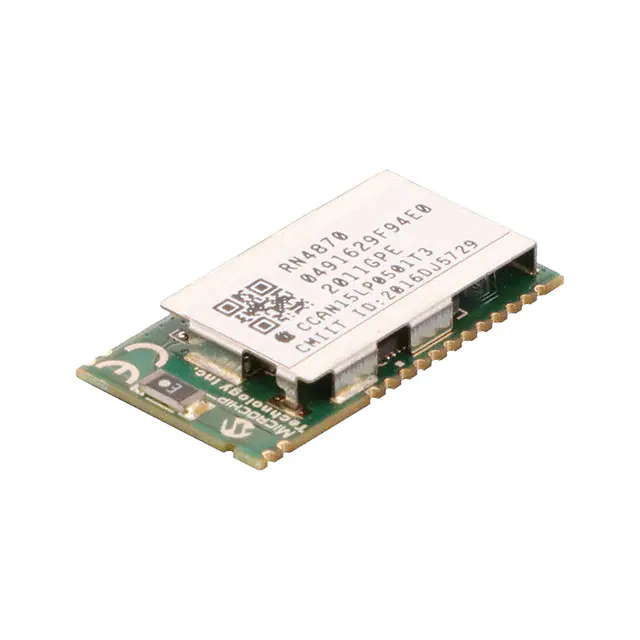

RN4870-I/RM130RF TXRX MOD BLUETOOTH CHIP SMD |
4,876 |
|
Datasheet |
- | 33-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 | GFSK | 2.4GHz | 10kbps | 0dBm | -90dBm | I2C, AIO, PIO, PWM, SPI, UART | Integrated, Chip | RN4870 | 256kB Flash, 32kB ROM, 24kB SRAM | 1.9V ~ 3.6V | 13mA | 13mA | Surface Mount | -40°C ~ 85°C |
|

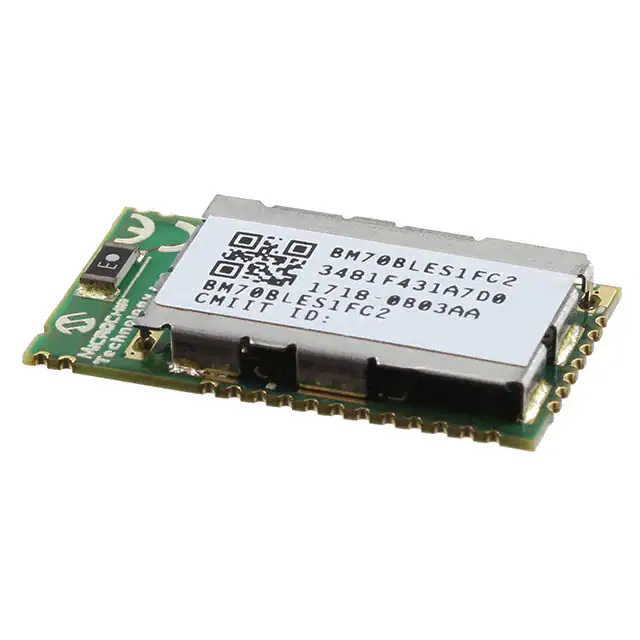

BM70BLES1FC2-0B03AARF TXRX MOD BLUETOOTH CHIP SMD |
1,731 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 0dBm | -90dBm | I2C, SPI, UART | Integrated, Chip | - | 256kB Flash, 32kB ROM, 24kB SRAM | 1.9V ~ 3.6V | 13mA | 13mA | Surface Mount | -40°C ~ 85°C |
|

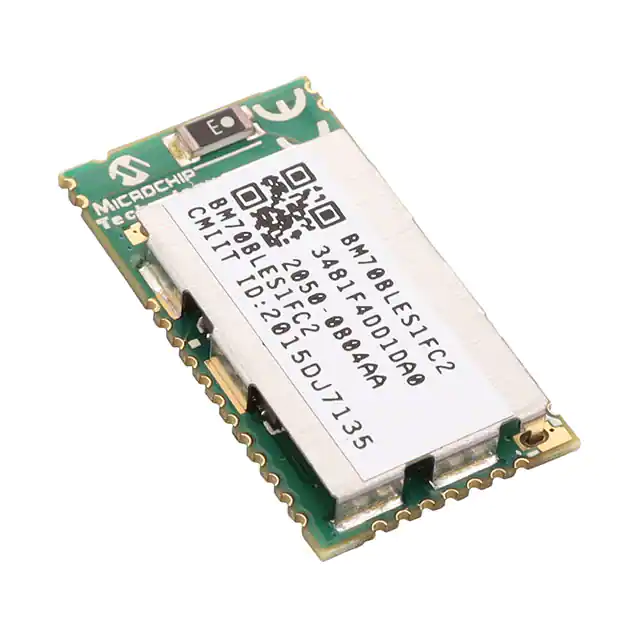

BM70BLES1FC2-0B04AARF TXRX MOD BLUETOOTH CHIP SMD |
1,684 |
|
Datasheet |
- | 33-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 0dBm | -90dBm | I2C, SPI, UART | Integrated, Chip | - | - | 1.9V ~ 3.6V | 13mA | 13mA | Surface Mount | -40°C ~ 85°C |
|
|
NORA-W366-00BRF TXRX MOD BT WIFI PCB TH SMD |
1,390 |
|
Datasheet |
NORA-W36 | 82-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, WiFi | 802.11a/b/g/n, Bluetooth v5.0 | CCK, DSSS, GFSK, OFDM | 2.4GHz, 5GHz | 150Mbps | 24dBm | -101dBm | UART | PCB Trace | RTL8720DF | 4MB Flash, 512kB SRAM | 3V ~ 3.6V | 52mA ~ 56mA | 100mA ~ 450mA | Surface Mount | -40°C ~ 105°C (TA) |
|
|
LC76GABMDRF TXRX MOD NAVIGATION SMD |
599 |
|
- |
LC76G | 28-SMD Module | Tape & Reel (TR) | Active | Not Verified | Navigation | BeiDou, Galileo, GLONASS, GPS, GNSS | - | 1.561GHz, 1.575GHz, 1.602GHz | - | - | -166dBm | I2C, UART | Antenna Not Included | AG3352 | - | 2.55V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
NORA-B100-00BRF TXRX MOD 802.15.4 BTU.FL SMD |
4,192 |
|
Datasheet |
NORA-B1 | Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.2, Thread, Zigbee® | - | 2.4GHz | 2Mbps | 3dBm | -97.5dBm | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB | Antenna Not Included, U.FL | nRF5340 | 1MB Flash, 512kB RAM | 1.7V ~ 5.5V | - | - | Surface Mount | -40°C ~ 105°C |
|
ATWINC1500-MR210UB1961RF TXRX MOD WIFI CHIP + U.FL SMD |
3,126 |
|
Datasheet |
SmartConnect | 28-SMD Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 18.5dBm | -95dBm | I2C, SPI, UART | Integrated, Chip + U.FL | ATWINC1500B | 4MB Flash, 128kB RAM | 2.7V ~ 3.6V | 61mA | 265mA | Surface Mount | -40°C ~ 85°C |
|
|
ATWINC1500-MR210PB1954RF TXRX MOD WIFI TH SMD |
1,034 |
|
Datasheet |
SmartConnect | 28-SMD Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 18.5dBm | -95dBm | I2C, SPI, UART | Integrated, Trace | ATWINC1500B | 4MB Flash, 128kB RAM | 2.7V ~ 3.6V | 61mA | 265mA | Surface Mount | -40°C ~ 85°C |
