RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCS945RAAMDWI-FI 4 & BLUETOOTH 5.2, DUAL BA |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | RTL8733BS-CG | - | - | - | - | - | - |
|
|
ESP32-WROVER-E-N16R2RF TXRX MOD BT WIFI PCB TH SMD |
0 |
|
Datasheet |
- | 38-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | - | 2.4GHz | 150Mbps | 20.5dBm | -97dBm | ADC, GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, UART | PCB Trace | ESP32-D0WD-V3 | 16MB Flash, 2MB SRAM | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
WL1801GYFVRRF TXRX MODULE WIFI SMD |
0 |
|
- |
WiLink™ | 130-UFBGA, WLCSP | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | - | - | - | HCI, SDIO, UART | Antenna Not Included | WL18x1 | - | - | - | - | Surface Mount | -40°C ~ 105°C |
|
|
113990614RF TXRX MOD WIFI PCB TRACE SMD |
0 |
|
Datasheet |
- | 23-SMD Module | Bulk | Obsolete | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz ~ 2.4835GHz | - | - | - | GPIO, I2C, I2S, SPI, UART | PCB Trace | ESP8266 | 1MB Flash | - | - | - | Surface Mount | - |
|

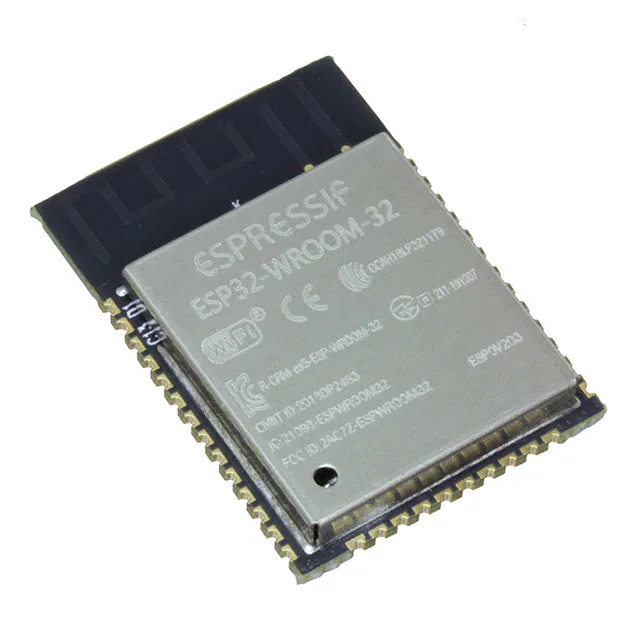

ESP32-WROOM-32-N4RF TXRX MOD BLUETOOTH WIFI SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | Bluetooth, WiFi | - | - | 2.4GHz ~ 2.5GHz | 150Mbps | 20dBm | -98dBm | - | - | - | - | 2.7V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|

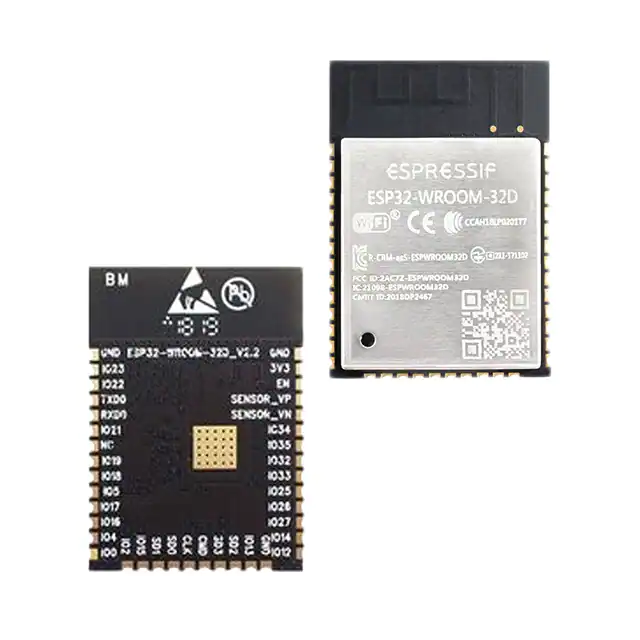

ESP32-WROOM-32D-N4RF TXRX MOD BT WIFI TH SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20.5dBm | -98dBm | GPIO, I2C, I2S, PWM, SDIO, SPI, UART | Integrated, Trace | ESP32-D0WD | 448kB ROM, 536kB SRAM | 2.7V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
ESP32-WROOM-32D(M113DH3200PH3Q0)RF TXRX MOD BT WIFI PCB TH SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Not For New Designs | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz | 150Mbps | 18.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, SDIO, SPI, UART | PCB Trace | ESP32-D0WD | 4MB Flash | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP32-WROOM-32U(M113DH3200UH3Q0)RF TXRX MOD BT WIFIU.FL SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Not For New Designs | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz | 150Mbps | 18.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, SDIO, SPI, UART | Antenna Not Included, U.FL | ESP32-D0WD | 4MB Flash | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP32-WROOM-32(M103QH3200PH3Q0)RF TXRX MOD BT WIFI TH SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Not For New Designs | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | - | 2.412GHz ~ 2.484GHz | 150Mbps | 20dBm | -98dBm | ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART | Integrated, Trace | ESP32-D0WDQ6 | 4MB Flash, 536kB SRAM | 2.7V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
HCM010SABMD-0PBT 5.4 & BLE MESH, 10 DBM MAX TX |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | EFR32BG21 | - | - | - | - | - | - |
|
|
AI-WB2-12FRF TXRX MOD BT WIFI PCB TH SMD |
0 |
|
Datasheet |
- | 22-SMD Module | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72.2Mbps | 19dBm | -98dBm | GPIO, I2C, JTAG, PWM, SDIO, SPI, UART | PCB Trace | BL602 | 4MB Flash | 2.7V ~ 3.6V | 65mA | 230mA ~ 260mA | Surface Mount | -40°C ~ 85°C | |
|
|
BM833A-PRF TXRX MOD 802.15.4 BT TH SMD |
0 |
|
- |
- | 47-SMD Module | Tape & Reel (TR) | Active | - | 802.15.4, Bluetooth | Bluetooth v5.3, Thread, Zigbee® | - | - | 1Mbps | 4dBm | -97dBm | GPIO, I2C, I2S, PWM, SPI, UART | PCB Trace | nRF52811 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 4.6mA | 4.6mA | Surface Mount | -40°C ~ 85°C |
|
ISM20736S-TRRF TXRX MOD BLUETOOTH CHIP SMD |
0 |
|
Datasheet |
- | 48-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v4.0 | - | 2.4GHz | - | 2dBm | -94dBm | ADC, GPIO, I2C, PWM, SPI, UART | Integrated, Chip | BCM20736S | 512kB EEPROM | 1.62V ~ 3.63V | 24mA | 24mA | Surface Mount | -40°C ~ 85°C |
|
|
113990578RF TXRX MOD BT WIFI TH SMD |
0 |
|
Datasheet |
- | 38-SMD Module | Bulk | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR | 64QAM, BPSK, CCK | 2.412GHz ~ 2.484GHz | 72.2Mbps | 19dBm | -90dBm | ADC, I2C, I2S, PWM, SDIO, SPI, UART | Integrated, Trace | EPS32-S | 32MB Flash | 3V ~ 3.6V | - | - | Surface Mount | -20°C ~ 85°C |
|
|
ESP32-WROOM-32D (4MB HIGH TEMP)RF TXRX MOD BT WIFI PCB TH SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20.5dBm | -98dBm | GPIO, I2C, I2S, PWM, SDIO, SPI, UART | PCB Trace | ESP32-D0WD | 448kB ROM, 536kB SRAM | 2.7V ~ 3.6V | - | - | Surface Mount | -40°C ~ 105°C |
.jpg)
|

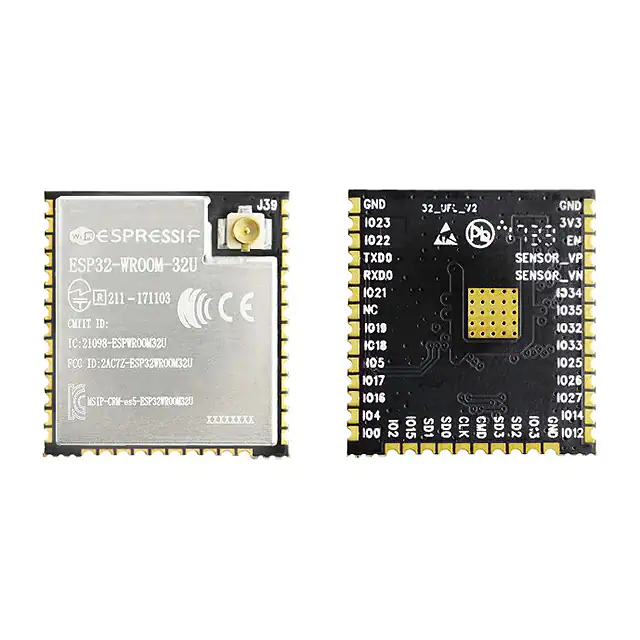

ESP32-WROOM-32U-H4RF TXRX MOD BT WIFIU.FL SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20.5dBm | -98dBm | GPIO, I2C, I2S, PWM, SDIO, SPI, UART | Antenna Not Included, U.FL | ESP32-D0WD | 4MB Flash, 448kB ROM, 536kB SRAM | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
ESP32-WROOM-32D(M113DH3200PS3Q0)RF TXRX MOD BT WIFI PCB TH SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Obsolete | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz | 150Mbps | 18.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, SDIO, SPI, UART | PCB Trace | ESP32-D0WD | 4MB Flash | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP32-WROOM-32U(M113DH3200US3Q0)RF TXRX MOD BT WIFIU.FL SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Obsolete | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz | 150Mbps | 18.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, SDIO, SPI, UART | Antenna Not Included, U.FL | ESP32-D0WD | 4MB Flash | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP32-WROOM-32D-H4RF TXRX MOD BT WIFI PCB TH SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Bulk | Active | Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | - | 2.4GHz | 150Mbps | 18.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, SDIO, SPI, UART | PCB Trace | ESP32-D0WD | 4MB Flash | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
|
|
BT832A-PRF TXRX MOD BT PCB TH SMD |
0 |
|
Datasheet |
- | 16-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth | Bluetooth v5.3 | - | - | 1Mbps | 4dBm | -96dBm | GPIO, I2C, I2S, PWM, SPI, UART | PCB Trace | nRF52810 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 5.4mA | 5.3mA | Surface Mount | -40°C ~ 85°C |
