RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP-WROOM-02(M1002H1600PH3Q0)RF TXRX MOD WIFI PCB TRACE SMD |
0 |
|
Datasheet |
ESP | 18-SMD Module | Tape & Reel (TR) | Not For New Designs | - | WiFi | 802.11b/g/n | 64QAM, BPSK, CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 72.2Mbps | 20dBm | -98dBm | GPIO, I2C, I2S, PWM, SPI, UART | PCB Trace | ESP8266EX | 50kB RAM | 2.7V ~ 3.6V | 50mA ~ 56mA | 120mA ~ 170mA | Surface Mount | -40°C ~ 85°C |
|
|
ESP32-WROOM-32E(M113EH6400PH3Q0)RF TXRX MOD BT WIFI TH SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | - | 2.412GHz ~ 2.484GHz | 150Mbps | 20dBm | -98dBm | ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART | Integrated, Trace | ESP32-D0WDQ6 | 8MB Flash, 536kB SRAM | 2.7V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
ESP32-WROOM-32UE(M113EH6400UH3Q0)RF TXRX MOD BT WIFIU.FL SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz | 150Mbps | 18.5dBm | -98dBm | ADC, GPIO, I2C, I2S, JTAG, SDIO, SPI, UART | Antenna Not Included, U.FL | ESP32-D0WD | 4MB Flash | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP32-WROVER-IE(M213EH3264UH3Q0)RF TXRX MOD BT WIFIU.FL SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | - | 2.4GHz | 150Mbps | 19.5dBm | -97dBm | ADC, GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, UART | Antenna Not Included, U.FL | ESP32-D0WD-V3, ESP32-D0WDR2-V3 | 4MB Flash, 8MB SRAM | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP32-WROVER-E(M213EH3264PH3Q0)RF TXRX MOD BT WIFI PCB TH SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | - | 2.4GHz | 150Mbps | 19.5dBm | -97dBm | ADC, GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, UART | PCB Trace | ESP32-D0WD-V3, ESP32-D0WDR2-V3 | 4MB Flash, 8MB SRAM | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
|
|
FCM100DAEMDRF TXRX MOD BT WIFIIPEX TH SMD |
0 |
|
Datasheet |
- | 25-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.2 | 16-QAM, 64-QAM, BPSK, CCK, QPSK | 2.4GHz | - | - | - | UART | Antenna Not Included, I-PEX, PCB Trace | BK7231M | - | 3.3V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
HCM511SACMD-0PBLE 5.4 STANDALONE MODULE, 32 KB |
0 |
|
Datasheet |
HCM511S | 24-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth | Bluetooth v5.4 | - | - | 2Mbps | 6dBm | -99.5dBm | ADC, GPIO, I2C, I2S, PWM, SPI, USART | PCB Trace | - | 352kB Flash, 32kB RAM | 1.71V ~ 3.8V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
FCM360WAAMD-0P-08WI-FI 6, SINGLE BAND 2.4GHZ, BLE |
0 |
|
- |
- | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | ECR6600A | - | - | - | - | - | - |
|
|
ESP32-WROOM-32UE-N8R2RF TXRX MOD BT WIFIU.FL SMD |
0 |
|
Datasheet |
- | 38-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | 8DPSK, DQPSK | 2.4GHz | 150Mbps | 20dBm | -97dBm | ADC, GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, UART | Antenna Not Included, U.FL | ESP32-D0WD-V3 | 8MB Flash, 448kB ROM, 2MB SRAM | 3V ~ 3.6V | 112mA ~ 118mA | 165mA ~ 239mA | Surface Mount | -40°C ~ 85°C |
|
|
CYW20735PB1KML1GTRF TXRX MODULE BLUETOOTH SMD |
0 |
|
- |
WICED | 60-VFQFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Not Verified | Bluetooth | Bluetooth v5.0 | GFSK | 2.402GHz ~ 2.48GHz | 2Mbps | 12dBm | -94.5dBm | ADC, I2C, I2S, PCM, PWM, SPI, UART | Antenna Not Included | CYW20735B1 | 384kB RAM, 2MB ROM | 1.62V ~ 3.63V | 8mA | 18mA | Surface Mount | -30°C ~ 85°C |
|
|
CYW20735PB1KML1GRF TXRX MODULE BLUETOOTH SMD |
0 |
|
- |
WICED | 60-VFQFN Exposed Pad | Tray | Discontinued at Digi-Key | Not Verified | Bluetooth | Bluetooth v5.0 | GFSK | 2.402GHz ~ 2.48GHz | 2Mbps | 12dBm | -94.5dBm | ADC, I2C, I2S, PCM, PWM, SPI, UART | Antenna Not Included | CYW20735B1 | 384kB RAM, 2MB ROM | 1.62V ~ 3.63V | 8mA | 18mA | Surface Mount | -30°C ~ 85°C |
|
|
FLM140DAALinear IC |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FCM360WABMD-1X-04WI-FI 6, SINGLE BAND 2.4GHZ, BLE |
0 |
|
- |
- | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | ECR6600A | - | - | - | - | - | - |
|
|
HCM511SABMD-0PBLE 5.4 STANDALONE MODULE, 32 KB |
0 |
|
Datasheet |
HCM511S | 24-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth | Bluetooth v5.4 | - | - | 2Mbps | 6dBm | -99.5dBm | ADC, GPIO, I2C, I2S, PWM, SPI, USART | PCB Trace | - | 512kB Flash, 32kB SRAM | 1.71V ~ 3.8V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
FCM100DAEMD*IOTCLOUD ENABLED, WI-FI 4, 2.4GHZ, |
0 |
|
Datasheet |
- | 25-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.2 | 16-QAM, 64-QAM, BPSK, CCK, QPSK | 2.4GHz | - | - | - | UART | Antenna Not Included, I-PEX, PCB Trace | - | - | 3.3V | - | - | Surface Mount | -40°C ~ 85°C |
|
ESP32-PICO-V3-ZERORF TXRX MOD BT WIFI PCB TH SMD |
3 |
|
Datasheet |
ESP32 | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth 4.2 | - | 2.412GHz ~ 2.484GHz | 150Mbps | 19.5dBm | -97dBm | GPIO, I2C, I2S, SDIO, SPI, UART | PCB Trace | - | 448kB ROM, 520kB SRAM | 3V ~ 3.6V | 110mA ~ 116mA | 162mA ~ 233mA | Surface Mount | -40°C ~ 85°C |
|
|

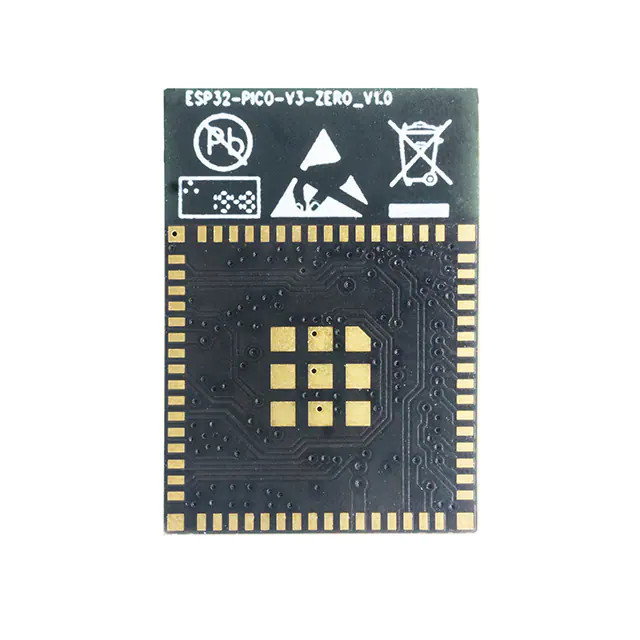

ESP32-PICO-V3-ZERO(P103AH0000PH3Q0)RF TXRX MOD BT WIFI PCB TH SMD |
0 |
|
Datasheet |
ESP32 | 77-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 | DPSK, DQPSK | 2.412GHz ~ 2.484GHz | 150Mbps | 19.5dBm | -97dBm | ADC, GPIO, I2C, SPI, UART | PCB Trace | ESP32 | 448kB ROM, 520kB SRAM | 3V ~ 3.6V | 110mA ~ 116mA | 162mA ~ 233mA | Surface Mount | -40°C ~ 85°C |
|
ESP-WROOM-02-N4RF TXRX MOD WIFI TH SMD |
0 |
|
Datasheet |
ESP | 18-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | WiFi | 802.11b/g/n | 64-QAM, BPSK, CCK, OFDM | 2.4GHz ~ 2.5GHz | 72.2Mbps | 20.5dBm | -98dBm | GPIO, I2C, I2S, PWM, UART | Integrated, Trace | ESP8266EX | 4MB Flash, 50kB RAM | 2.7V ~ 3.6V | - | 120mA ~ 170mA | Surface Mount | -40°C ~ 85°C |
|
|
ESP32-WROOM-32E(M113EH2800PH3Q0)RF TXRX MOD BT WIFI PCB TH SMD |
0 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 | 8DPSK, DQPSK | 2.4GHz | 150Mbps | 19.5dBm | -97dBm | ADC, GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, UART | PCB Trace | ESP32-D0WD-V3, ESP32-D0WDR2-V3 | 4MB Flash | 3V ~ 3.6V | 112mA ~ 118mA | 165mA ~ 239mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
ESP-WROOM-02(M1002H3200PH3Q0)RF TXRX MOD WIFI PCB TRACE SMD |
0 |
|
Datasheet |
ESP | 18-SMD Module | Tape & Reel (TR) | Not For New Designs | - | WiFi | 802.11b/g/n | 64QAM, BPSK, CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 72.2Mbps | 20dBm | -98dBm | GPIO, I2C, I2S, PWM, SPI, UART | PCB Trace | ESP8266EX | 50kB RAM | 2.7V ~ 3.6V | 50mA ~ 56mA | 120mA ~ 170mA | Surface Mount | -40°C ~ 85°C |
