BOM Upload
RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

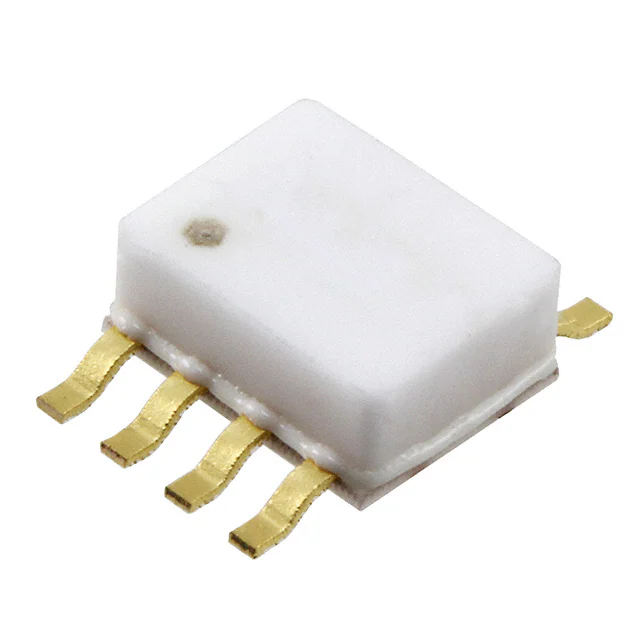

HMC232C8TRIC RF SWITCH SPDT 8GHZ 8CSMD |
0 |
|
Datasheet |
- | 8-SMD, Gull Wing Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | - | SPDT | 0Hz ~ 8GHz | 43dB | 1.6dB | 6GHz | 26dBm | 46dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | - | 8-CSMD |
|
HMC322-SXIC RF SWITCH SP8T 10GHZ DIE |
0 |
|
Datasheet |
- | Die | Bulk | Obsolete | VSAT | Absorptive | SP8T | 0Hz ~ 10GHz | 32dB | 2.1dB | 6GHz | 23dBm | 38dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
HMC344-SXIC RF SWITCH SP4T 8GHZ DIE |
0 |
|
Datasheet |
- | Die | Bulk | Obsolete | WLAN | Absorptive | SP4T | - | - | - | - | 21dBm (typ) IP1dB | 40dBm (typ) | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
HMC347-SXIC RF SWITCH SPDT 20GHZ DIE |
0 |
|
Datasheet |
- | Die | Tray | Obsolete | VSAT | Absorptive | SPDT | 0Hz ~ 20GHz | 45dB | 1.7dB | 20GHz | 23dBm | 43dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|

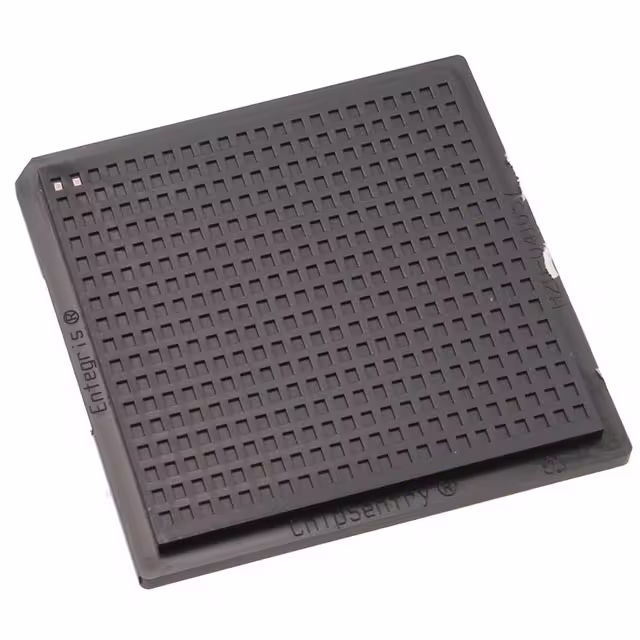

HMC986-SXIC RF SWITCH SPDT 50GZ DIE 1=2PC |
0 |
|
Datasheet |
- | Die | Bulk | Obsolete | Radar | Reflective | SPDT | - | - | - | - | 25dBm (typ) IP1dB | 40dBm (typ) | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|
HMC232G7TRIC RF SWITCH SPDT 6GHZ 7SMD |
0 |
|
Datasheet |
- | 7-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | VSAT | Absorptive | SPDT | - | - | - | - | 27dBm (typ) IP1dB | 49dBm (typ) | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 7-SMD |
|
HMC232G8IC RF SWITCH SPDT 6GHZ 8SMT |
0 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Strip | Obsolete | VSAT | Absorptive | SPDT | 0Hz ~ 6GHz | 38dB | 1.5dB | 4GHz | 27dBm | 46dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
HMC233G8IC RF SWITCH SPDT 6GHZ 8SMT |
0 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | VSAT | Absorptive | SPDT | - | - | - | - | 27dBm (typ) IP1dB | 46dBm (typ) | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
HMC244G16IC RF SWITCH SP4T 4GHZ 16SMT |
0 |
|
Datasheet |
- | 16-LQFP | Strip | Obsolete | Radar | Absorptive | SP4T | 0Hz ~ 4GHz | 40dB | 0.7dB | 2GHz, 3GHz | 25dBm | 43dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-SMT (5.84x5.84) |
|
HMC607G7IC RF SWITCH SPDT 6GHZ SMD |
0 |
|
Datasheet |
- | 7-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | VSAT | Absorptive | SPDT | - | - | - | - | 27dBm (typ) IP1dB | 47dBm (typ) | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | SMD |
|

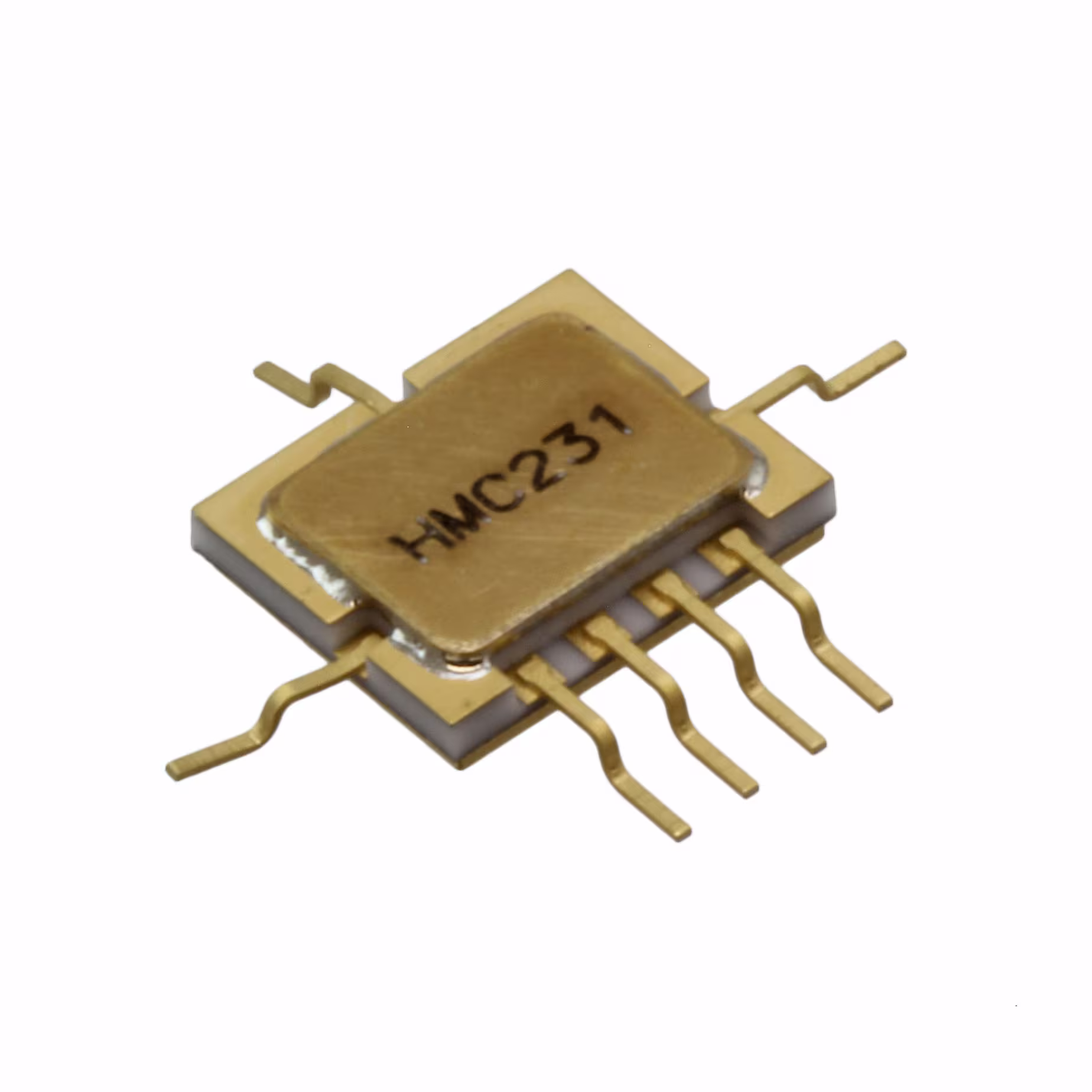

HMC231G7TRIC RF SWITCH SPDT 6GHZ 7SMD |
0 |
|
Datasheet |
- | 7-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | General Purpose | - | SPDT | - | - | - | - | 27dBm | 49dBm (typ) | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | - | 7-SMD |
.jpg)
|
HMC344LH5TRIC RF SWITCH SP4T 12GHZ 12CSMT |
0 |
|
Datasheet |
- | 12-LCQFN | Tape & Reel (TR) | Obsolete | Radar | Absorptive | SP4T | 0Hz ~ 12GHz | 40dB | 2.1dB | 8GHz | 27dBm | 47dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 12-CSMT (5x5) |
|
HMC347C8TRIC RF SWITCH SPDT 8GHZ 8CSMD |
0 |
|
Datasheet |
- | 8-CSOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | - | SPDT | 0Hz ~ 8GHz | 40dB | 2dB | 6GHz | 23dBm | 43dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 8-CSMD |
|

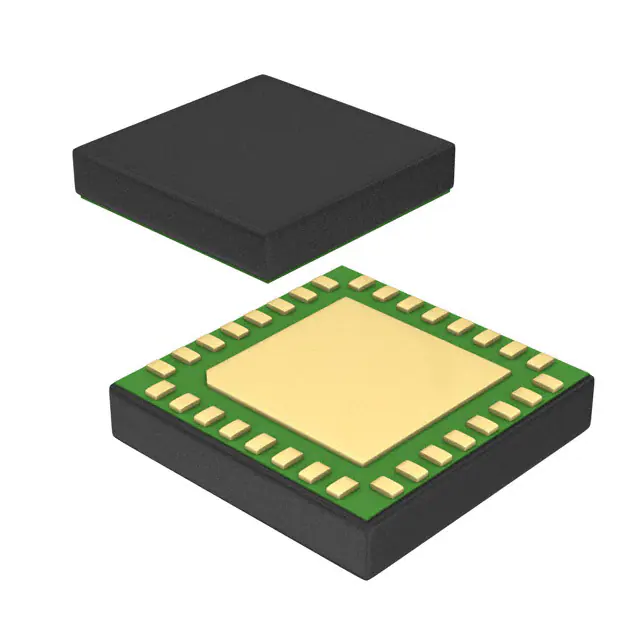

PE42540LGBD-ZIC RF SWITCH SP4T 8GHZ 32LGA |
0 |
|
Datasheet |
UltraCMOS® | 32-TFLGA Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | ATE | Absorptive | SP4T | 10MHz ~ 8GHz | 45dB | 0.8dB | 3GHz | 33dBm | 58dBm | - | 50Ohm | 3V ~ 3.55V | -40°C ~ 85°C | - | - | Surface Mount | 32-LGA (5x5) |
|
HMC232IC RF SWITCH SPDT 15GHZ DIE |
0 |
|
Datasheet |
- | Die | Bulk | Obsolete | VSAT | Absorptive | SPDT | 0Hz ~ 15GHz | 50dB | 2.2dB | 10GHz | 26dBm | 49dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|
|
HMC344IC RF SWITCH SP4T 8GHZ DIE |
0 |
|
Datasheet |
- | Die | Bulk | Obsolete | VSAT | Absorptive | SP4T | 0Hz ~ 8GHz | 39dB | 1.8dB | 6GHz | 21dBm | 40dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|
|
HMC347IC RF SWITCH SPDT 20GHZ DIE |
0 |
|
Datasheet |
- | Die | Bulk | Obsolete | VSAT | Absorptive | SPDT | 0Hz ~ 20GHz | 45dB | 1.7dB | 20GHz | 23dBm | 43dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|
HMC607IC RF SWITCH SPDT 15GHZ DIE |
0 |
|
Datasheet |
- | Die | Bulk | Obsolete | VSAT | Absorptive | SPDT | 0Hz ~ 15GHz | 60dB | 1.7dB | 10GHz | 26dBm | 49dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
HMC641IC RF SWITCH SP4T 18GHZ DIE |
0 |
|
Datasheet |
- | Die | Bulk | Obsolete | VSAT | Absorptive | SP4T | 0Hz ~ 18GHz | 40dB | 1.8dB | 18GHz | 24dBm | 40dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|
HMC641LC4IC RF SWITCH SP4T 20GHZ 24QFN |
0 |
|
Datasheet |
- | 24-TFQFN Exposed Pad | Strip | Obsolete | General Purpose | Absorptive | SP4T | 0Hz ~ 20GHz | 40dB | 2.3dB | 20GHz | 22dBm | 38dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 24-QFN (4x4) |
RF Switches Electronic Components
Explore RF Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
