RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPG2409T6X-AIC RF SWITCH SPDT 6GHZ 6TSON |
0 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Bulk | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 50MHz ~ 6GHz | 27dB | 0.65dB | 6GHz | 36dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-TSON |
|
UPG2409TB-AIC RF SWITCH SPDT 3.8GHZ 6-SMINI |
0 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | 802.11b/g/n | Reflective | SPDT | 500MHz ~ 3.8GHz | 19dB | 0.6dB | 3.8GHz | 37dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-SuperMiniMold |
|
UPG2413T6M-AIC RF SWITCH SP3T 3GHZ 12TSQFN |
0 |
|
Datasheet |
- | 12-XFQFN Exposed Pad | Bulk | Obsolete | 802.11b/g | Reflective | SP3T | 500MHz ~ 3GHz | 16dB | 0.6dB | 3GHz | 33dBm | - | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 12-TSQFN (2x2) |
|
UPG2415T6X-AIC RF SWITCH SPDT 6GHZ 6TSON |
0 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Bulk | Obsolete | WLAN | Reflective | SPDT | 50MHz ~ 6GHz | 26dB | 0.55dB | 6GHz | 35dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-TSON |
|

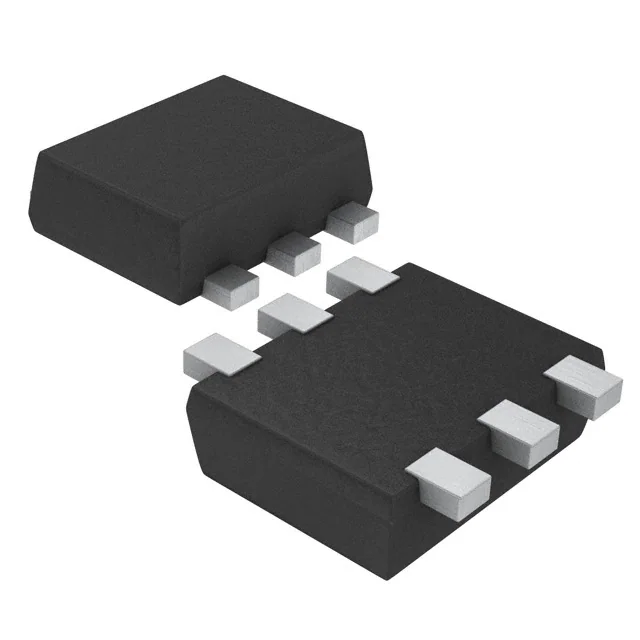

UPG2415TK-AIC RF SWITCH SPDT 6GHZ 6MINIMOLD |
0 |
|
Datasheet |
- | 6-SMD, Flat Leads | Bulk | Obsolete | WLAN | Reflective | SPDT | 500MHz ~ 6GHz | 26dB | 0.65dB | 6GHz | 34dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-Minimold |
|
4230-52IC RF SWITCH SPDT 3GHZ 8MSOP |
0 |
|
- |
UltraCMOS® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | Reflective | SPDT | 0Hz ~ 3GHz | 30dB | 0.55dB | 2GHz | 32dBm | 50dBm (min) | - | 50Ohm | 2.7V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
4231-52IC RF SWITCH SPDT 1.3GHZ 8MSOP |
0 |
|
- |
UltraCMOS® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | Reflective | SPDT | 0Hz ~ 1.3GHz | 42dB | 0.8dB | 1GHz | 32dBm | 50dBm (min) | Single Line Control | 75Ohm | 2.7V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
4244-52IC RF SWITCH SPDT 3GHZ 8MSOP |
0 |
|
- |
UltraCMOS® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | Reflective | SPDT | 0Hz ~ 3GHz | 29dB | 0.6dB | 2GHz | 27dBm | 45dBm | Single Line Control | 50Ohm | 2.7V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
4246-52IC RF SWITCH SPST 5GHZ 6DFN |
0 |
|
Datasheet |
UltraCMOS® | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SPST | 1MHz ~ 5GHz | 44dB | 1.3dB | 5GHz | 33dBm | 50dBm (min) | Single Line Control | 50Ohm | 2.7V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (3x3) |
|
PE42556DI-ZIC RF SWITCH SPDT 13.5GHZ 14FLP |
0 |
|
- |
UltraCMOS®, HaRP™ | 14-XFBGA, FCDSBGA | Tape & Reel (TR) | Obsolete | Cellular | Absorptive | SPDT | 9kHz ~ 13.5GHz | 17.5dB | 1.74dB | 13.5GHz | 33dBm | 56dBm | - | 50Ohm | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 14-FlipChip (1.1x2) |
|
4268-52IC RF SWITCH SP6T 3GHZ 20QFN |
0 |
|
- |
UltraCMOS® | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Reflective | SP6T | 100MHz ~ 3GHz | 24dB | 1.1dB | 1.9GHz | 20dBm (min) | 40dBm | DC Blocked | 50Ohm | 2.4V ~ 2.8V | -40°C ~ 85°C | - | - | Surface Mount | 20-QFN (4x4) |
|
|
AFEM-S102-BLKGIC RF SWITCH SP3T 2.5GHZ 12QFN |
0 |
|
Datasheet |
- | 12-UFQFN Exposed Pad | Bag | Obsolete | 802.11b/g/n | - | SP3T | 2.4GHz ~ 2.5GHz | 27dB | 0.6dB | 2.4GHz | 31dBm | 43dBm | - | 50Ohm | 3V | -30°C ~ 85°C | - | - | Surface Mount | 12-QFN (2.2x2.2) |
|
|
AFEM-S102-TR1GIC RF SWITCH SP3T 12QFN |
0 |
|
Datasheet |
- | 12-UFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | 802.11b/g/n | - | SP3T | - | 27dB | 0.6dB | 2.4GHz | 31dBm | 43dBm | - | 50Ohm | 3V | -30°C ~ 85°C | - | - | Surface Mount | 12-QFN (2.2x2.2) |
|
|
BF1118WR,115IC RF SWITCH 1GHZ CMPAK-4 |
0 |
|
Datasheet |
- | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | General Purpose | - | - | 0Hz ~ 1GHz | 30dB (min) | 2.5dB (max) | 1GHz | - | - | - | 50Ohm | - | - | - | - | Surface Mount | CMPAK-4 |
|
|
UPG2422TK-AIC RF SWITCH SPDT 6GHZ 6MINIMOLD |
0 |
|
Datasheet |
- | 6-SMD, Flat Leads | Bulk | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 50MHz ~ 6GHz | 28dB | 0.55dB | 6GHz | 31dBm | 57dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-Minimold |
|
|
UPG2422TK-E2-AIC RF SWITCH SPDT 6GHZ 6MINIMOLD |
0 |
|
- |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 50MHz ~ 6GHz | 28dB | 0.55dB | 6GHz | 31dBm | 57dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-Minimold |
|
SKY13276-334IC RF SWITCH SPDT 6GHZ 6LGA |
0 |
|
Datasheet |
- | 6-VFLGA | Tape & Reel (TR) | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 100MHz ~ 6GHz | 21dB | 0.7dB | 5.85GHz | 34dBm | 55dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 6-LGA (1.5x1.2) |
|
HMC221AEIC RF SWITCH SPDT 3GHZ SOT23-6 |
0 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | General Purpose | Reflective | SPDT | 0Hz ~ 3GHz | 18dB | 0.8dB | 3GHz | 29dBm | 43dBm | - | 50Ohm | 3V ~ 8V | -40°C ~ 105°C | - | - | Surface Mount | SOT-23-6 |
|
HMC241LP3ETRIC RF SWITCH SP4T 4GHZ 16QFN |
0 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SP4T | 0Hz ~ 4GHz | 30dB | 1.2dB | 4GHz | 26dBm | 45dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
HMC321LP4ETRIC RF SWITCH SP8T 8GHZ 24QFN |
0 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SP8T | 0Hz ~ 8GHz | 25dB | 2.7dB | 8GHz | 23dBm | 40dBm | - | 50Ohm, 75Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QFN (4x4) |
