RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE1732B11033RF FILTER BAND PASS 1.732GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.732GHz Center | 45MHz | Band Pass | 0.1dB | 1dB | Chassis Mount | 4.125" L x 1.500" W (104.78mm x 38.10mm) | 1.000" (25.40mm) |
|
AE125H9912RF FILTER HI PASS 125MHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 125MHz (Cutoff) | 387MHz | High Pass | - | 1dB | Chassis Mount | 4.500" L x 1.250" W (114.30mm x 31.75mm) | 1.000" (25.40mm) |
|
AE930B11401RF FILTER BANDPASS 930MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 930MHz Center | 20MHz | Band Pass | - | 1.6dB | Chassis Mount | 5.512" L x 4.450" W (140.00mm x 113.02mm) | 2.213" (56.20mm) |
|
AE66B11185RF FILTER BAND PASS 66MHZ 6DIP |
100 |
|
Datasheet |
- | 6-DIP Module | Box | Active | 66MHz Center | - | Band Pass | - | 1dB | Through Hole | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 1.229" (31.21mm) |
|
|
AE512L8844RF FILTER LOW PASS 512MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 512MHz (Cutoff) | 512MHz | Low Pass | - | 1dB | Chassis Mount | 5.000" L x 1.000" W (127.00mm x 25.40mm) | 0.762" (19.35mm) |
|

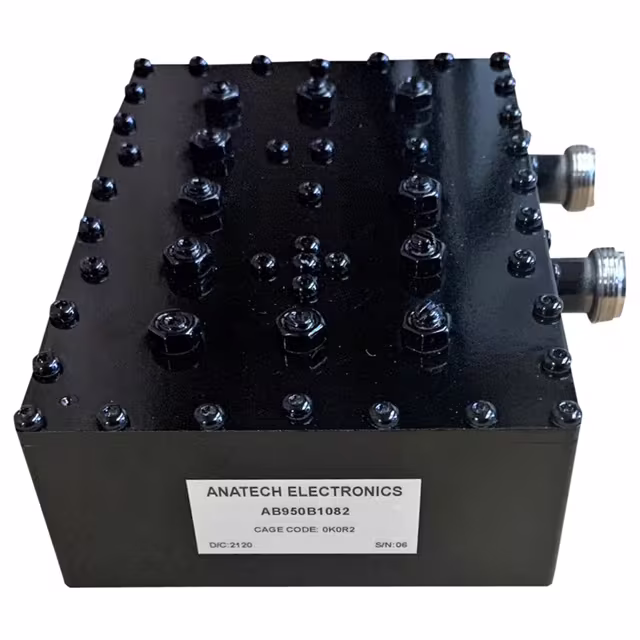

AB950B1082RF FILTER BANDPASS 950MHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 950MHz Center | 20MHz | Band Pass | - | 0.7dB | Chassis Mount | 5.177" L x 3.504" W (131.50mm x 89.00mm) | 1.811" (46.00mm) |
|
AE260L9086RF FILTER LOW PASS 260MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 260MHz (Cutoff) | - | Low Pass | - | 0.5dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AB2355B1328RF FILTER BANDPASS 2.355GHZ TNC |
100 |
|
Datasheet |
- | TNC In-Line Module | Box | Active | 2.355GHz Center | 20MHz | Band Pass | - | 1.2dB | Chassis Mount | 2.638" L x 1.654" W (67.00mm x 42.00mm) | 1.220" (31.00mm) |
|
|
AB2350B1329RF FILTER BANDPASS 2.35GHZ TNC |
100 |
|
Datasheet |
- | TNC In-Line Module | Box | Active | 2.35GHz Center | 300MHz | Band Pass | - | 1.2dB | Chassis Mount | 3.445" L x 1.831" W (87.50mm x 46.50mm) | 1.220" (31.00mm) |
|
|
AB1957B796RF FILTER BAND PASS 1.957GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.957GHz Center | 5MHz | Band Pass | - | 0.7dB | Chassis Mount | 4.125" L x 1.500" W (104.78mm x 38.10mm) | 1.000" (25.40mm) |
|
|
AB1764B816RF FILTER BAND PASS 1.746GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.746GHz Center | 2MHz | Band Pass | - | 2dB | Chassis Mount | 4.500" L x 1.750" W (114.30mm x 44.45mm) | 1.000" (25.40mm) |
|
|
AB2409B1346RF FILTER BANDPASS 2.4095GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.4095GHz Center | 195MHz | Band Pass | - | 0.5dB | Chassis Mount | 3.150" L x 2.165" W (80.00mm x 55.00mm) | 1.220" (31.00mm) |
|
|
AB2415B1330RF FILTER BANDPASS 2.415GHZ TNC |
100 |
|
Datasheet |
- | TNC In-Line Module | Box | Active | 2.415GHz Center | 20MHz | Band Pass | - | 1.2dB | Chassis Mount | 2.638" L x 1.654" W (67.00mm x 42.00mm) | 1.220" (31.00mm) |
|
|
AE3500H9771RF FILTER HI PASS 3.5GHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 3.5GHz (Cutoff) | 5.5GHz | High Pass | - | 2dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AB2305B993RF FILTER BAND PASS 2.305GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.305GHz Center | 10MHz | Band Pass | 0.2dB | 1dB | Chassis Mount | 6.181" L x 5.512" W (157.00mm x 140.00mm) | 1.587" (40.30mm) |
|
|
AB915B661RF FILTER BANDPASS 915MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 915MHz Center | 26MHz | Band Pass | - | 1.5dB | Chassis Mount | 5.512" L x 4.449" W (140.00mm x 113.00mm) | 2.224" (56.50mm) |
|

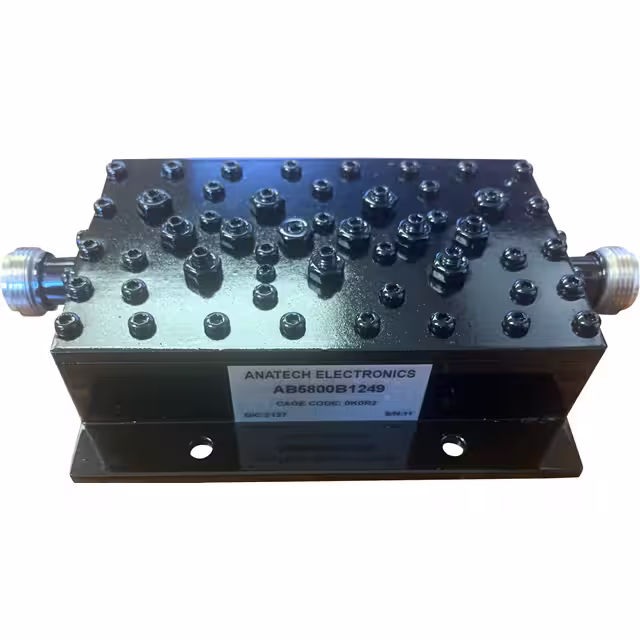

AB5800B1249RF FILTER BANDPASS 5.8GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 5.8GHz Center | 200MHz | Band Pass | 0.2dB | 0.5dB | Chassis Mount | 4.000" L x 3.449" W (101.60mm x 87.60mm) | 1.260" (32.00mm) |
|
AE720B10946RF FILTER BANDPASS 720MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 720MHz Center | 3MHz | Band Pass | 1dB | 3dB | Chassis Mount | 3.200" L x 1.000" W (81.28mm x 25.40mm) | 1.000" (25.40mm) |
|
|
AE50B11186RF FILTER BAND PASS 50MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 50MHz Center | 2MHz | Band Pass | - | 16dB | Chassis Mount | 1.496" L x 0.500" W (38.00mm x 12.70mm) | 0.412" (10.46mm) |
|
|
AB2447B1091RF FILTER BAND PASS 2.447GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.447GHz Center | 12MHz | Band Pass | 0.5dB | 2.5dB | Chassis Mount | 10.071" L x 1.496" W (255.80mm x 38.00mm) | 0.984" (25.00mm) |
