RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB8150B1240RF FILTER BAND PASS 8.15GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 8.15GHz Center | 500MHz | Band Pass | - | 1.5dB | Chassis Mount | 3.268" L x 1.248" W (83.00mm x 31.70mm) | 0.709" (18.00mm) |
|
AE650L8826RF FILTER LOW PASS 650MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 650MHz (Cutoff) | 650MHz | Low Pass | - | 1dB | Chassis Mount | 4.000" L x 0.600" W (101.60mm x 15.24mm) | 0.512" (13.00mm) |
|
AE225B11390RF FILTER BANDPASS 225MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 225MHz Center | 30MHz | Band Pass | - | 2dB | Chassis Mount | 4.000" L x 1.000" W (101.60mm x 25.40mm) | 1.000" (25.40mm) |
|
|
AE126NS2044RF FILTER BANDSTOP 126MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 126MHz Center | - | Band Stop | - | 1dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|

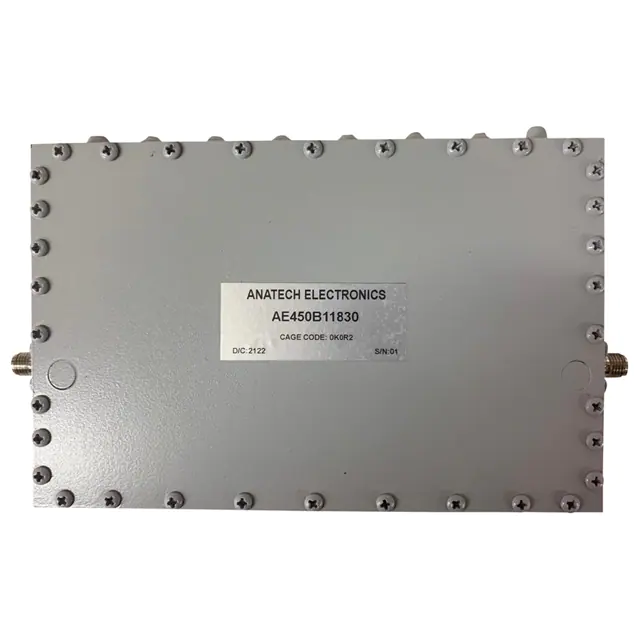

AE450B11830RF FILTER BANDPASS 450MHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 450MHz Center | 40MHz | Band Pass | - | - | Chassis Mount | - | - |
|
|
AE2492B11322RF FILTER BAND PASS 2.492GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.492GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.843" L x 2.795" W (123.00mm x 71.00mm) | 1.240" (31.50mm) |
|
|
AB8150B1229RF FILTER BAND PASS 8.15GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 8.15GHz Center | 500MHz | Band Pass | 0.4dB | 1dB | Chassis Mount | 4.724" L x 1.063" W (120.00mm x 27.00mm) | 0.591" (15.00mm) |
|
AE12500H9911RF FILTER HIGH PASS 12.5GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 12.5GHz (Cutoff) | 12GHz | High Pass | - | 2dB | Chassis Mount | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 0.394" (10.00mm) |
|
|
AE584B11193RF FILTER BANDPASS 584MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 584MHz Center | 228MHz | Band Pass | - | 2.5dB | Chassis Mount | 4.000" L x 0.600" W (101.60mm x 15.24mm) | 0.500" (12.70mm) |
|
|
AE1200L9230RF FILTER LOW PASS 1.2GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.2GHz (Cutoff) | - | Low Pass | - | 1.2dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE2500B11688RF FILTER BANDPASS 2.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.5GHz Center | 53MHz | Band Pass | 0.4dB | 1dB | Chassis Mount | 2.750" L x 1.700" W (69.85mm x 43.18mm) | 0.762" (19.35mm) |
|
|
AE125H9779RF FILTER HI PASS 125MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 125MHz (Cutoff) | 875MHz | High Pass | - | 0.5dB | Chassis Mount | 4.500" L x 1.250" W (114.30mm x 31.75mm) | 1.000" (25.40mm) |
|
|
AE387B10680RF FILTER BANDPASS 387MHZ MODULE |
95 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 387MHz Center | 225MHz | Band Pass | - | 3dB | Chassis Mount | 4.000" L x 0.500" W (101.60mm x 12.70mm) | 0.500" (12.70mm) |
|
AE2585B1368RF FILTER BAND PASS 2.585GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.585GHz Center | 10MHz | Band Pass | - | 3dB | Chassis Mount | 2.362" L x 2.283" W (60.00mm x 58.00mm) | 1.110" (28.20mm) |
|
AB915B1237RF FILTER BANDPASS 915MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 915MHz Center | 125MHz | Band Pass | - | 1dB | Chassis Mount | 5.520" L x 2.090" W (140.21mm x 53.09mm) | 1.100" (27.94mm) |
|
|
AE398B9525RF FILTER BANDPASS 398MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 398MHz Center | 10MHz | Band Pass | - | 1.15dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.762" (19.35mm) |
|
AE4900B10922RF FILTER BANDPASS 4.9GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 4.9GHz Center | 200MHz | Band Pass | - | 1.5dB | Chassis Mount | 5.750" L x 4.500" W (146.05mm x 114.30mm) | 1.050" (26.67mm) |
|
|
AB6750B718RF FILTER BAND PASS 6.75GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6.75GHz Center | 900MHz | Band Pass | - | 1.5dB | Chassis Mount | 2.283" L x 1.575" W (58.00mm x 40.00mm) | 0.984" (25.00mm) |
|
|
AE24L8750RF FILTER LOW PASS 24MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 24MHz (Cutoff) | 24MHz | Low Pass | - | 1.3dB | Chassis Mount | 3.750" L x 1.000" W (95.25mm x 25.40mm) | 0.500" (12.70mm) |
|
|
AB2485B1313RF FILTER BAND PASS 2.485GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.485GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
