RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE3910B11469RF FILTER BAND PASS 3.91GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.91GHz Center | 15MHz | Band Pass | - | 3.5dB | Chassis Mount | 2.640" L x 1.650" W (67.06mm x 41.91mm) | 0.990" (25.15mm) |
|
AB9500B1354RF FILTER BANDPASS 9.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 9.5GHz Center | 400MHz | Band Pass | - | 2dB | Chassis Mount | 1.791" L x 0.591" W (45.50mm x 15.00mm) | 0.354" (9.00mm) |
|
|
AE160B5108RF FILTER BANDPASS 160MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 160MHz Center | 16MHz | Band Pass | - | 2dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE7000SSH6561RF FILTER HIGH PASS 7GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 7GHz (Cutoff) | 17GHz | High Pass | - | 2dB | Chassis Mount | 1.181" L x 0.827" W (30.00mm x 21.00mm) | 0.394" (10.00mm) |
|
|
AE30L8933RF FILTER LOW PASS 30MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 30MHz (Cutoff) | 30MHz | Low Pass | - | 0.5dB | Chassis Mount | 6.000" L x 2.000" W (152.40mm x 50.80mm) | 1.500" (38.10mm) |
|
AB1300B469RF FILTER BANDPASS 1.3GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.3GHz Center | - | Band Pass | - | 2dB | Chassis Mount | 8.346" L x 4.252" W (212.00mm x 108.00mm) | 1.378" (35.00mm) |
|
|
AE1500L9231RF FILTER LOW PASS 1.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.5GHz (Cutoff) | - | Low Pass | - | 1.2dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AB2315B994RF FILTER BAND PASS 2.315GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.315GHz Center | 10MHz | Band Pass | 0.2dB | 1dB | Chassis Mount | 6.181" L x 5.512" W (157.00mm x 140.00mm) | 1.575" (40.00mm) |
|
|
AE4800B11587RF FILTER BANDPASS 4.8GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.8GHz Center | 1.6GHz | Band Pass | - | 1.5dB | Chassis Mount | 1.693" L x 0.748" W (43.00mm x 19.00mm) | 0.327" (8.30mm) |
|
|
AE285L8698RF FILTER LOW PASS 285MHZ BNC |
100 |
|
- |
- | BNC In-Line Module | Box | Active | 285MHz (Cutoff) | 285MHz | Low Pass | - | 1dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AE1000B10426RF FILTER BAND PASS 1GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 1GHz Center | 50MHz | Band Pass | - | 3dB | Chassis Mount | 2.000" L x 0.500" W (50.80mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AE154B10097RF FILTER BAND PASS 154MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 154MHz Center | 4MHz | Band Pass | - | 2dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|

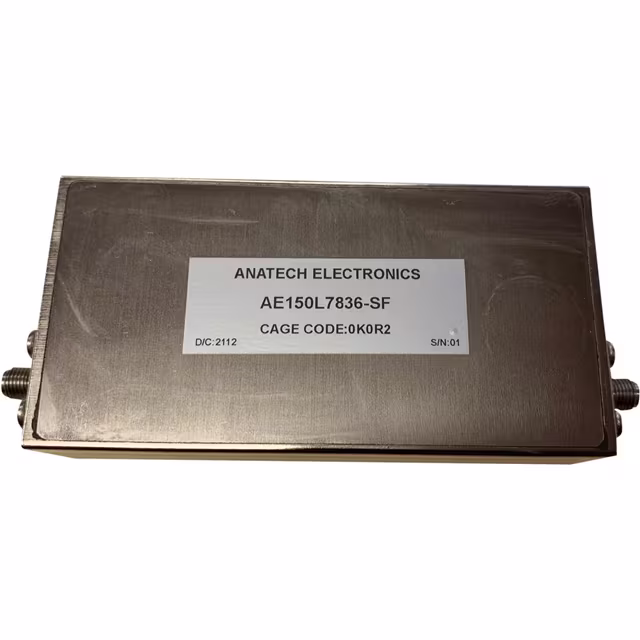

AE150L7836-SFRF FILTER LOW PASS 150MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 150MHz (Cutoff) | - | Low Pass | - | 0.75dB | Chassis Mount | 4.000" L x 2.000" W (101.60mm x 50.80mm) | 1.000" (25.40mm) |
|
|
AE1100L9229RF FILTER LOW PASS 1.1GHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 1.1GHz (Cutoff) | - | Low Pass | - | 1.5dB | Chassis Mount | 1.500" L x 0.380" W (38.10mm x 9.65mm) | 0.380" (9.65mm) |
|
|
AE1800L9232RF FILTER LOW PASS 1.8GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.8GHz (Cutoff) | - | Low Pass | - | 1.2dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE70NS2191RF FILTER BAND STOP 70MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 70MHz Center | 4MHz | Band Stop | - | 1dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AE9650B10915RF FILTER BAND PASS 9.65GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 9.65GHz Center | 900MHz | Band Pass | - | 1.7dB | Chassis Mount | 4.000" L x 1.500" W (101.60mm x 38.10mm) | 0.750" (19.05mm) |
|
|
AE143B11205RF FILTER BANDPASS 143MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 143MHz Center | 20MHz | Band Pass | - | 1dB | Chassis Mount | 4.000" L x 1.000" W (101.60mm x 25.40mm) | 1.000" (25.40mm) |
|
|
AB5000B1258RF FILTER BAND PASS 5GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 5GHz Center | 205MHz | Band Pass | 0.2dB | 3dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|
|
AE4950B11497RF FILTER BAND PASS 4.95GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.95GHz Center | 100MHz | Band Pass | 0.25dB | 0.8dB | Chassis Mount | 3.260" L x 0.752" W (82.80mm x 19.10mm) | 1.094" (27.80mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
