RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

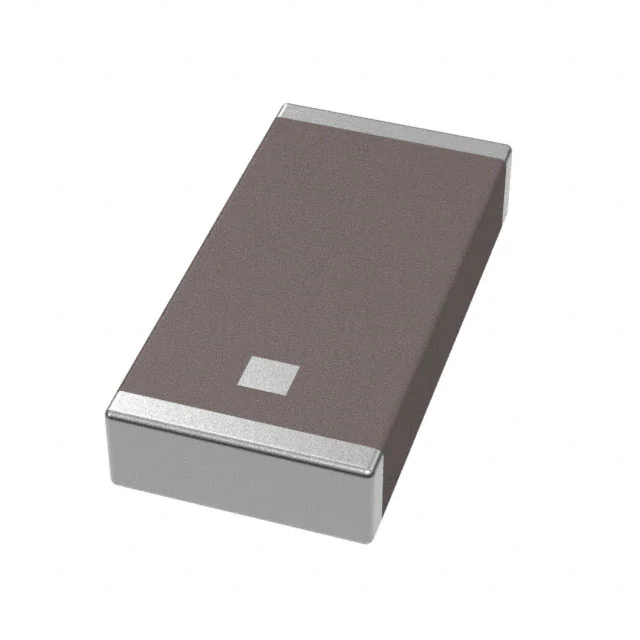

ACAG0301-15752450-TRF ANT 1.575GHZ/2.4GHZ CHIP SLD |
8,624 |
|
Datasheet |
ACAG | Tape & Reel (TR) | Active | Bluetooth, General ISM, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.5GHz | Chip | 2 | - | - | 1.21dBi, 3.18dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, GPS, ISM, Wi-Fi |
|
1002298ANTENNA WLAN |
373 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.4875GHz, 5.875GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz, 5.825GHz ~ 5.925GHz | Stamped Metal | 3 | 2 | - | 3.6dBi, 5.1dBi, 3.8dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.415" (10.55mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
RFPCA201018IM5B301RF ANT 5.5GHZ PCB TRACE IPEX MAL |
1,043 |
|
Datasheet |
- | Bulk | Active | - | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | PCB Trace | 1 | 2 | -10dB | 5.4dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.087" (2.20mm) | - |
|
A1000146AUTOMOTIVE WI-FI 6 & WI-FI 6E ST |
1,161 |
|
Datasheet |
A | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4425GHz, 3.55GHz, 5.4875GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.825GHz, 5.925GHz ~ 7.125GHz | Stamped Metal | 4 | 2, 2.2 | - | 1.7dBi, 4.21dBi, 4.1dBi, 3.8dBi | 0.5 W | - | Solder | - | - | - | Surface Mount | 0.169" (4.30mm) | Bluetooth, Wi-Fi, Wi-Fi 6, Wi-Fi 6E, WLAN, ZigBee |
|
7488940245RF ANT 2.4GHZ CHIP SOLDER SMD |
1,395 |
|
- |
WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, GSM, WLAN |
|
2108857-5PCB ANT, MHF4, 50MM, WI-FI 6E TR |
6,477 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
2344656-6WLAN DUAL BAND ANTENNA FPC V 100 |
23,862 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
|
2108965-6FPC ANT, MHF 4L, 100MM, UWB 6~8. |
2,488 |
|
Datasheet |
- | Bag | Active | Ultra Wide Band | Wide Band | 7.2GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 2.1 | - | 3.8dBi | 10 W | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
|
W3225ANT CERAMIC PATC H 25X25X4MM GPS |
1,600 |
|
Datasheet |
Ceramic Patch | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | - | -10dB | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
RFMTA080217NNUB002RF ANT 315MHZ METAL |
1,525 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 315MHz | - | Helical | 1 | 2 | -10dB | - | - | - | Solder | - | - | - | Surface Mount | 1.500" (38.10mm) | - |
|
|
2108965-8FPC ANT, MHF 4L, 200MM, UWB 6~8. |
2,490 |
|
Datasheet |
- | Bag | Active | Ultra Wide Band | Wide Band | 7.2GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 1.8 | - | 3.1dBi | 10 W | Cable - 200mm | MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
|
2108965-4FPC ANT, MHF, 200MM, UWB 6~8.5 G |
2,469 |
|
Datasheet |
- | Bag | Active | Ultra Wide Band | Wide Band | 7.2GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 2 | - | 3.4dBi | 10 W | Cable - 200mm | MHF | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
ANT-916-USP-TRF ANT 916MHZ CHIP SOLDER SMD |
1,990 |
|
Datasheet |
microSplatch™ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 904MHz ~ 928MHz | Chip | 1 | 2 | - | 0.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.100" (2.54mm) | ISM, LoRa, Sensor Networks, SigFox |
|
W3016RF ANT 868MHZ CHIP SOLDER SMD |
7,321 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 844MHz ~ 904MHz | Chip | 1 | - | -15dB | -2.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | - |
|
2108783-25G/4G/3G/2G, NB-IOT, CAT-M, GNSS |
12,750 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 780MHz, 1.515GHz, 2.2GHz, 3.55GHz | 698MHz ~ 862MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Chip | 4 | 2 | - | 4.9dBi, 2dBi, 2.5dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.125" (3.18mm) | CDMA, GSM, LTE |
|
7488912455RF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
1,000 |
|
Datasheet |
WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz | Chip | 2 | 2.2 | - | 1dBi, -1.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, GSM, WLAN |
|
W3110RF ANT 1.575GHZ HELICAL SLDR SMD |
581 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Helical | 1 | - | -16dB | 1.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.217" (5.50mm) | GPS |
|
1002436EMBEDDED ANTENNA, LTE, PCB, VERT |
2,712 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.955GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | PCB Trace | 3 | 2.5, 3.5 | - | 2.3dBi, 3.2dBi, 3dBi | 2 W | - | Solder | - | - | - | Through Hole | 0.063" (1.60mm) | Cat-M, Cellular, GSM, LPWA, LTE, LTE-M, LoRa, NB-IoT, Sigfox |
|
|
W3047ARF ANT 850MHZ/1.9GHZ CHIP SLD |
7,184 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 1.9GHz | 869MHz ~ 894MHz, 1.93GHz ~ 1.99GHz | Chip | 2 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | GSM |
|
W3117RF ANT 881MHZ HELICAL SOLDER SMD |
437 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 881MHz | 869MHz ~ 894MHz | Helical | 1 | - | -9dB | 0dBi | - | - | Solder | - | - | - | Surface Mount | 0.098" (2.50mm) | - |
