RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2108857-3PCB ANT, MHF, 150MM, WI-FI 6E TR |
0 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 150mm | MHF | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
|
H2U86D1K1P0100DUAL BAND WIFI MONOPOLE CHIP ANT |
1,110 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | 2, 2.5 | - | 1.8dBi, 2.4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 802.11a/b/g/n/ac, Wi-Fi |
|
|
W3716RF ANT 2.45GHZ PCB TRACE SLDR |
2,409 |
|
Datasheet |
Embedded PCB Ant | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.6 | - | 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | General Purpose |
|
AMCA52-2R510G-S1F-T4RF ANT 2.5GHZ CHIP SOLDER SMD |
3,933 |
|
Datasheet |
AMCA | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.5GHz | 2.41GHz ~ 2.61GHz | Chip | 1 | 2 | - | 2.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WiMax™, WLAN |
|
ANT165550ST-1003A1RF ANT 5.6GHZ CHIP SOLDER SMD |
3,880 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | SHF (f > 4GHz) | 5.6GHz | 5.15GHz ~ 5.9GHz | Chip | 1 | 1.6 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | WLAN |
|
|
ANT162442DT-2200A1RF ANT 2.4GHZ/5.5GHZ CHIP SLD |
3,450 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | Wide Band | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | 1.5, 1.9 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
|
SLDA31-2R450G-36TFMULTILAYER LTCC ANTENNA, 2400~25 |
2,900 |
|
Datasheet |
SLDA | Tape & Reel (TR) | Active | Bluetooth | - | 2.45GHz | - | Chip | 1 | 2 | - | 2.5dBi | 2 W | LNA, Filter | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, WLAN |
|
|
H2U36G4K1B0100WIFI/BT 2400-2500 MHZ MONOPOLE C |
1,723 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT162442ST-1000AM1CERAMIC ANTENNA FOR 2400-2484MHZ |
4,000 |
|
Datasheet |
ANT | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 3 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
W3403ANT EMBD METAL STAMP 868-920MHZ |
2,864 |
|
Datasheet |
EMBEDDED SMT | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 894MHz | 868MHz ~ 920MHz | Stamped Metal | 1 | 2 | -12dB | -1.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.189" (4.80mm) | Sigfox |
|
|
0900AD47A2450001ERF ANT 895MHZ/2.4GHZ CHIP 900M |
1,423 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 895MHz, 2.4GHz | - | Chip | 2 | - | -6dB | 2.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | - |
|
|
W3014RF ANT 920MHZ CHIP SOLDER SMD |
949 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 920MHz | 880MHz ~ 960MHz | Chip | 1 | - | -7dB | -0.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | - |
|
|
A1001312AUTOMOTIVE WI-FI/BLUETOOTH/ZIGBE |
3,881 |
|
Datasheet |
A | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 7.25GHz | 2.4GHz ~ 2.485GHz, 6GHz ~ 8.5GHz | Chip | 2 | 1.8, 2 | - | 1.88dBi, 4.8dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, UWB, Wi-Fi, ZigBee |
|
|
2108891-1PCB ANT, TAB MOUNT, WI-FI 6E TRI |
4,706 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | - | - | - | - | - | Through Hole | 0.394" (10.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-2.4-PW-LPNANT 2.4GHZ HELICAL SCREW MOUNT |
2,052 |
|
Datasheet |
ANT-2.4-PW-LPN | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Helical | 1 | 2 | - | 4.5dBi | 15 W | - | Solder | - | - | - | Screw Mount | 1.846" (46.90mm) | 802.11, Bluetooth, ISM, U-NII, Wi-Fi, WLAN, Zigbee™ |
|
W3078RF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
1,388 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.484GHz, 4.95GHz ~ 5.85GHz | Chip | 2 | - | -10dB, -6dB | 1.7dBi, 4.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | WLAN, Zigbee™ |
|
2108832-1CHIP ANT., SMD, BT/WI-FI 2.4GHZ |
3,481 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.8 | - | 1.8dBi | - | - | - | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

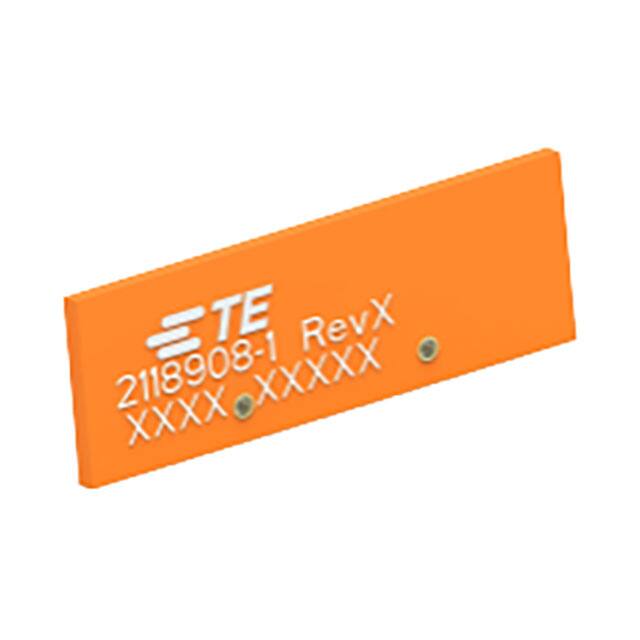

2118908-2PCB,WLAN TRIPLE BAND TAPE & REEL |
1,857 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 2.3dBi, 2.8dBi | - | - | - | - | - | - | Surface Mount | 0.030" (0.76mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W3062ARF ANT 1.575GHZ CHIP SOLDER SMD |
2,053 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Chip | 1 | - | -10dB | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | GPS |
|
2118908-1PCB WLAN TRIPLE BAND BULK PACKAG |
215 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 2.3dBi, 2.8dBi | - | - | - | - | - | - | Surface Mount | 0.030" (0.76mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
