RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-868-CHP-TRF ANT 868MHZ CHIP SOLDER SMD |
11,789 |
|
Datasheet |
CHP | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 873MHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.067" (1.70mm) | ISM, LoRa, Sensor Networks, SigFox |
|
W24-ASMA-MRF ANT 2.4GHZ WHIP TILT SMA MALE |
1,306 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | -17dBi | 2.15dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 2.598" (66.00mm) | WLAN |
|
W24-RSMA-MRF ANT 2.4GHZ WHIP RA SMA MALE |
1,129 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 1.5 | -17dBi | 2.15dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 1.829" (46.46mm) | WLAN |
|
W24-SSMA-MRF ANT 2.4GHZ WHIP STR SMA MALE |
637 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | -17dBi | 2.15dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 1.969" (50.00mm) | WLAN |
|
NN02-224RUN MXTEND MULTIBAND ANTENNA |
43,361 |
|
Datasheet |
RUN mXTEND™ | Tape & Reel (TR) | Active | Bluetooth, Cellular, Navigation, WiFi | Ultra Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz, 3.5GHz, 3.7GHz | 824MHz ~ 5.875GHz | Chip | 14 | 3 | - | 1.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.094" (2.40mm) | BT, DCS, GNSS, GSM, LTE, PCS, UMTS, WiFi DB |
|
W3006RF ANT 2.4GHZ/5.5GHZ CHIP SLD |
24,191 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -8dB, -10dB | 3.2dBi, 4.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | WLAN, Zigbee™ |
|
ANT-916-CHP-TRF ANT 916MHZ CHIP SOLDER SMD |
5,251 |
|
Datasheet |
CHP | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 911MHz ~ 921MHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.067" (1.70mm) | ISM, LoRa, Sensor Networks, SigFox |
|
EFF6989A3S-19MHF1EMBED,REVIE700,MHF1 |
709 |
|
Datasheet |
Revie Flex 700 | Bulk | Active | Cellular | Wide Band | 761MHz, 859MHz, 920MHz, 1.45GHz, 1.62GHz, 1.89GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz, 3.75GHz, 5.45GHz | 698MHz ~ 6GHz | - | 12 | 2.1, 2.4, 2, 2.3, 1.9, 1.8, 1.7, 1.4, 1.7, 2.1, 1.7, 1.5 | - | 0.5dBi, 0.9dBi, 2dBi, 3.7dBi, 4.1dBi, 3.6dBi, 3.5dBi, 3.7dBi, 3.4dBi, 3dBi, 2.4dBi, 4dBi | 5 W | Cable - 190mm | U.FL | - | - | - | Adhesive | 0.008" (0.20mm) | CAT-M1, Cellular, LTE, NB-IOT, 4G, 5G |
|
M830120RF ANT 1.561GHZ/1.575GHZ CHIP |
14,695 |
|
- |
Savvi™ | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 3 | 1.7 | - | 1.78dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Beidou, GLONASS, GPS |
|
M830520RF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
5,232 |
|
Datasheet |
Savvi™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz | Chip | 2 | 2.6, 3 | - | 1.1dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.052" (1.33mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W3796RF ANT 829MHZ/1.575GHZ FLAT BAR |
10,216 |
|
Datasheet |
Domino | Tape & Reel (TR) | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.9GHz, 2.5GHz | 698MHz ~ 960MHz, 1.43GHz ~ 1.66GHz, 1.69GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Bar | 4 | 3 | -6dB | 1.5dBi, 2dBi, 5.5dBi, 5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | GPS, LTE |
|

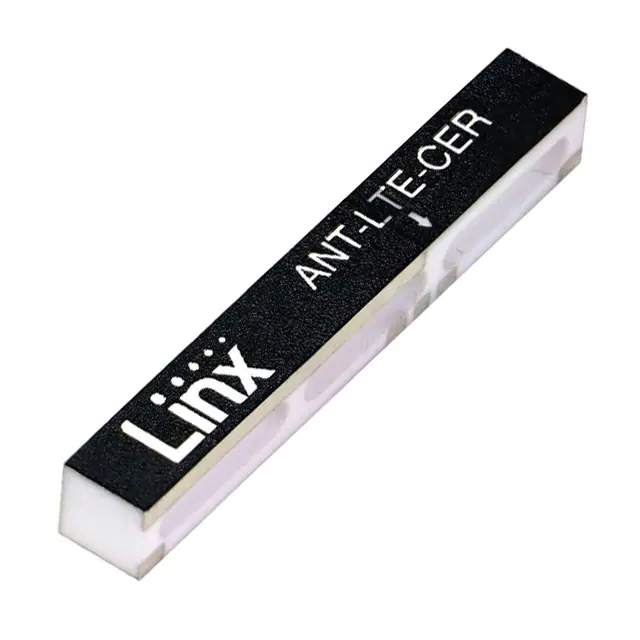

ANT-LTE-CER-TRF ANT 829MHZ/1.94GHZ CHIP SLD |
12,162 |
|
Datasheet |
CER | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz, 2.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz | Chip | 4 | 4, 3.2, 2.5, 2.5 | - | 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.203" (5.15mm) | CAT-M1, Cellular, LTE, NB-IOT, 3G, 4G |
|
1461530050RF ANT 2.4/5GHZ FLAT PATCH 50MM |
7,470 |
|
Datasheet |
146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 3.2dBi, 4.75dBi | 2 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
ANT060EXTERNAL ANTENNA WITH PANEL MOUN |
2,006 |
|
Datasheet |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 6dBi | 10 W | - | SMA | - | - | - | Panel Mount | 7.677" (195.00mm) | - |
|
2072350100824 2170MHZ CELLULAR FLEXIBLE AN |
6,360 |
|
Datasheet |
207235 | Tray | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -4dB, -6dB | 0dBi, 4.3dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
H2B1PC1A1C095LDUAL BAND WIFI 2400-2500 4900-59 |
1,091 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 0.9dBi, 3.8dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.020" (0.50mm) | 802.11a/b/g/n/ac, Wi-Fi |
|
|
1461530100RF ANT 2.4/5GHZ FLAT PATCH 100MM |
549 |
|
Datasheet |
146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 3dBi, 4.5dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
2111400100868/915MHZ FLEXIBLE ANTENNA100MM |
5,542 |
|
Datasheet |
211140 | Bulk | Active | 802.15.4, General ISM | UHF (300MHz ~ 1GHz) | 869MHz, 915MHz | 868MHz ~ 870MHz, 902MHz ~ 928MHz | PCB Trace | 2 | - | -5dB | 0.3dBi, 1dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | ISM, LoRa, LPWAN, Sigfox, Zigbee™ |
|
|
1575AT54A0010001ERF ANT 1.575GHZ/1.602GHZ CHIP |
2,394 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.605GHz | Chip | 2 | - | -9.5dB | 1.3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | GLONASS, GPS |
|
M20047-1RF ANT 1.559GHZ-1.606GHZ SMD |
15,997 |
|
Datasheet |
RADIONOVA® | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Integrated, Trace | 1 | 1.4 | -12dB | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | General Purpose |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
