RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T00046196 DBI LORA ANTENNA, 868MHZ (EU) |
0 |
|
Datasheet |
- | Box | Obsolete | - | UHF (300MHz ~ 1GHz) | 865MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 20 W | - | N Type | IP67 | - | - | Connector Mount | 33.465" (850.00mm) | General Purpose |
|
T00055353 DBI LORA ANTENNA, 915MHZ (NA) |
0 |
|
Datasheet |
- | Box | Obsolete | - | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Straight | 1 | 2 | - | 2.5dBi | 20 W | - | N Type | - | - | - | Connector Mount | 18.504" (470.00mm) | General Purpose |
|
X9001546-4GDSMBANTENNA EXTERNAL, 4G/LTE SWIVEL |
0 |
|
Datasheet |
- | Box | Obsolete | 802.15.4, Cellular | Wide Band | 700MHz, 750MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, 2.1GHz, 2.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Tilt | 8 | - | -6dB, -8.6dB | 1.61dBi, 1.58dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.614" (168.00mm) | LTE, LoRa, LPWAN, Sigfox |
|
100000137CXL 900-6LW/H |
0 |
|
Datasheet |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 8.2dBi | 150 W | - | N Type Female | - | - | - | Bracket Mount | 82.677" (210.00cm) | - |
|
70403803 ELEMENT YAGI 380-430 MHZ |
0 |
|
Datasheet |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 405MHz | 380MHz ~ 430MHz | Yagi, 3-Element | 1 | 1.5 | - | 5dBd | 150 W | Cable - 3m | N Type Female | - | - | - | Bracket Mount | 66.929" (170.00cm) | - |
|
110000105CXL 900-3LW/H |
0 |
|
Datasheet |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 5.2dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 27.559" (700.00mm) | - |
|
2030060101ANTENNA 2.4GHZ CERAMIC SMT |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

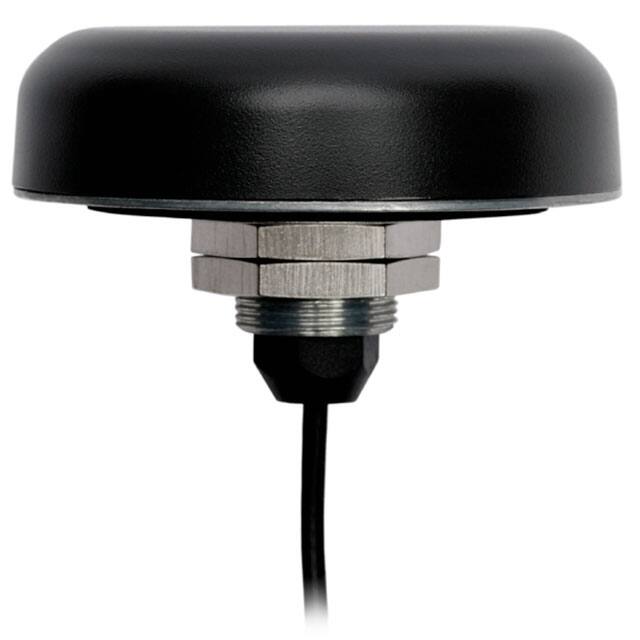

33-5362-6-10-05-PCOTW5362 SMART GNSS ANTENNA WITH U |
0 |
|
Datasheet |
TW5000 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | - | 1.559GHz ~ 1.606GHz | Dome | 1 | - | - | - | - | Cable - 5m | RJ12 | IP67 | - | - | Through Hole | 0.827" (21.00mm) | GNSS |
|
33-5262-6-10-05-PCOTW5262 SMART GNSS ANTENNA WITH U |
0 |
|
Datasheet |
TW5000 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | - | 1.559GHz ~ 1.606GHz | Dome | 1 | - | - | - | - | Cable - 5m | RJ12 | IP67 | - | - | Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
33-VSP6237L-58DUAL BAND (L1/L2) + L-BAND |
0 |
|
Datasheet |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

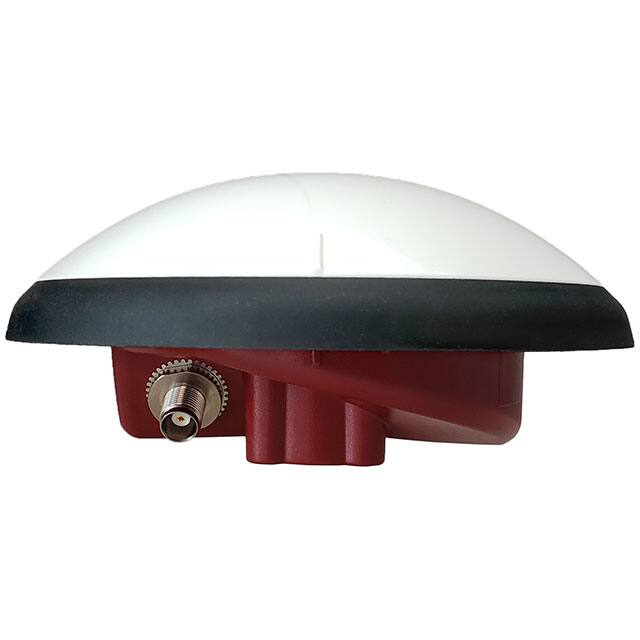

33-VSP6337-58TRIPLE BAND (L1/L2/L5) |
0 |
|
Datasheet |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
33-VSP6037-58FULL GNSS BANDWIDTH |
0 |
|
Datasheet |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NP925925 MHZ EDGESLOT OMNI (NP9000) |
0 |
|
Datasheet |
- | Box | Active | - | - | 925MHz | 890MHz ~ 960MHz | - | 1 | 2 | - | 2.5dBi | 125 W | Cable - 914.4mm | BNC Male | - | - | - | Adhesive | - | - |
|
NP836W836 MHZ EDGESLOT OMNI |
0 |
|
Datasheet |
- | Box | Active | - | - | 836MHz | 806MHz ~ 866MHz | - | 1 | 2 | - | 2.5dBi | 125 W | Cable - 914.4mm | BNC Male | - | - | - | Adhesive | - | - |
|
915-15YAGI 915 MHZ ANTENNA |
0 |
|
Datasheet |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | Yagi, 15-Element | 1 | 1.2 | - | 13dBi | 50 W | Cable - 300mm | N Type Male | - | - | - | Rear Mount | - | - |
|
VG1370BM15F1370-MHZ OMNI ANTENNA |
0 |
|
Datasheet |
- | Box | Active | - | - | 1.37GHz | 1.35GHz ~ 1.39GHz | - | 1 | 1.2 | - | - | 50 W | Cable - 4.57m | BNC Male | - | - | - | Pole Mount | - | - |
|
33-VSP6337-01TRIPLE BAND (L1/L2/L5) |
0 |
|
Datasheet |
VeroStar™ | Box | Obsolete | - | - | - | - | - | 3 | - | - | 37dB | - | LNA | - | - | - | - | Pole Mount | - | GNSS |
|
33-VSP6237-01DUAL BAND (L1/L2) |
0 |
|
Datasheet |
VeroStar™ | Box | Obsolete | - | - | - | - | - | 2 | - | - | 37dB | - | LNA | - | - | - | - | Pole Mount | - | GNSS |
|
33-VSP6037-01FULL GNSS BANDWIDTH |
0 |
|
- |
VeroStar™ | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | LNA | - | - | - | - | - | - | - |
|
SJS330065-17-001CBRS BROADBAND WIRELESS ANT |
0 |
|
Datasheet |
SJ | Bulk | Obsolete | Navigation | UHF (3GHz ~ 4GHz) | 3.55GHz | 3.3GHz ~ 3.8GHz | Whip, Straight | 1 | 1.5 | - | 17dBi | 30 W | - | N Type Female (2) | IP54 | - | - | Bracket Mount | 28.150" (715.00mm) | CBRS |
