RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20699501502.4/5 GHZ PCB ANTENNA ON METAL |
0 |
|
Datasheet |
206995 | Tray | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.5GHz | 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.5dB, -10dB | 2.6dBi, 3.4dBi | - | Cable - 150mm | - | - | - | - | Adhesive | 0.118" (3.00mm) | Bluetooth, WLAN, Zigbee™ |
|
33-5340-6-10-15ANT GPS/GLONASS/SBAS RS232 |
0 |
|
Datasheet |
Accutenna® | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | - | - | - | Cable - 15m | - | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | General Purpose |
|
33-5340-6-10-05ANT GPS/GLONASS/SBAS RS232 |
0 |
|
Datasheet |
Accutenna® | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | - | - | - | Cable - 5m | - | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | General Purpose |
|
APARM3503-SG3GNSS/GPS/GLONASS/BEIDOU PTCH ANT |
0 |
|
Datasheet |
APARM | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.598GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.592GHz ~ 1.604GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 4 | 1.8 | -10dB | 3dBi, 4dBi, 4.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
W1079ANT EXT 779-787MHZ RA SMA MALE |
0 |
|
Datasheet |
Stick Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 783MHz | 779MHz ~ 787MHz | Whip, Right Angle | 1 | 2 | - | 0dBi | 5 W | - | SMA Male | IP42 | - | - | Connector Mount | 5.040" (128.00mm) | ISM |
|
|
DELTA11A/XBNCM/S/S/21RF ANTENNA MALE |
0 |
|
Datasheet |
DELTA 11A | Bag | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 458MHz | - | Whip, Straight | 1 | 2 | - | 2.15dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.551" (90.20mm) | ISM |
|
2195767-1GNSS L1L2 10MM / PADGPS-I4H10G-1 |
0 |
|
Datasheet |
- | Box | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.575GHz | 1.224GHz ~ 1.23GHz, 1.572GHz ~ 1.587GHz | Ceramic Patch | 2 | - | -10dB | 5dBi, 4.5dBi | - | - | Pin | - | - | - | Adhesive | 0.585" (14.86mm) | GNSS |
|
|
DAS500MDMIMOANTENNA |
0 |
|
Datasheet |
PIMinator™ | Bulk | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 1.94GHz, 2.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 4 | 1.7 | - | 2dBi, 5dBi | 50 W | - | Connector | - | - | - | Panel Mount | 4.720" (119.88mm) | 2G, 3G, 4G, LTE, Wi-Fi, WiMax™ |
|
|
DASUTCCR500MDANTENNA |
0 |
|
Datasheet |
Clarity™ | Bulk | Obsolete | Cellular, WiFi | Wide Band | 784MHz, 1.947GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 5dBi, 7dBi | 40 W | Cable - 500mm | Mini-DIN Female | - | - | - | Panel Mount | 0.331" (8.40mm) | 2G, 3G, 4G, LTE, Wi-Fi |
|
|
DASUTWC500MDANTENNA |
0 |
|
Datasheet |
Clarity™ | Bulk | Obsolete | WiFi | Wide Band | 784MHz, 1.947GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 4dBi, 6dBi | 40 W | Cable - 500mm | Mini-DIN Female | - | - | - | Panel Mount | 0.331" (8.40mm) | Wi-Fi |
|
|
DASUTWCR500MDANTENNA |
0 |
|
Datasheet |
Clarity™ | Bulk | Obsolete | WiFi | Wide Band | 784MHz, 1.947GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 5dBi, 7dBi | 40 W | Cable - 500mm | Mini-DIN Female | - | - | - | Panel Mount | 0.331" (8.40mm) | Wi-Fi |
|
|
DASLTE500NFBANTENNA |
0 |
|
Datasheet |
PIMinator™ | Bulk | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 1.94GHz, 2.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 4 | 1.5, 1.8 | - | 2dBi, 6dBi, 8dBi | 50 W | Cable - 500mm | N Type Female | - | - | - | Panel Mount | 4.590" (116.59mm) | 2G, 3G, 4G, LTE, Wi-Fi, WiMax™ |
|
|
DASLTE500NFGANTENNA |
0 |
|
Datasheet |
PIMinator™ | Bulk | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 1.94GHz, 2.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 4 | 1.5, 1.8 | - | 2dBi, 6dBi, 8dBi | 50 W | Cable - 500mm | N Type Female | - | - | - | Panel Mount | 4.590" (116.59mm) | 2G, 3G, 4G, LTE, Wi-Fi, WiMax™ |
|
|
DASLTEDINBANTENNA |
0 |
|
Datasheet |
PIMinator™ | Bulk | Obsolete | - | Wide Band | 829MHz, 1.94GHz, 2.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 4 | - | - | - | - | - | Connector | - | - | - | Panel Mount | - | - |
|
|
DASLTEMINIDINANTENNA |
0 |
|
Datasheet |
PIMinator™ | Bulk | Obsolete | WiFi | Wide Band | 829MHz, 1.94GHz, 2.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 4 | 1.5, 1.8 | - | 2dBi, 6dBi, 8dBi | 50 W | - | Mini-DIN Female | - | - | - | Panel Mount | - | Wi-Fi, WiMax™ |
|
|
DASLTENFBANTENNA |
0 |
|
Datasheet |
PIMinator™ | Bulk | Obsolete | WiFi | Wide Band | 829MHz, 1.94GHz, 2.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 4 | 1.5, 1.8 | - | 2dBi, 6dBi, 8dBi | 50 W | - | N Type Female | - | - | - | Panel Mount | 4.810" (122.17mm) | Wi-Fi, WiMax™ |
|

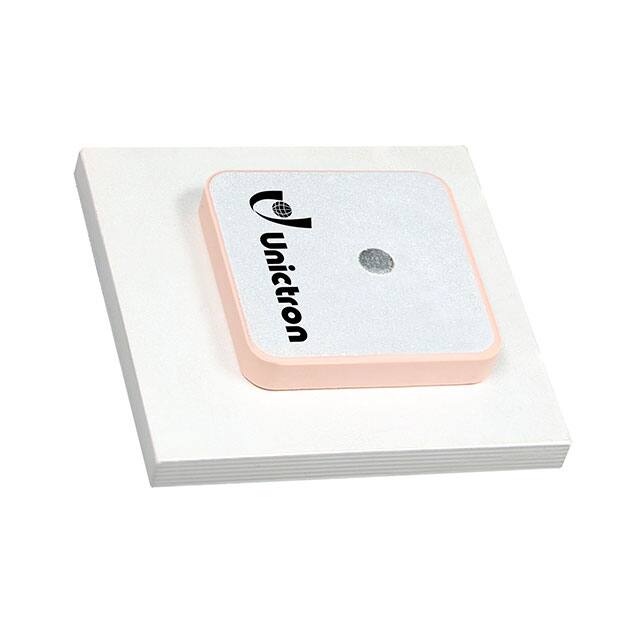

H2P1361A2B0100GPS L1+L2 STACK CERAMIC PATCH |
0 |
|
- |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.575GHz | - | Ceramic Patch | 2 | 2 | - | 3.8dBi, 5.3dBi | - | - | Pin | - | - | - | Adhesive | 0.315" (8.00mm) | GPS |
|
|
33-2710-NM-00-1000RF ANT 1.575GHZ PUCK SMA ML MAG |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5GHz, 1.54GHz, 1.64GHz | 1.559GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.75dBic | - | Cable - 1m, LNA, Filter | - | IP67 | - | - | Adhesive, Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GPS |
|
TCP.02.TR.01OMEGA TCP.02 5.8GHZ EXTERNAL RX |
0 |
|
Datasheet |
- | Bag | Obsolete | WiFi | SHF (f > 4GHz) | 5.8GHz | 5.6GHz ~ 6GHz | Dome | 1 | 1.5 | -15dB | 3dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 1.181" (30.00mm) | Wi-Fi |
|
STS.01.A.0115FBSPARTAN STS.01 WHITE IRIDIUM TRA |
0 |
|
Datasheet |
Spartan | Box | Discontinued at Digi-Key | - | - | - | - | Dome | - | - | - | - | - | Cable - 115mm | - | IP67, IP69K | - | - | Panel Mount | 1.313" (33.35mm) | Iridium™ |
