RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-2309605-1RF ANT 829MHZ/2.2GHZ MOD CAB 3M |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Module | 2 | - | - | - | - | Cable - 3m | SMA Male (2) | IP33 | - | - | Adhesive | 1.929" (49.00mm) | - |
|
A10204-1RF ANT 1.575GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
Brevis | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.559GHz ~ 1.609GHz | Chip | 1 | 1.9 | -10dB | 0.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
OC24594-FRTNRF ANT 2.4GHZ/5.4GHZ WHIP STR |
0 |
|
Datasheet |
- | Bulk | Obsolete | Bluetooth, WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Whip, Straight | 2 | 2 | - | 4.1dBi | 10 W | - | RP-TNC Male | IP54 | - | - | Connector Mount | 2.988" (75.90mm) | Bluetooth, Wi-Fi |
|
33-2410NM-00-5000ANTENNA GPS/GLONASS SMA MALE |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.574GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.25dBic | - | Cable - 5m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | GLONASS, GPS |
|
9000984-XLPDNBRF ANT 875MHZ WHIP TILT SMA MALE |
0 |
|
Datasheet |
- | Bulk | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 875MHz | 790MHz ~ 960MHz | Whip, Tilt | 1 | - | -17dB | 3.4dBi | - | - | SMA Male | - | - | - | Connector Mount | - | ISM, LoRa, LPWAN, Sigfox |
|
33-4722NMAT-10-0915ANT GPS/GLONASS SMA CABLE |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.5dBic | - | Cable - 915mm, LNA, Filter | SMA Male | IP67 | - | - | Adhesive, Magnetic | 0.563" (14.30mm) | Beidou, Galileo, GLONASS, GPS |
|
2019320001RF ANT 912MHZ/2.4GHZ STAMPED MET |
0 |
|
Datasheet |
201932 | Tape & Reel (TR) | Obsolete | WiFi | Wide Band | 912MHz, 2.4GHz, 5.5GHz | 900MHz ~ 924MHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 3 | - | -6dB | 4.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | Wi-Fi |
|
WMA.01.301151RF ANT 2.4GHZ MODULE RP-SMA MAG |
0 |
|
Datasheet |
- | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Module | 1 | 1.92 | -10dB | 3dBi | 10 W | - | RP-SMA Male | - | - | - | Adhesive, Magnetic | 5.591" (142.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
DSGP.1575.18.4.C.02GPS SMT PATCH ANTENNA |
0 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ASGP.1575.10B.4.A.01RF ANT 1.575GHZ CER PATCH SLD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 30dB | - | LNA, Filter | Solder | - | - | - | Surface Mount | 0.232" (5.90mm) | GPS |
|
|
ASGPR.10D.2.A.25RF ANT 1.575GHZ CER PATCH SLD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 30dB | - | - | Solder | - | - | - | Surface Mount | 0.154" (3.90mm) | GPS |
|
|
ASGPR.25B.4.A.27RF ANT 1.575GHZ CER PATCH SLD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 30dB | - | LNA, Filter | Solder | - | - | - | Surface Mount | 0.260" (6.60mm) | GPS |
|
|
SGP.1575.18.2.A.02RF ANT |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | - | 2.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Galileo, GPS |
|
ANLTE1-2HRAANTENNA RF LTE 9" 2 DBI |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | - | - | - | Whip, Tilt | - | - | - | 2dBi | - | - | Connector | - | - | - | Connector Mount | 9.000" (228.60mm) | LTE |
|
|
ANLTE1-50HRAANTENNA RF LTE 9" 2 DBI |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | - | - | - | Whip, Tilt | - | - | - | 2dBi | - | - | Connector | - | - | - | Connector Mount | 9.000" (228.60mm) | LTE |
|
FLEX-KPULSE ANTENNA KIT WITH SAMPLES O |
0 |
|
Datasheet |
Antenna Sample Kit | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 13.56MHz, 829MHz, 895.5MHz, 920MHz, 1.469GHz, 1.584GHz, 1.585GHz, 1.59GHz, 1.795GHz, 1.947GHz, 2.2GHz, 2.5GHz, 5.45GHz | 13.56MHz ~ 6GHz | Module | 18 | - | - | - | - | - | - | - | - | - | - | 3.150" (80.00mm) | 2G, 3G, 4G, DSRC, GNSS LTE, ISM, Wi-Fi |
|
IOT-KPULSELARSEN-ANTENNA KIT- IOT SER |
0 |
|
Datasheet |
Sample Kit | Bulk | Active | Bluetooth, General ISM, Navigation, WiFi | Wide Band | 836.5MHz, 869MHz, 892MHz, 895.5MHz, 920MHz, 1.795GHz, 1.85GHz, 2.04GHz, 2.4GHz, 3.5GHz, 5.362GHz, 5.4GHz, 5.41GHz, 5.5GHz | 824MHz ~ 5.925GHz | Module | 14 | - | - | - | - | - | - | - | - | - | - | 2.953" (75.00mm) | Bluetooth, GPS, ISM, Wi-Fi |
|
ISM-KPULSELARSEN-ANTENNA KIT- ISM SER |
0 |
|
Datasheet |
Sample Kit | Bulk | Active | General ISM, WiFi | Wide Band | 315MHz, 829MHz, 869MHz, 874MHz, 876MHz, 881.5MHz, 892MHz, 895.5MHz, 898MHz, 915MHz, 1.85GHz, 2.04GHz, 2.45GHz, 2.5GHz | 315MHz ~ 5.925GHz | Module | 16 | - | - | - | - | - | - | - | - | - | - | 2.953" (75.00mm) | ISM, Wi-Fi |
|

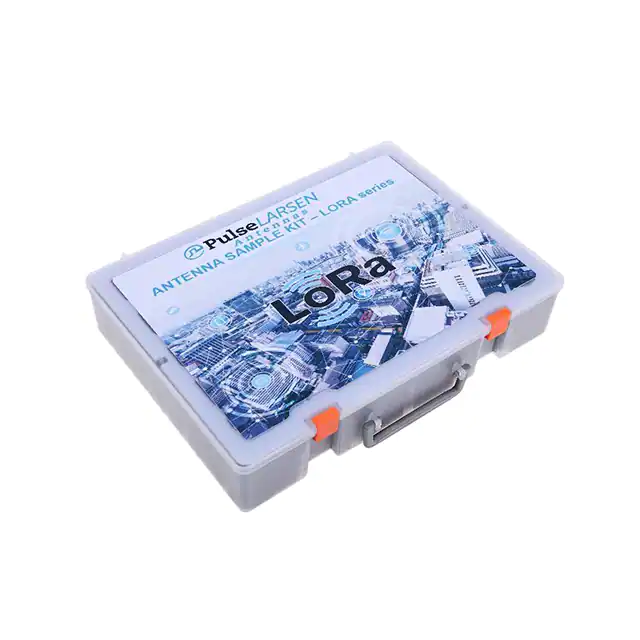

LORA-KPULSELARSEN-ANTENNA KIT- LORA SE |
0 |
|
Datasheet |
Sample Kit | Bulk | Active | Bluetooth, General ISM, Navigation, WiFi | Wide Band | 829MHz, 868MHz, 869MHz, 881MHz, 881.5MHz, 892MHz, 895.5MHz, 898MHz, 915MHz, 1.85GHz, 1.94GHz, 2.44GHz, 2.45GHz, 2.5GHz | 698MHz ~ 5.925GHz | Module | 14 | - | - | - | - | - | - | - | - | - | - | 2.953" (75.00mm) | Bluetooth, GPS, ISM, Wi-Fi |
|
|
LPMB405LOW PROFILE 2LTE 2WIFI MULTIBA |
0 |
|
Datasheet |
Jaguar | Bulk | Active | Cellular, WiFi | Wide Band | - | - | - | - | - | - | - | - | - | - | - | - | - | Adhesive | - | LTE, Wi-Fi |
