RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMANFP1039ANTENNA TYPE N JACK 2.4 MHZ-7.12 |
0 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 4.762GHz | 2.4GHz ~ 7.125GHz | Flat Panel | 1 | 2 | - | 6dBi | 50 W | Cable - 914.4mm | N Type Female | - | - | - | Pole Mount | 1.180" (29.97mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
HG1736-12XP-040-4NF1.7 GHZ TO 2.7 GHZ + 3.3 GHZ TO |
0 |
|
Datasheet |
HG | Bulk | Active | Cellular, WiFi | Wide Band | 2.205GHz, 3.45GHz | 1.71GHz ~ 2.7GHz, 3.3GHz ~ 3.6GHz | Panel | 2 | 2 | - | 13dBi, 14dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (4) | - | - | - | Mast Mount | 3.570" (90.68mm) | 4G, 5G, CBRS, DAS, LTE, WISP, WLAN |
|
|
GPSGLTMGSPI40NCBANTENNA, KIT, GPS/GLONASS, SURGE |
0 |
|
- |
- | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.56GHz ~ 1.62GHz | Dome | 1 | 2 | - | 3dBic | - | LNA | - | - | - | - | Base Mount | 7.244" (184.00mm) | Galileo, GLONASS, GNSS, GPS |
|
|
FMANED1015ANTENNA TYPE N JACK 400 MHZ-470 |
0 |
|
- |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 435MHz | 400MHz ~ 470MHz | Module | 1 | 1.5 | - | 3dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 12.400" (314.96mm) | General Purpose |
|
|
FMANED1012ANTENNA TYPE N JACK 136 MHZ-174 |
0 |
|
Datasheet |
- | Bag | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Module | 1 | 1.5 | - | 3dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 35.800" (909.32mm) | General Purpose |
|
|
8701000987010009 |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 450MHz, 915MHz | 430MHz ~ 470MHz, 870MHz ~ 960MHz | Module | 2 | 1.5 | - | 3.5dBi, 4.5dBi | - | - | N Type Female | IP66 | - | - | Chassis Mount | 5.906" (150.00mm) | TETRA |
|
|
FMWAN137-10WG ANTENNA WR-137 5.85-8.2 GHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Waveguide Mount | 1.670" (42.42mm) | General Purpose |
|
|
Y45010RF ANT 460MHZ YAGI N FEM BRKT MT |
0 |
|
- |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Yagi, 10-Element | 1 | 1.5 | - | - | - | - | N Type Female | - | - | - | Bracket Mount | - | - |
|
|
AN_MASTER_CUBIC_4C2W1GN-LP5G 7-IN-1 COMBO ANTENNA 4X4MIMO |
0 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
PLC1506RF ANT 154MHZ YAGI UHF BRKT 66" |
1 |
|
Datasheet |
PLC | Bulk | Obsolete | - | VHF (f < 300MHz) | 154MHz | 150MHz ~ 158MHz | Yagi, 6-Element | 1 | - | - | 7.1dBi | 400 W | - | UHF | - | - | - | Bracket Mount | 65.984" (167.60cm) | - |
|
|
FMFRM2NON-PENETRATING FLAT ROOF MOUNT |
0 |
|
Datasheet |
- | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG63807U617-960 / 1710-3800 MHZ 6 /7 DBI |
0 |
|
- |
HG | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.755GHz | 617MHz ~ 960MHz, 1.71GHz ~ 3.8GHz | Whip, Straight | 2 | 2, 2.5 | - | 6dBi, 7dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 19.600" (497.84mm) | 5G, LTE |
|
|
LCANFP10392400-2500 & 5150-7125MHZ 6DBI WI |
0 |
|
Datasheet |
LCAN | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 6.137GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Flat Panel | 2 | 2 | - | 6dBi, 6dBi | 50 W | Cable - 914.4mm | N Type Female (4) | - | - | - | Pole Mount | 1.180" (29.97mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
LCANFP10372400-2500 & 5150-7125MHZ 6DBI WI |
0 |
|
Datasheet |
LCAN | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 6.137GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Flat Panel | 2 | 2 | - | 6dBi, 6dBi | 50 W | Cable - 914.4mm | RP-SMA Male (4) | - | - | - | Pole Mount | 1.180" (29.97mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
LCANFP10382400-2500 & 5150-7125MHZ 6DBI WI |
0 |
|
Datasheet |
LCAN | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 6.137GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Flat Panel | 2 | 2 | - | 6dBi, 6dBi | 50 W | Cable - 914.4mm | N Type Male (4) | - | - | - | Pole Mount | 1.180" (29.97mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
6720005233WI-ANT-900MHZ-0DB OMNI NF |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMWAN028-15WG ANTENNA WR-28 26.5-40 GHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Waveguide Mount | 0.550" (13.97mm) | General Purpose |
|

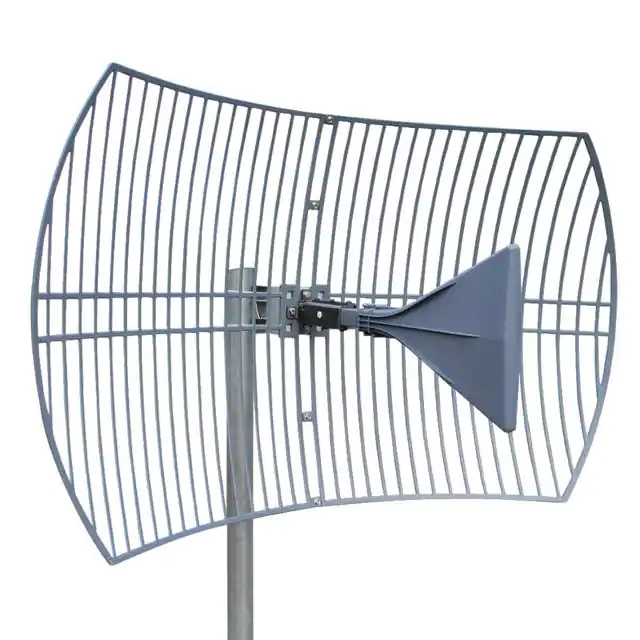

RGP-MBF4-6099-17F-TA-001ANTENNA PARABOLIC 600-6500MHZ |
0 |
|
Datasheet |
RGP | Box | Active | Cellular | Wide Band | 752MHz,859MHz,920MHz,1.45GHz,1.575GHz,1.585GHz,1.785GHz,1.92GHz,2.045GHz,2.4GHz,2.495GHz,2.6GHz,3.4GHz,3.55GHz,3.9GHz,5.375GHz,5.45GHz,5.5GHz,5.8GHz,5.8875GHz | 600MHz ~ 6.5GHz | Parabolic Grid | 20 | 1.4, 1.6 | 10dB, 20dB | 15dBi, 20dBi, 25dBi | 100 W | - | N Type Female | IP65 | - | - | Pole Mount | 24.000" (609.60mm) | 2G, 3G, 4G, 5G, Cellular, LTE, GSM, WiFi, GNSS, GPS, Beidou, Glonass, Galileo, IMS, LoRa, Sigfox, Zigbee, WCDMA, GPRS, IoT |
|
|
33-HC977EXF-28ANTENNA |
0 |
|
Datasheet |
HC977EXF | Box | Active | General ISM, Navigation | UHF (1GHz ~ 2GHz) | 1.542GHz | 1.525GHz ~ 1.559GHz | Helical | 1 | - | - | 2.7dBic | - | LNA, Filter | MCX Female | - | - | - | Bracket Mount | 1.693" (43.00mm) | Beidou, Galileo, Globalstar, GLONASS, GNSS, GPS, Iridium, QZSS |
|
|
33-HC977EXF-35ANTENNA |
0 |
|
Datasheet |
HC977EXF | Box | Active | General ISM, Navigation | UHF (1GHz ~ 2GHz) | 1.542GHz | 1.525GHz ~ 1.559GHz | Helical | 1 | - | - | 2.7dBic | - | LNA, Filter | MCX Female | - | - | - | Bracket Mount | 1.693" (43.00mm) | Beidou, Galileo, Globalstar, GLONASS, GNSS, GPS, Iridium, QZSS |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
