RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLC456NRF ANT 460MHZ YAGI N CONN 31.25" |
0 |
|
Datasheet |
PLC | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Yagi, 6-Element | 1 | - | - | 7.5dBd | 250 W | - | N Type | - | - | - | Bracket Mount | 31.260" (794.00mm) | - |
|

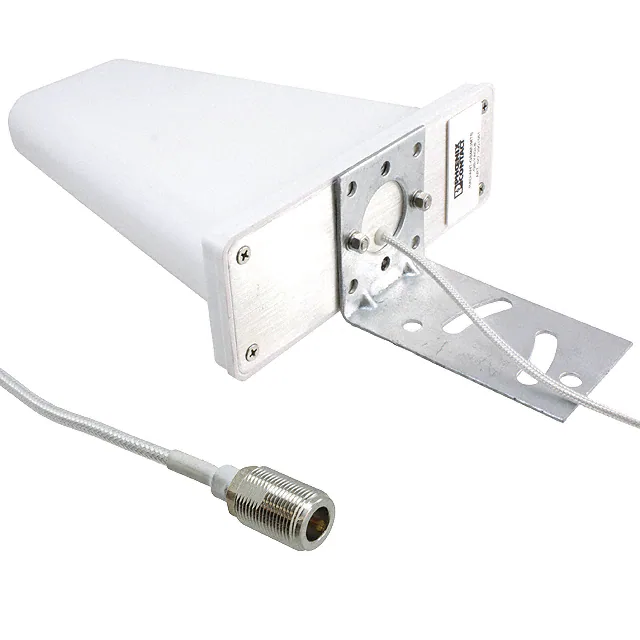

2901561RF ANT 800MHZ/850MHZ YAGI N FEM |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | Wide Band | 800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 800MHz ~ 2.5GHz | Yagi | 6 | - | - | 8dBi | - | - | N Type Female | - | - | - | Bracket Mount | 2.598" (66.00mm) | - |
|
|
BB-2J7184BGFC-150ANTENNA, DOME 5IN1 4X 5G, GPS |
0 |
|
- |
- | Bulk | Active | Cellular, Navigation | Wide Band | 788.5MHz, 1.575GHz, 1.604GHz, 2.058GHz, 4.15GHz, 5.537GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.61GHz, 1.598GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Dome | 6 | 1.5, 1.8, 2, 3.7 | -16.8dB, -16dB, -14dB, -12.9dB, -5.7dB | 1.6dBi, 23dBi, 23dBi, 3.8dBi, 4.7dBi, 4.6dBi | 35 W | Cable - 1.5m | SMA Male | IP67, IP69 | - | - | Screw Mount | 5.118" (130.00mm) | 2G, 3G, 4G, 5G, Cat-M,CBRS, Galileo, GLONASS, GNSS, GPS, IoT, LPWA, LTE, QZSS |
|
|
FM51133ANTENNA TYPE N PLUG 2.4 MHZ-2.5 |
0 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.43 | - | 3dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Male | - | - | - | Connector Mount | 4.060" (103.12mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
16394.2GSM-PRO 2 FUNCTIONING DEMO |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6720005080WI-ANT-DPL-0-16 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LCANKIT1038HG908U-PRO ANTOMNI 800MHZ 8DBI, |
0 |
|
- |
LCAN | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 876MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | Cable - 3.05m | N Type Female | - | - | - | Bracket Mount | 0.063" (1.60mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
EAN0930NB896-940 MHZ 5.15 DBI OPEN COIL 1 |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EAN0930SB896-940 MHZ 5.15 DBI OPEN COIL 1 |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
COACH-LWG1-17FT-MM-BANTENNA, COACH MAG, GNSS, LTE, 8 |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
60011363IN1 DOME ANTENNA - 2XLTE, GNSS, |
0 |
|
Datasheet |
AirLink® - Accessory | Box | Obsolete | Cellular, Navigation | UHF (3GHz ~ 4GHz) | 3.349GHz | 698MHz ~ 6GHz | Whip, Tilt | 1 | - | - | - | - | Cable - 5m | - | - | - | - | Connector Mount | - | GNSS, LTE |
|
|
HG172708U-PRO1710-2700MHZ 8 DBI OMNI ANTENNA, |
0 |
|
- |
HG | Bag | Active | Cellular | Wide Band | 2.205GHz | 1.71GHz ~ 2.7GHz | Whip, Straight | 1 | 2.3 | - | 8dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 22.800" (579.12mm) | 5G, LTE |
|
|
HG3514DP3300 MHZ TO 4200 MHZ VH DUAL POL |
0 |
|
- |
HG | Bag | Active | WiFi | Wide Band | 3.75GHz | 3.3GHz ~ 4.2GHz | Flat Panel | 1 | 2 | - | 15dBi | 20 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (2) | - | - | - | Bracket Mount | 1.500" (38.10mm) | 802.16e, CBRS, SOFDMA, WLAN |
|
|
1399.99.01181399.99.0118 |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 742MHz, 875MHz, 1.584GHz, 2.055GHz, 2.45GHz, 2.545GHz, 3.6GHz, 6.012GHz | 694MHz ~ 790MHz, 790MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 7.125GHz | Module | 8 | 1.7, 1.8, 2 | - | 4dBi, 4dBi, 5dBi, 6dBi, 5.5dBi, 6dBi, 7dBi | - | Cable - 150mm, 210mm, 220mm, 260mm, 280mm, LNA | SMA Female (2), SMA Male (2), TNC Male | IP67, IP69 | - | - | Chassis Mount | 3.465" (88.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
S8963BANT OMNI 5DBI STICK N FEMALE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DASUTCCR5004310ANTENNA |
0 |
|
Datasheet |
Clarity™ | Bulk | Active | Cellular, WiFi | Wide Band | 784MHz, 1.947GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 5dBi, 7dBi | 40 W | Cable - 500mm | 4.3/10 - Female | - | - | - | Panel Mount | 0.331" (8.40mm) | 2G, 3G, 4G, LTE, Wi-Fi |
|
|
FMANGPS1007ANTENNA SMA PLUG 1.597 MHZ-1.607 |
0 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.602GHz | 1.597GHz ~ 1.607GHz | Whip, Straight | 1 | 2.5 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Connector Mount | 1.750" (44.45mm) | Galileo, GLONASS, GNSS, GPS, M2M |
|
|
1399.99.01771399.99.0177 |
0 |
|
Datasheet |
SENCITY® | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 420MHz, 1.5845GHz, 2.545GHz, 6.0125GHz | 410MHz ~ 430MHz, 1.559GHz ~ 1.61GHz, 2.4GHz ~ 2.69GHz, 4.9GHz ~ 7.125GHz | Module | 4 | 1.8, 2 | - | 4dBi, 7dBi, 7dBi | 40 W | Cable - 300mm | SMA Male (2), TNC Female, TNC Male | IP68, IP69K | - | - | Panel Mount | 3.228" (82.00mm) | 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
|
1399.99.01751399.99.0175 |
0 |
|
Datasheet |
SENCITY® | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 742MHz, 875MHz, 1.5845GHz, 2.2GHz, 2.2GHz, 3.6GHz, 6.0125GHz | 694MHz ~ 790MHz, 790MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 7.125GHz | Module | 7 | 1.8, 2, 2.1 | - | 5dBi, 5dBi, 4dBi, 6dBi, 6dBi, 7dBi | 40 W | Cable - 300mm | SMA Female, SMA Male, TNC Female, TNC Male | IP68, IP69K | - | - | Panel Mount | 3.228" (82.00mm) | 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
|
HG-2327DP-22EG-NM2.3-2.7GHZ 22DBI 2FT MIMO GRID A |
0 |
|
- |
HG | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.5GHz | 2.3GHz ~ 2.7GHz | Dish | 1 | 2.5 | - | 22dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Male (2) | - | - | - | Bracket Mount | 4.100" (104.14mm) | 802.11b/g/n, ISM, Wi-Fi, WLAN |
