RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
33-2010-00-3000RF ANT 1.575GHZ PUCK SMA ML 3M |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1572.5MHz ~ 1.578GHz | Puck | 1 | 1.5 | - | 4dBic | - | LNA | SMA Male | IP67 | - | - | Magnetic, Chassis Mount | 0.591" (15.00mm) | GPS |
|

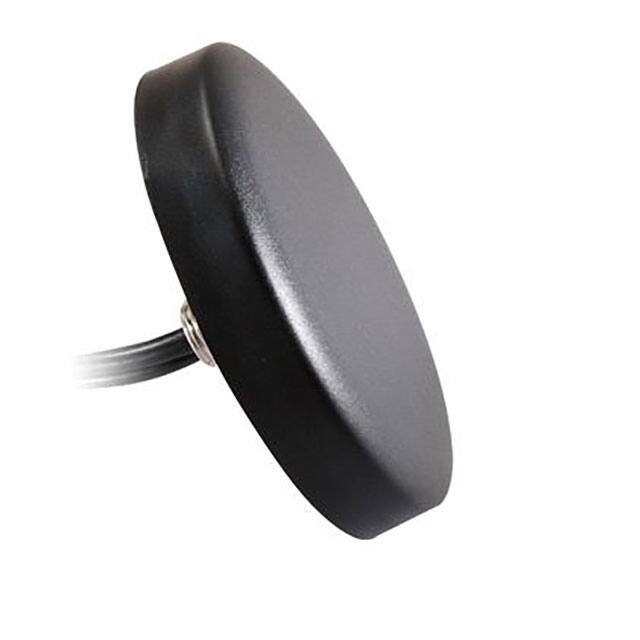

AN_GPS_GSM_WF_046LM3 COMBO ANTENNA SCREW Shape |
0 |
|
Datasheet |
- | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Module | 4 | 1.5, 2 | - | 2dBi, 2dBic, 3dBi | - | Cable - 5m, LNA | SMA Male (2), RP-SMA | - | - | - | Screw Mount | 0.575" (14.60mm) | 4G, LTE, Wi-Fi | |
|
PO150CANTENNA COIL-WHP 3DB 144-174 MHZ |
0 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | - | -10dB | 2dBi | 200 W | - | - | - | - | - | Magnetic | 51.500" (130.81cm) | - |
|
1004239-001ANTENNA ASSY, LTE MIMO |
0 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 796MHz, 1.93GHz, 2.595GHz | 698MHz ~ 894MHz, 1.71GHz ~ 2.155GHz, 2.5GHz ~ 2.69GHz | Module | 3 | 2.5 | - | 4dBi, 6.3dBi, 4.8dBi | - | Cable - 2m | SMA Male (2) | - | - | - | Screw Mount | 0.677" (17.20mm) | Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox |
|
|
2J7684BGFMINI-SHAKER 2IN1 5GNR/4G/3G/2G G |
2 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.575GHz, 1.602GHz, 2.058GHz, 4.15GHz, 5.537GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.606GHz, 1.598GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Dome | 6 | 1.4, 1.5, 2, 2.1, 2.3 | -15dB, -14.9dB, -11dB, -10.1dB, -9.6dB | 2.9dBi, 28dBi, 28dBi, 2.1dBi, 0.5dBi, -1dBi | 25 W | Cable - 3m, Filter | SMA Male | IP67, IP69 | - | - | Screw Mount | 2.000" (50.80mm) | 2G, 3G, 4G, 5G, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, NR |
|
|
CW1440RF ANT 159MHZ WHIP STR NMO BASE |
0 |
|
- |
- | Bulk | Obsolete | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 3dB | 200 W | - | NMO | - | - | - | Base Mount | - | - |
|
|
CWB1320RF ANT 153MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | VHF (f < 300MHz) | 153MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 3dB | 200 W | - | NMO | - | - | - | Base Mount | 18.750" (476.25mm) | - |
|
|
8117D-5M-SMAGPS/GLONASS ACTIVE MAG ANTENNA |
0 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.593GHz | 1.568GHz ~ 1.618GHz | Module | 1 | - | - | 3dBic, -2dBic | - | - | SMA Male | IP67 | - | - | Magnetic | 0.535" (13.60mm) | GLONASS, GPS |
|
|
8117D-5M-NCNLLinear IC's |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9091.99.02489091.99.0248 |
0 |
|
- |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 3dBi | - | - | - | - | - | - | Connector Mount | 4.724" (120.00mm) | TETRA |
|
|
9091.99.02479091.99.0247 |
0 |
|
- |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 405MHz | 380MHz ~ 430MHz | Whip, Straight | 1 | 2 | - | 3.5dBi | - | - | - | - | - | - | Connector Mount | 5.709" (145.00mm) | TETRA |
|
|
9091.99.02549091.99.0254 |
0 |
|
- |
SENCITY® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 420MHz | 410MHz ~ 430MHz | Whip, Straight | 1 | - | - | - | - | - | - | - | - | - | Connector Mount | 5.315" (135.00mm) | - |
|
|
KD9FREQHQ4ANT HELIC 1-4 W SPEC FREQ 162- |
0 |
|
- |
- | Bag | Active | Cellular | VHF (f < 300MHz) | 168MHz | 162MHz ~ 174MHz | Helical | 1 | 2 | -10dB | - | - | - | PL-259 | - | - | - | Connector Mount | 9.500" (241.30mm) | DCS, ISM, GSM, PCS |
|
|
PA24-16RF ANT 2.4GHZ FLAT PNL N FEM |
0 |
|
Datasheet |
PA24 | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Flat Panel | 1 | 1.5 | - | 16dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 0.787" (20.00mm) | WiMax™, WLAN |
|
|
PE51027Wire Mobile Antenna Operates Fro |
1 |
|
Datasheet |
- | Retail Package | Active | - | Wide Band | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 4dBi | - | - | SMA Male | - | - | - | Connector Mount | 0.430" (10.92mm) | General Purpose |
|
|
SPEN14918ANTENNA 1/2 WAVE 890-960 MHZ |
0 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | 3 | - | 0.7dBi | 3.5 W | - | M7 | - | - | - | Connector Mount | 6.000" (152.40mm) | - |
|
|
SRG9003KIT INSTAL N6 INDOOR ANT LTE+GPS |
0 |
|
Datasheet |
- | Box | Discontinued at Digi-Key | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | - | - | - | - | - | - | Connector | - | - | - | Connector Mount | - | GPS, LTE |
|
CFS60383P-30NFRF ANT PANEL N FEM PAN MT |
0 |
|
Datasheet |
CBRS | Bulk | Active | - | Wide Band | - | - | Panel | 5 | 1.8 | - | 6.8dBi | 50 W | - | N Type Female | - | - | - | Panel Mount | 0.299" (7.60mm) | - |
|
|
NMO825BANT SPG BASE-WHP ENC 4.5DB 825 |
0 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 860MHz | 824MHz ~ 896MHz | Whip, Straight | 1 | - | -10dB | 5.6dBi | 200 W | - | NMO | - | - | - | Magnetic | 12.750" (323.85mm) | - |
|
|
CAF95954 (IF1800-SF00)RF ANT 1.8GHZ PANEL SMA FEM CHAS |
0 |
|
Datasheet |
Microsphere™ | Bulk | Obsolete | - | UHF (1GHz ~ 2GHz) | 1.8GHz | 1.71GHz ~ 1.88GHz | Panel | 1 | 1.5 | - | 3dBi | 50 W | - | SMA Female | - | - | - | Chassis Mount | 0.098" (2.50mm) | - |
