RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2J4841PCFSPARROW 2IN1 4G/3G/2G GNSS/BEI A |
0 |
|
Datasheet |
- | Active | Cellular, Navigation | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.604GHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.598GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Module | 6 | 1.3, 1.4, 1.8, 2 | -18.3dB, -15dB, -13.3dB, -9.8dB | 2.4dBi, 28dBi, 28dBi, 28dBi, 1.3dBi, 0.4dBi | 25 W | Cable - 3m | SMA Male | IP67, IP69 | - | - | Adhesive | 0.563" (14.30mm) | 2G, 3G, 4G, BeiDou, Galileo, GLONASS, GPS, LTE, QZSS | |
|
|
YB0033BAEXTERNAL, LTE MAIN & DIV: 700960 |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BB4305CNRF ANT 440MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 440MHz | 430MHz ~ 450MHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | NMO | - | - | - | Base Mount | 36.000" (914.40mm) | - |
|
|
TRAB82138UMOMNI PH 821-896MHZ BK 150W MB8UM |
0 |
|
- |
Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 858.5MHz | 821MHz ~ 896MHz | Dome | 1 | - | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | - |
|
|
AN.W.2400.RHCP.AG50MASWELL WIFI 2.4GHZ RHCP HIGH GA |
3 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4415GHz | 2.4GHz ~ 2.483GHz | Module | 1 | 1.5 | - | 6dBic | - | Cable - 20mm | SMA | IP65 | - | - | Screw | 2.161" (54.90mm) | Wi-Fi |
|
JCF868-8LORA 868MHZ FIBERGLASS ANTENNA 8 |
2 |
|
Datasheet |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | - | 868MHz | Whip, Straight | 1 | 1.5 | - | 8dBic | 100 W | - | N-J | - | - | - | Bracket Mount | 0.039" (1.00mm) | - |
|
|
HG133PS-NMOANT 3 DBI POLY SPRING VEHICULAR |
0 |
|
- |
HG | Bag | Active | General ISM | VHF (f < 300MHz) | 153MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 150 W | - | NMO | - | - | - | Connector Mount | 12.900" (327.66mm) | General Purpose |
|
|
LCANOM1055617-7125MHZ 3DBI OMNI ANTENNA WI |
0 |
|
Datasheet |
LCAN | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 788.5MHz, 4.417GHz | 617MHz ~ 960MHz, 1.71GHz ~ 7.125GHz | Whip, Straight | 2 | 2.5 | - | 2dBi, 5dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | NMO | - | - | - | Connector Mount | 4.040" (102.62mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
LCANOM1056617-7125MHZ 3DBI OMNI ANTENNA WI |
0 |
|
Datasheet |
LCAN | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 788.5MHz, 4.417GHz | 617MHz ~ 960MHz, 1.71GHz ~ 7.125GHz | Whip, Straight | 2 | 2.5 | - | 2dBi, 5dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | NMO | - | - | - | Connector Mount | 4.040" (102.62mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
2J4241PGFSPARROW 2IN1 4G/3G/2G GNSS ADHES |
0 |
|
Datasheet |
- | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Module | 5 | 1.4, 1.5, 1.6, 2.5 | -15.4dB, -15dB, -13.1dB, -7.6dB | 2.4dBi, 28dBi, 28dBi, 2.2dBi, 2.1dBi | 25 W | Cable - 2m, Cable - 3m, Filter | SMA Male | IP67, IP69 | - | - | Adhesive | 0.551" (14.00mm) | 2G, 3G, 4G, Galileo, GLONASS, GNSS, GPS, LTE, QZSS | |
|

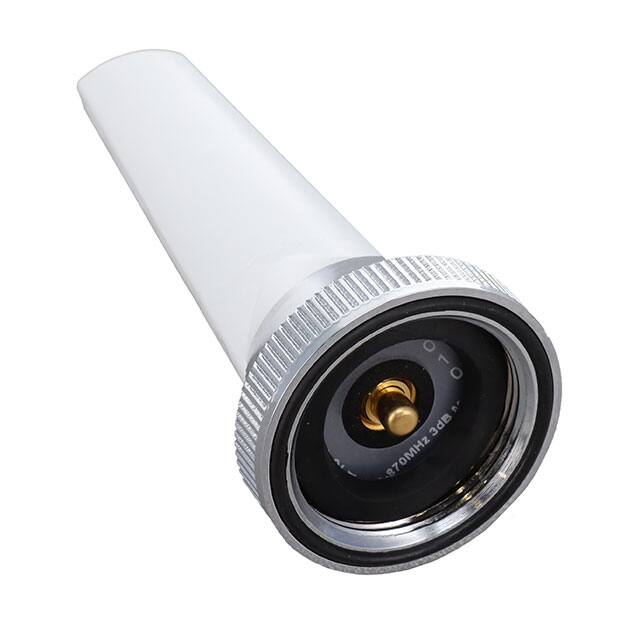

ETRA7603ANT LTE PHE 760-870MHZ |
0 |
|
- |
Phantom Elite® | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 815MHz | 760MHz ~ 870MHz | Whip, Straight | 1 | - | - | - | - | - | NMO | - | - | - | Base Mount | - | - |
|
MT-4B-AS-BL033-IN-1 COMBO EXTERNAL ANTENNA |
2 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Module | 12 | 2, 3 | -6dB, -10dB | 3.62dBi, 4.24dBi, 1.21dBi, 1.21dBi, 1.44dBi, 4.77dBi, 4.77dBi, 4.31dBi, 6.44dBi, 7.23dBi, 7.87dBi, 7.12dBi, -0.78dBi, 6.97dBi, 4.89dBi, 4.46dBi, 3.19dBi | - | Cable - 3m | SMA Male | - | - | - | Adhesive, Magnetic | 0.622" (15.80mm) | DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
|
NMO470CANT BASE-WHP 4.5DB 470-490 MHZ |
0 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 480MHz | 470MHz ~ 490MHz | Whip, Straight | 1 | - | -10dB | 5.6dBi | 200 W | - | UHF | - | - | - | Magnetic | 33.000" (838.20mm) | - |
|
|
NMO406BANTENNA BASE-WHP 3DB 406-420 MHZ |
0 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 413MHz | 406MHz ~ 420MHz | Whip, Straight | 1 | - | -10dB | 5.6dBi | 200 W | - | UHF | - | - | - | Magnetic | 33.000" (838.20mm) | - |
|
|
HG2409RD-NFBANTRUBBER DUCK 2.4GHZ 9DBI |
0 |
|
- |
HG | Bag | Obsolete | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | - | 9dBi | 50 W | - | SMA Male | - | - | - | Magnetic | 15.400" (391.16mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
FM51221ANTENNA TYPE N JACK 698 MHZ-4.2 |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 752MHz, 883MHz, 1.45GHz, 2.205GHz, 3.75GHz | 698MHz ~ 806MHz, 806MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz | Dome | 5 | 2 | - | 1.5dBi, 2.2dBi, 3.5dBi, 4.5dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Ceiling Mount | 0.710" (18.03mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
BB7603RRF ANT 815MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 815MHz | 760MHz ~ 870MHz | Whip, Straight | 1 | 2.2 | - | 3dBi | 200 W | - | NMO | IP67 | - | - | Base Mount | 6.500" (165.10mm) | - |
|
|
SANT-2111ANTENNA SMA PLUG 2.4 MHZ-5 GHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | Wide Band | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 5GHz ~ 5.9GHz | Whip, Tilt | 2 | 2 | - | 3.5dBi, 6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.920" (124.97mm) | General Purpose |
|
|
RE1903U-SMANTOMNI 800-2100MHZ 3DBI |
0 |
|
- |
RE | Bag | Active | Cellular, WiFi | Wide Band | 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 4 | - | - | 3dBi, 3dBi, 3dBi, 3dBi | - | Cable - 1.2192m | SMA Male | - | - | - | Magnetic | 8.390" (213.11mm) | CSD, EDGE, GPRS, GSM, ISM, LoRa, LPWAN, LTE-M, M2M, NB-IoT, PCS, WLAN |
|
|
LM150CANTENNA COIL-WHP 3DB 144-174 MHZ |
0 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | - | -10dB | 5.14dBi | 200 W | - | - | - | - | - | Magnetic | 51.750" (131.45cm) | - |
