RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3907B0127LTE DIVERSITY FPC ANTENNA |
652 |
|
Datasheet |
GEMINI | Bag | Active | Cellular | Wide Band | 829MHz, 1.4694GHz, 1.5845GHz, 1.9475GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.4279GHz ~ 1.5109GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | PCB Trace | 6 | - | -6dB, -7.5dB | 2.9dBi, 1.7dBi, 1.8dBi, 3.4dBi, 3.8dBi, 4.2dBi | 3 W | Cable - 127mm | I-PEX MHF | - | - | - | Surface Mount | - | 2G, 3G, 4G, LTE |
|
H2UE3P2D2G0100LTE/4G FULL BAND 698-960 1710-26 |
1,797 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.59GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 5 | 3, 3.5 | - | 0.5dBi, 1.3dBi, 2.4dBi, 2.6dBi, 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | 2G, 3G, CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
H2B4MH1F2F0100LTE/4G FULL BAND FPC ANTENNA FPC |
1,591 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 928MHz, 1.94GHz, 2.35GHz, 2.59GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | PCB Trace | 4 | - | - | 1.2dBi, 2.6dBi, 2.8dBi, 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | 2G, 3G, CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
AEACAC025009-S2400RF ANT 2.4GHZ WHIP STR SMA MALE |
815 |
|
Datasheet |
AEAC | Bulk | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Whip, Straight | 1 | 2 | - | 2dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 1.020" (25.90mm) | ISM, Wi-Fi |
|
ANT-GNFPC-SHL1100UFRF ANT GNSS FPC L1 100MM UFL |
901 |
|
Datasheet |
ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 100mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
RST-W1B6-10808-22M-FY-001RF ANT 915MHZ WHIP RA SMA 108MM |
209 |
|
Datasheet |
RST | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Tilt | 1 | 2 | -10dB | 2dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 4.252" (108.00mm) | - |
|
RST-MA16-5008-23M-FY-001RF ANT 868MHZ WHIP RA SMA 47.5MM |
123 |
|
Datasheet |
RST | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Right Angle | 1 | 2 | -10dB | 2dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 1.870" (47.50mm) | - |
|
WLP.2450.25.4.A.02RF ANT 2.4GHZ CER PATCH PIN ADH |
169 |
|
Datasheet |
- | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.44GHz ~ 2.525GHz | Ceramic Patch | 1 | 2 | -10dB | 5dBic | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
W3340ANTENNA 6.0-8.5 GHZ UWB |
3,025 |
|
Datasheet |
Chip Antenna | Box | Active | - | SHF (f > 4GHz) | 7.25GHz | 6GHz ~ 8.5GHz | Chip | 1 | - | 9dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | UWB |
|
ANT-24G-HL90-SMARF ANT 2.4GHZ WHIP RA SMA MALE |
112 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2 | -10dB | - | - | - | SMA Male | - | - | - | Connector Mount | 1.984" (50.40mm) | - |
|
W1910RF ANT 850MHZ/900MHZ WHIP STR |
1,273 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | GSM, WCDMA |
|
PU-BNC-433RF ANT 433MHZ HELICAL BNC CONN |
103 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Helical | 1 | - | - | - | - | - | BNC | - | - | - | Connector Mount | 3.307" (84.00mm) | - |
|
ANT-STUBR-433SMRF ANT 433MHZ WHIP RA SMA 42MM |
283 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Right Angle | 1 | 2 | -20.1dB | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.772" (45.00mm) | - |
|
2144150001WI-FI/BLUETOOTH HINGED EXT ANTEN |
580 |
|
Datasheet |
214415 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | -10dB | 5.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
9000352F0-AE20L0100WI-FI 6E/BLUETOOTH FPC ANTENNA F |
5,762 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 3 | - | 3.2dBi, 3dBi, 2.6dBi | 2 W | Cable - 100mm | MHF3, W.FL | - | - | - | Adhesive | 0.063" (1.60mm) | WLAN, Zigbee™ |
|
ANT-W63RPC1-UFL-100RF ANT WIFI 6GHZ FLEX UFL 100MM |
692 |
|
Datasheet |
W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|

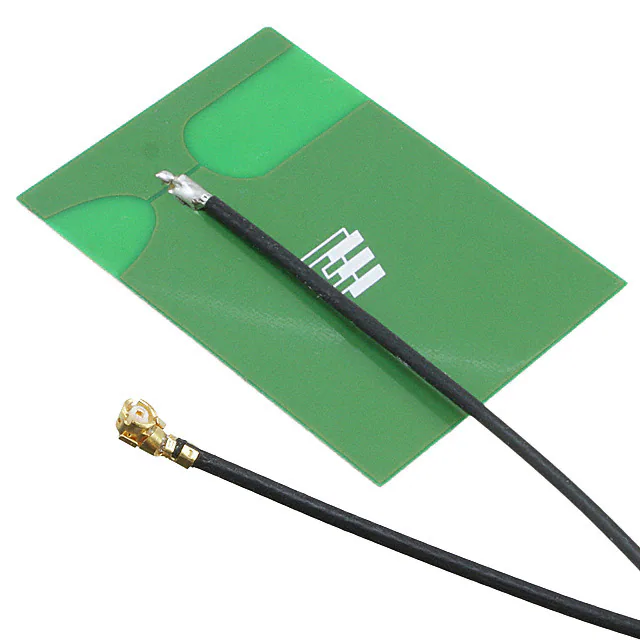

2118060-1RF ANT 3.1/5.5GHZ FLT U.FL 350MM |
16,201 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.1GHz, 5.5GHz | 2.3GHz ~ 3.8GHz, 5.15GHz ~ 5.875GHz | Flat Patch | 2 | 3 | - | 2dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.012" (0.30mm) | Bluetooth, WLAN, Zigbee™ |
|
|
YE0003AAEXTERNAL DIPOLE 5G ANTENNA SMAM |
479 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 2.84GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 699MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Right Angle | 9 | 4 | - | -0.9dBi, 3.4dBi, 2.76dBi, 3.5dBi, 3.25dBi, 3.14dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 7.480" (190.00mm) | LTE |
|
|
YE0010AALTE EXT ANTENNA 1M SMA ADHESIVE |
340 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.699GHz, 1.94GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 698MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.7GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Flat Bar | 9 | 3 | - | 3dBi, 3dBi, 3dBi, 2.9dBi | - | Cable - 1m | SMA Male | IP66 | - | - | Adhesive | 0.232" (5.90mm) | LTE |
|
21406101502.4/5GHZ ON FULL METAL CABLED AN |
1,740 |
|
Datasheet |
214061 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 1 | - | -6dB, -9dB | 3.8dBi, 6.4dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.138" (3.50mm) | Bluetooth, Wi-Fi, Zigbee™ |
