RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2118308-44G WORLD BAND, METASPAN, PCB ANT |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
APAMP-109RF ANT 1.575GHZ MOD SMA MALE ADH |
0 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | -32dB | 5dBic | - | - | SMA Male | - | - | - | Adhesive | 0.594" (15.10mm) | GPS |
|
|
2079010250600-6000MHZ FLEXIBLE ANTENNA 250 |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WTS2450-RPSMARF ANT 2.4GHZ/5.5GHZ WHIP TILT |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz | Whip, Tilt | 2 | 2 | - | 2.1dBi, 2.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.776" (95.90mm) | Wi-Fi |
|
|
AANE-WH-0148-SIPRF ANT WI-FI6E/7 WATERPROOF WHIP |
0 |
|
Datasheet |
AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 3.7dBi, 4.1dBi, 5.3dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 6.181" (157.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
2079010300600-6000MHZ FLEXIBLE ANTENNA 300 |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG727-03FPU-100IPEXANT PCB 698-960/1710-2170/2300-2 |
0 |
|
- |
HG | Bag | Active | General ISM | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 2.5 | - | 1dBi, 2.5dBi, 5dBi | 5 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | I-PEX | - | - | - | Connector Mount | 0.008" (0.20mm) | General Purpose |
|
|
IWX-100BRSXBANT 2.4 TILT WHIP RP-SMA PLUG |
0 |
|
Datasheet |
100 | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.7 | -11.7dB | 3 | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 4.870" (123.70mm) | Bluetooth, ISM, WiFi, ZigBee | |
|
1858RF ANT 850MHZ/900MHZ WHIP RA |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Right Angle | 5 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.244" (57.00mm) | GSM |
|
1859RF ANT 850MHZ/900MHZ WHIP STR |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.402" (61.00mm) | GSM |
|
MAF94259RF ANT 2.4GHZ WHIP TILT RP-SMA |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.150" (80.00mm) | - |
|
1005194-A01ANTENNA ASSY,UWB68 H SMA(M) |
0 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.25GHz | 6GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 6.1dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 0.031" (0.80mm) | UWB |
|
ANT-8/9-MMG1-SMA-1RF ANT 868/915 MHZ MAG 1M SMA |
0 |
|
Datasheet |
- | Bag | Obsolete | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Whip, Straight | 2 | 2, 2.1 | - | 2dBi, 2.3dBi | 10 W | Cable - 1m | SMA Male | - | - | - | Magnetic | 3.260" (82.80mm) | ISM, LoRaWAN, LPWA, Sigfox, Wi-Fi |
|
|
MAF94415ANT DIPOLE WCR 2.5GHZ SMA |
0 |
|
- |
NanoAnt | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2.3 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | WLAN |
|
PC11.09.0100ARF ANT 2.4GHZ/5.2GHZ FLAT PATCH |
0 |
|
- |
TheStripe™ | Bag | Not For New Designs | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | - | - | 3dBi, 4.5dBi | 2 W | Cable - 100mm | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

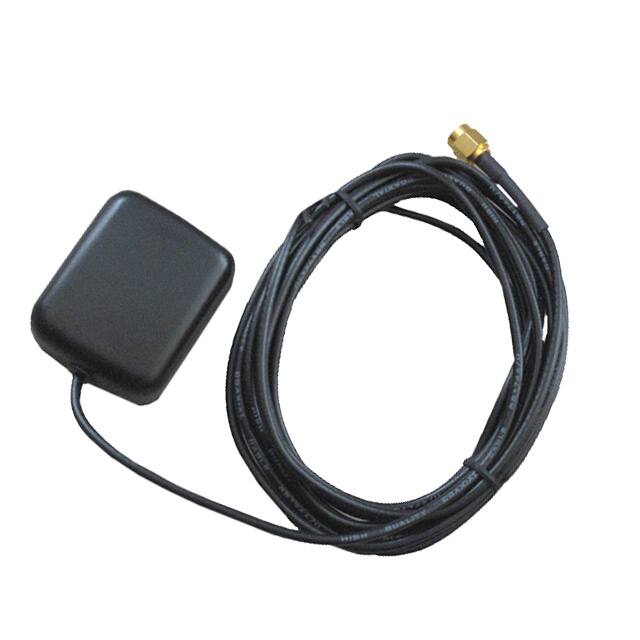

APAMP-126RF ANT 1.575GHZ DOME SMA ML MAG |
0 |
|
Datasheet |
APAMP | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 5dBic | - | - | SMA Male | - | - | - | Magnetic | 0.591" (15.00mm) | GPS |
|
VJ5301M400MXBSRRF ANT 400MHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (300MHz ~ 1GHz) | 400MHz | 360MHz ~ 480MHz | Chip | 1 | - | -3dB | -8.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
|
PR1US5405G MOBILE SMA ANTENNA |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 788.5MHz, 1.51GHz, 2.2GHz, 5.21GHz | 617MHz ~ 960MHz, 1.41GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 7.125GHz | Whip, Tilt | 4 | 3 | - | 4.5dBi, 4.5dBi, 4.5dBi, 4.5dBi | - | - | SMA Male | IP33 | - | - | Connector Mount | 6.803" (172.80mm) | 5G |
|
|
2195891-1ANTENNA EXT GNSS MALE SMA |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Module | 1 | 1.9 | - | 21.51dBic | 10 W | Cable - 3m, LNA, Filter | SMA Male | - | - | - | Chassis Mount | 0.669" (17.00mm) | GNSS |
|
|
QW380RF ANT 380MHZ WHIP STR NMO BASE |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 380MHz | - | Whip, Straight | 1 | - | - | 0dB | - | - | NMO | - | - | - | Base Mount | - | - |
