RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-LTE-RPCRF ANT LTE NBIOT RIGID PCB ADHES |
0 |
|
Datasheet |
RPC | Bag | Active | Cellular, Navigation | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 3.3GHz, 3.4GHz, 3.5GHz, 3.6GHz | 600MHz ~ 3.8GHz | PCB Trace | 7 | 2.5, 1.8, 2.4, 1.8, 1.4, 2.1, 4.1 | -7.4dB, -10.9dB, -7.7dB, -10.9dB, -15.6dB, -9.0dB, -4.3dB | 3.6dBi, 4.9dBi, 6.3dBi, 5.1dBi, 5.0dBi, 4.6dBi, 3.1dBi | 2 W | Cable - 100mm | - | - | - | - | Adhesive | 0.031" (0.80mm) | 2G, 3G, 4G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, LTE, LTE-M, NB-Iot, UMTS |
|
LCSMA10142412 - 2484 & 5150 - 5825 MHZ 0. |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.448GHz, 5.487GHz | 2.412GHz ~ 2.484GHz, 5.15GHz ~ 5.825GHz | Stamped Metal | 2 | 2 | - | 0.5dBi, 3.5dBi | 1 W | Cable - 110.236mm | I-PEX | - | - | - | Surface Mount | 0.200" (4.00mm) | 802.11a/b/g/n/ac/ax, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
AANE-WH-0149-SIPRF ANT WI-FI6E/7 WATERPROOF WHI |
0 |
|
Datasheet |
AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Straight | 3 | 2, 2.5, 3.5 | 5dBi, 6dBi, 10dBi | 2.2dBi, 3.2dBi, 2.7dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0148-RRF ANT WI-FI6E/7 WHIP ANTENNA |
0 |
|
Datasheet |
AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 3.7dBi, 4.1dBi, 5.3dBi | 5 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 6.181" (157.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0150-SIPRF ANT WI-FI6E/7 WATERPROOF WHIP |
0 |
|
Datasheet |
AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 2.4dBi, 4.4dBi, 4.1dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 8.740" (222.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0148-SRF ANT WI-FI6E/7 WHIP ANTENNA |
0 |
|
Datasheet |
AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 3.7dBi, 4.1dBi, 5.3dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 6.181" (157.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0151-SIPRF ANT WI-FI6E/7 WATERPROOF WHIP |
0 |
|
Datasheet |
AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 2.6dBi, 4.7dBi, 4.3dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 7.728" (196.30mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
ANT-W63RPC1-MHF4-200RF ANT WIFI 6GHZ FLEX MHF4 200MM |
0 |
|
Datasheet |
W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 200mm | MHF4 | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
|
MEA-2400-CM/100-00278-012.4 GHz ISM Connector Mount |
24 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.41GHz ~ 2.49GHz | Whip, Straight | 1 | 2.2 | -8.4dB | 3.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.205" (56.00mm) | ISM |
|

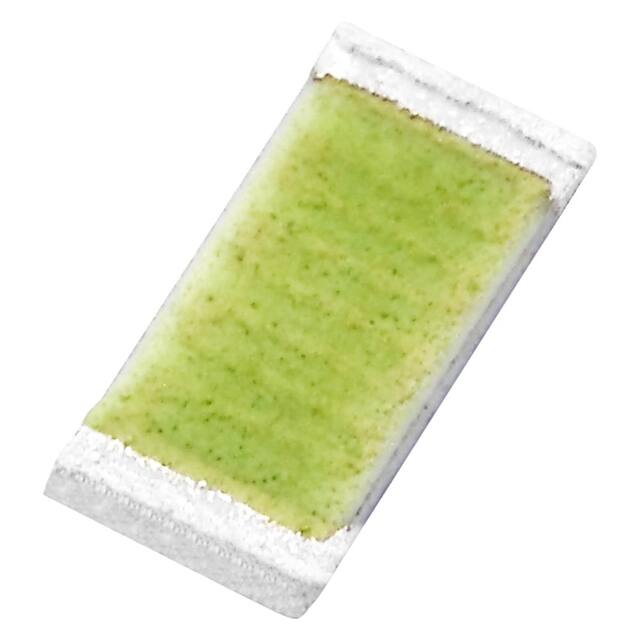

CA.50RF ANT 5.5GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.9GHz | Chip | 1 | 2 | -17dB | 3.4dBi | 50 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | WLAN |
|
|
WXC2400SMRPRF ANT 2.4GHZ WHIP STR RP-SMA ML |
0 |
|
- |
WXC | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | - | - | - | RP-SMA Male | - | - | - | Connector Mount | - | - |
|
|
ANT2525JB12BGNSSAANTENNA PATCH GPS |
0 |
|
Datasheet |
2525 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2066400172GNSS ACTIVE PATCH 25MM COAX 48MM |
0 |
|
- |
206640 | Bulk | Active | Navigation | - | - | - | Ceramic Patch | - | - | - | - | - | Cable - 48mm | I-PEX | - | - | - | Surface Mount | - | GNSS |
|
|
TWX-614XSA3BANT WIFI 7 BLADE SMA PLUG MALE |
0 |
|
Datasheet |
614 | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.8, 1.6, 3 | -10.8dB, -12.7dB, -6dB | 3.2dBi, 6.2dBi, 5.4dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 6.311" (160.30mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E | |
|
|
H2UE6Q1K2G0100LTE/4G+ FULL BAND 617-698 698-96 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.59GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 5 | 3.5 | - | 2.1dBi, 2.3dBi, 5.8dBi, 6.4dBi, 6.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|

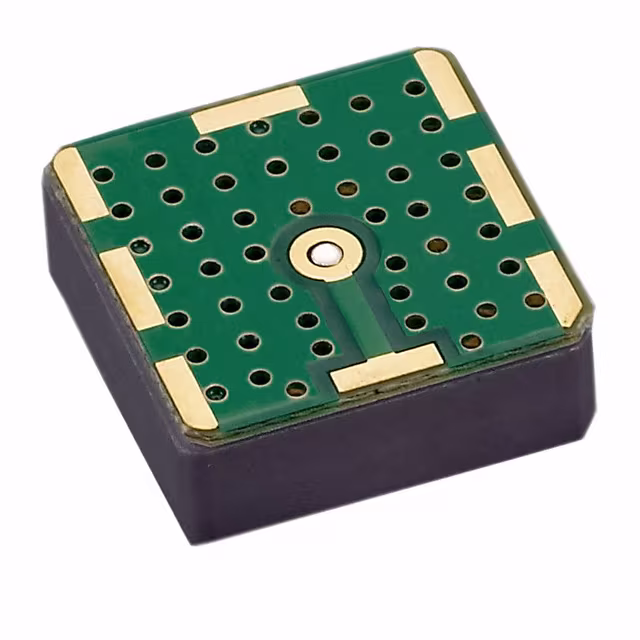

SGP.1575.12.4.A.02RF ANT 1.575GHZ CER PATCH SLD |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | -1dBic | - | - | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|
|
ANT-GFPCB2180-UFLWIRELESS ANTENNA |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 830MHz, 2.25GHz | 700MHz ~ 960MHz, 1.8GHz ~ 2.7GHz | Flat Patch | 2 | 2 | - | 8dBi, 8dBi | 1 W | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.012" (0.30mm) | GSM |
|
|
ANT-ELE-S01-012MULTI-BAND ELE SERIES HIGH GAIN |
0 |
|
- |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 2 | - | 3.2dBi, 4.4dBi | - | - | M5 | - | - | - | Base Mount | 10.270" (260.86mm) | General Purpose |
|
APAMP-122RF ANT 1.575GHZ DOME SMA ML MAG |
0 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 5dBic | - | - | SMA Male | - | - | - | Magnetic | 0.591" (15.00mm) | GPS |
|
APAMP-125RF ANT 1.575GHZ DOME SMA ML MAG |
0 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 5dBic | - | - | SMA Male | - | - | - | Magnetic | 0.512" (13.00mm) | GPS |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
