RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TI.84.A113WATERPROOF 868MHZ TERMINAL ANTEN |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ANT-GNCP-C257L160RF ANT GNSS GPS L1 25X25 LNA UFL |
0 |
|
Datasheet |
GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 3 | 1.5, 1.7, 2.1 | -13.9dB, -11.5dB, -8.8dB | 25.2dBi, 29.7dBi, 31.4dBi | - | Cable - 60mm | U.FL | - | - | - | Surface Mount | 0.276" (7.00mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|
|
GW.49.A153WATERPROOF 2.4/5-7.125GHZ DIPOLE |
2 |
|
Datasheet |
- | Bulk | Active | WiFi | Wide Band | 2.45GHz, 5.375GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Straight | 3 | - | - | 2.58dBi, 3.8dBi, 1.54dBi | - | - | RP-SMA Male | IP67 | - | - | Connector Mount | 4.870" (123.70mm) | Wi-Fi |
|
ANT-GSMPUKS4-SMA824-960/1710-2690MHZ PUCK IP67 3 |
0 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Puck | 2 | 3 | - | 2.5dBi | - | Cable - 3m | SMA Male | IP67 | - | - | Screw Mount | 0.575" (14.60mm) | GSM, LTE |
|
ALPHA14/0.5M/SMAM/S/S/26RF ANT 850MHZ/868MHZ BLADE SMA |
2 |
|
Datasheet |
ALPHA 14 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Blade | 7 | 2 | - | 2.7dBi | - | - | SMA Male | - | - | - | Adhesive | 0.079" (2.00mm) | GPRS, GSM, UMTS |
|
|
YB0031AA2IN1 COMBO LTE&GNSS 300MM ADHSV |
5 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.556GHz ~ 1.566GHz, 1.57GHz ~ 1.58GHz, 1.71GHz ~ 2.69GHz | Dome | 4 | 3 | - | 2.94dBi, 28dBi, 28dBi, 2.94dBi | - | - | SMA Male | IP66 | - | - | Adhesive | 0.689" (17.50mm) | GNSS, GPS, LTE |
|
QW8963RF ANT 933MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Whip, Straight | 1 | - | - | 3dB | - | - | NMO | - | - | - | Base Mount | 15.500" (393.70mm) | - |
|
|
YKL001AA3IN1 EXTSCRW LTE WIFI GNSS IP66 |
0 |
|
Datasheet |
- | Bag | Active | Bluetooth, Cellular, Navigation, WiFi | Wide Band | 850MHz, 1.561GHz, 1.575GHz, 2.2GHz, 2.45GHz | 700MHz ~ 1GHz, 1.551GHz ~ 1.571GHz, 1.565GHz ~ 1.585GHz, 1.71GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz | Dome | 5 | 6 | - | 3dBi, 3dBi, 2.65dBi | - | Cable - 310mm | SMA Male | IP66 | - | - | Screw Mount | 1.890" (48.00mm) | Bluetooth, GNSS, GPS, LTE, Wi-Fi |
|
710631RF ANT 2.4425GHZ BLAD RP-SMA ADH |
0 |
|
Datasheet |
MiniBlade | Box | Active | Cellular, WiFi | Wide Band | 2.4425GHz, 3.6GHz, 5.425GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.95GHz, 5.925GHz ~ 7.125GHz | Blade | 4 | 2, 3 | - | 3.8dBi, 5dBi, 7dBi, 5dBi | - | Cable - 500mm | RP-SMA | - | - | - | Adhesive | 0.260" (6.60mm) | 5G, CBRS, Wi-Fi 6E |
|
RDM-W5C9-4515-RP1M-GE-001RF ANT 2.4GHZ/5.5GHZ PUCK RP-SMA |
0 |
|
Datasheet |
RDM | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Puck | 2 | 2, 2.5 | - | 4.5dBi, 5dBi | - | Cable - 1m | RP-SMA Male | IP66, IP67 | - | - | Screw | 0.598" (15.20mm) | 802.15.4, Bluetooth, Wi-Fi |
|
MIKE3A/3M/MMCXM/S/RA/17RF ANT 1.575GHZ MODULE MMCX MAG |
0 |
|
Datasheet |
MIKE 3A | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 2 | - | 28dB | - | - | MMCX Male | - | - | - | Adhesive, Magnetic | 0.669" (17.00mm) | GPS |
|
WPC.25B.35RF ANT 2.4GHZ CER PTCH MMCX 25MM |
1 |
|
Datasheet |
- | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 2 | -7dB | 2dBi | - | - | MMCX Female | - | - | - | Adhesive | 0.209" (5.30mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
GSA.8827R.A.101111RF ANT 750MHZ/850MHZ FLAT BAR |
0 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 703MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Flat Bar | 8 | - | - | 3.42dBi, 2.38dBi, 1.47dBi, 1.28dBi, 2.16dBi, 1.86dBi, 1.74dBi | 50 W | Cable - 1m | SMA Male | IP65 | - | - | Adhesive | 0.303" (7.70mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
|
|
YBY00A0KAOMNIDIRECTIONAL 5G ANTENNA |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 830MHz, 2.2GHz, 4.15GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 5GHz | Whip, Straight | 3 | - | - | - | - | LNA | - | - | - | - | Connector Mount | 11.811" (300.00mm) | 5G, LTE |
|
|
GNSSMMSMAANT ACTIVE GNSS MAG MNT 3M SMA |
4 |
|
Datasheet |
GNSS Active Antenna | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.5755GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.577GHz, 1.598GHz ~ 1.606GHz | Module | 3 | 2, 2.5 | - | 1dBic, 2.4dBic, 3.5dBic | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.571" (14.50mm) | Beidou, GLONASS, GNSS, GPS |
|
TANGO23/1M/SMAM/S/RP/19RF ANT 2.4GHZ/5.5GHZ PUCK RP-SMA |
0 |
|
Datasheet |
TANGO 23 | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.9GHz | Puck | 2 | 1.7 | - | 5dBi | - | - | RP-SMA Male | - | - | - | Panel Mount | 0.906" (23.00mm) | Bluetooth, WLAN, Zigbee™ |
|
G450BNRF ANT 460MHZ WHIP STR BNC MALE |
0 |
|
Datasheet |
G | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 2.5dB | 50 W | - | BNC Male | - | - | - | Connector Mount | 10.000" (254.00mm) | - |
|

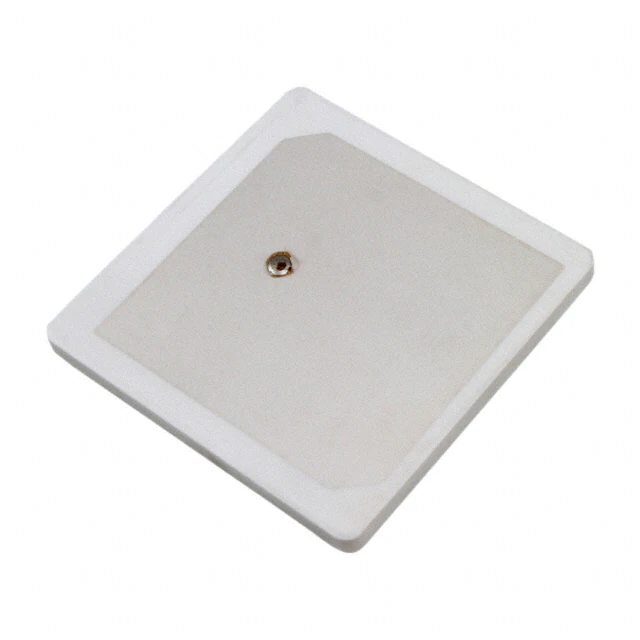

APAES868R8060C16-TRF ANT 868MHZ CER PATCH PIN ADH |
2 |
|
Datasheet |
APAE | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 854MHz ~ 882MHz | Ceramic Patch | 1 | 1.3 | -10dB | 5dBic | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | - |
|
|
AGVLB.25B.07.0060AGPS/GLONASS/BEIDOU/IRNSS L1 + L5 |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz | Ceramic Patch | 4 | - | - | 2.31dBi, 2.94dBi, 2.87dBi, 3.08dBi | - | Cable - 60mm, LNA, Filter | I-PEX MHFI (U.FL) | - | - | - | Surface Mount | 0.469" (11.90mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|

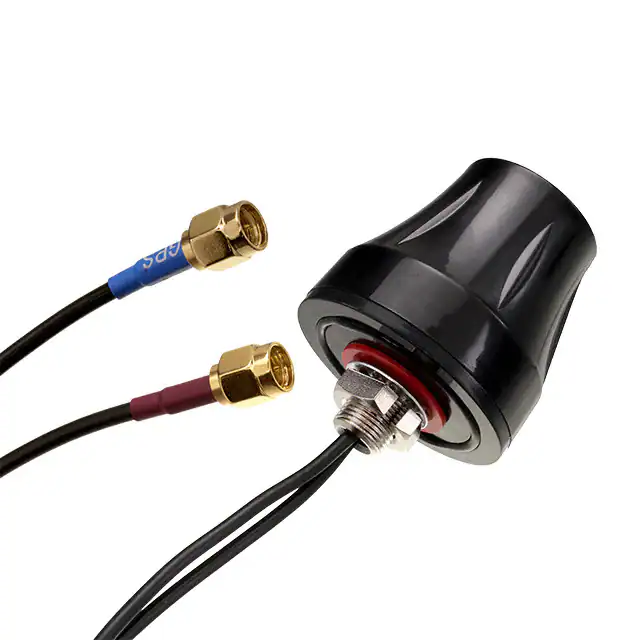

AEACBK050048-C2LGLTE/GPS SCREW MNT COMBO ANT |
0 |
|
Datasheet |
AEAC | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.69GHz | Dome | 3 | 1.5, 3 | - | 2dBi, 2dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Screw Mount | 1.890" (48.00mm) | 2G, 3G, 4G, GSM, GPS, GNSS, LTE |
