RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-5GW-SPS1-1RF ANT 5G/4G/LTE PUCK 1M SMA |
0 |
|
Datasheet |
SPS | Bag | Active | Cellular, General ISM, WiFi | Wide Band | 418MHz, 460MHz, 788.5MHz, 1.9475GHz, 2.35GHz, 2.593GHz, 3.75GHz, 5.1625GHz | 410MHz ~ 426MHz, 450MHz ~ 470MHz, 617MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5.925GHz | Dome | 8 | 1.3, 1.6, 1.8, 2.2, 2.9, 3 | - | -0.1dBi, -4.2dBi, 5.4dBi, 3.8dBi, 4.2dBi, 2.7dBi, 2.7dBi, 5.1dBi | 15 W | Cable - 1m | SMA Male | IP65, IP67 | - | - | Panel Mount | 0.917" (23.30mm) | 2G, 3G, 4G, 5G, ISM, LTE, LoRaWAN, LPWA, NB-IoT, Sigfox, Wi-Fi |
|

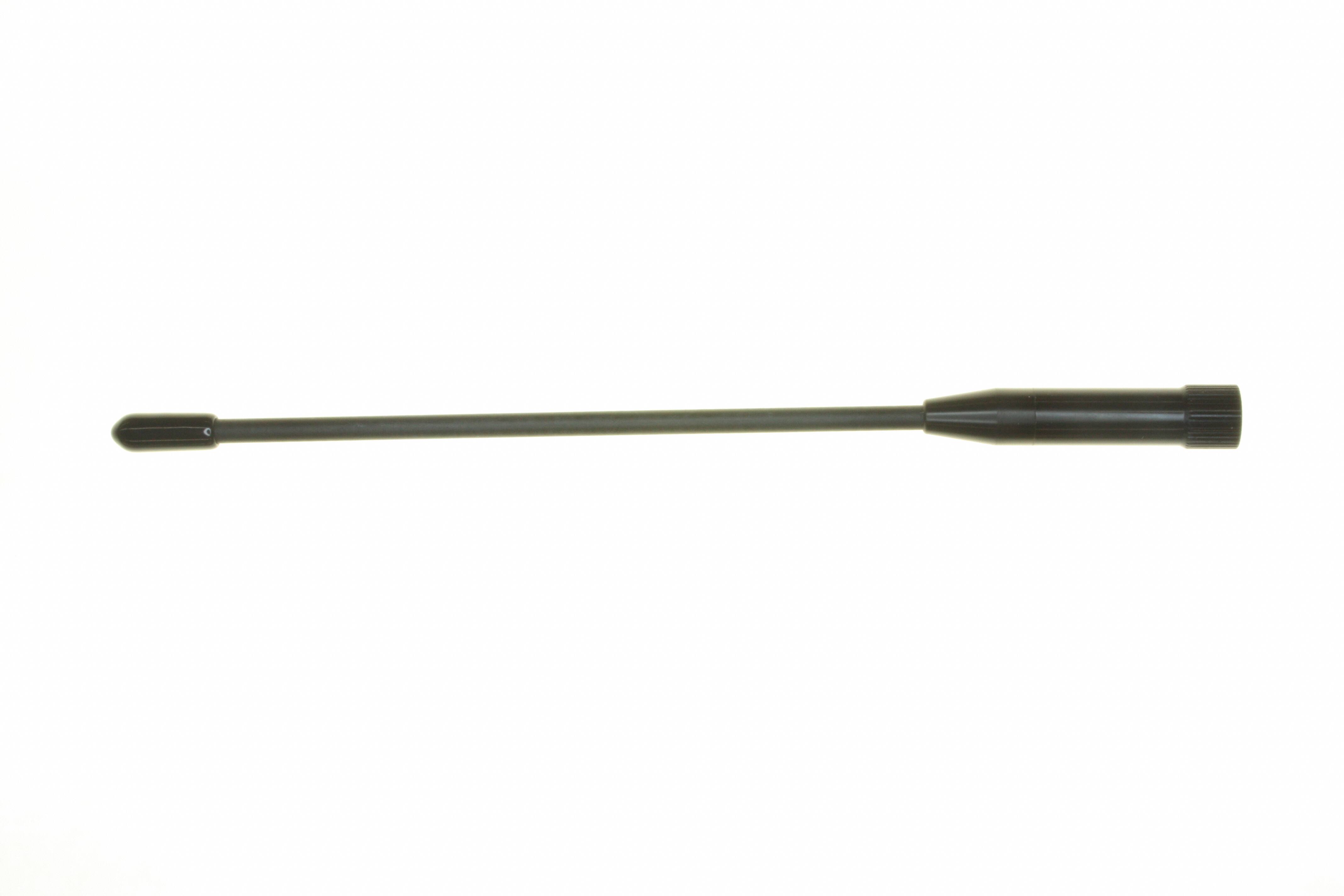

A09-HSM-7RF ANT 900MHZ WHIP STR RP-SMA 7" |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 2.1dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 6.929" (176.00mm) | - |
|
EXR450TNRF ANT 460MHZ WHIP TILT TNC MALE |
0 |
|
Datasheet |
EXR | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Tilt | 1 | 1.5 | - | - | 50 W | - | TNC Male | - | - | - | Connector Mount | 6.950" (176.53mm) | - |
|
DC-ANT-24DTRF ANT 2.4GHZ WHP STR MAGNET 1PC |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | 1.8dBi | - | Cable - 500mm | RP-SMA Male | - | - | - | Magnetic | 4.134" (105.00mm) | Wi-Fi |
|
33-1421-05-0150RF ANT 1.575/1.602GHZ CER PATCH |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.606GHz | Ceramic Patch | 1 | 1.5 | - | 4.5dBic | - | LNA | MCX Male | - | - | - | Adhesive, Chassis Mount | 0.337" (8.55mm) | GLONASS, GPS |
|
ANT-W63-IPW1-NPRF ANT WIFI6/6E WLAN WHIP N PLUG |
5 |
|
Datasheet |
IPW | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Straight | 3 | 4.1, 2, 2.3 | -4.3dB, -9.5dB, -8.1dB | 3.2dBi, 8.7dBi, 5.5dBi | 2 W | - | N Type Male | IP67 | - | - | Connector Mount | 7.008" (178.00mm) | Wi-Fi, Wi-Fi6, Wi-Fi6E, WLAN |
|
W5030RF ANT 2.4GHZ/5.5GHZ WHIP STR N |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Whip, Straight | 2 | - | - | 6dBi | - | - | N Type Male | IP67 | - | - | Connector Mount | 6.811" (173.00mm) | GSM, WLAN |
|
G45.A.2011115G-4G ANT WITH 2M RG-174 & SMA |
0 |
|
- |
Olympian II | Bag | Active | Cellular | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 3.75GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz | Dome | 7 | - | - | 1.3dBi, 0.6dBi, 1.4dBi, -0.8dBi, 1.5dBi, 1dBi, -1.3dBi | 2 W | Cable - 2m | SMA Male | IP67 | - | - | Panel Mount | 1.909" (48.50mm) | 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA |
|
NMO900STAINLESS SPRING BASE / WHIP, EN |
0 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | - | - | 5.6dBi | 200 W | - | NMO | - | - | - | Magnetic | 12.750" (323.85mm) | - |
|
BMLPV5000-VPRF ANT 789MHZ DOME CONN MNT |
0 |
|
Datasheet |
BMLPV | Bag | Active | Bluetooth, Cellular, General ISM, WiFi | Wide Band | 789MHz, 1.4725GHz, 1.94GHz, 2.5GHz, 3.75GHz, 4.7GHz, 5.4425GHz | 618MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 4.9GHz ~ 5.985GHz | Dome | 7 | 1.5, 2, 2.5, 3 | - | 2.6dBi, -0.2dBi, 1dBi, 1.6dBi, 2.3dBi, 1.2dBi, 3.1dBi | 150 W | - | - | IP67 | - | - | Connector Mount, NMO, Stud, Through Hole | 3.382" (85.90mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
ANN-MB-00RF ANT GNSS/GPS 1.197-1.249GHZ |
0 |
|
Datasheet |
ANN-MB | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.223GHz, 1.582GHz | 1.197GHz ~ 1.249GHz, 1.559GHz ~ 1.606GHz | Module | 2 | 2 | - | 28dB | - | Cable - 5m, LNA | SMA | - | - | - | Magnetic | 0.886" (22.50mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
LPS69273NT-61SMAMRF ANT 700MHZ/850MHZ PUCK PNL MT |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Puck | 8 | 3 | - | 2.5dBi, 1.1dBi, 2.3dBi, 5.9dBi, 4.8dBi, 4.9dBi, 3.8dBi, 4dBi | 10 W | Cable - 610mm | SMA Male | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | LTE, Wi-Fi, WLAN |
|
|
HGV-2458-03UANTOMNI 2.4/5.8GHZ 3DBI |
0 |
|
Datasheet |
HGV | Bag | Active | WiFi | Wide Band | 2.4GHz, 5.8GHz | - | Whip, Straight | 2 | - | - | 3.5dBi, 4dBi | - | - | N Type Female | - | - | - | Bracket Mount | 5.100" (129.54mm) | 802.11a, Wi-Fi, WiMax, WLAN |
|
BMUF9115RF ANT 918MHZ WHIP STR NMO MNT |
0 |
|
Datasheet |
MUF | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 918MHz | 896MHz ~ 940MHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 125 W | - | - | - | - | - | NMO Mount | 32.000" (812.80mm) | Cellular, LTE |
|
MA250.A.LBI.001RF ANT 750MHZ/892MHZ MOD SMA ADH |
0 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 698MHz ~ 803MHz, 824MHz ~ 960MHz, 1575.42MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Module | 4 | 3, 2 | -10dB, -6dB | 28dB | 5 W | Cable - 2m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.551" (14.00mm) | BEIDOU, GLONASS, GPS, LTE |
|
|
ANT-GNRM-L125A-3ANTENNA, REMOTE ACTIVE CERAMIC P |
0 |
|
Datasheet |
GNRM | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.202GHz, 1.207GHz, 1.228GHz, 1.246GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Module | 10 | 1.2, 1.3, 1.4, 1.5, 1.6 | -12.4dB, -13.8dB, -15.7dB, -18.4dB, -21.8dB | 29.8dBi, 31.5dBi, 31.5dBi, 31dBi, 23.3dBi, 23.3dBi, 30.7dBi, 31.7dBi, 30.6dBi, 30.6dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.866" (22.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
YS4303RF ANT 440MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 440MHz | 430MHz ~ 450MHz | Yagi, 3-Element | 1 | 1.5 | - | 7.1dBd | - | - | N Type Female | - | - | - | Bracket Mount | 20.157" (512.00mm) | - |
|
|
MAT.176C4-IN-1 5G MULTI-ANTENNA BOARD (8 |
0 |
|
- |
- | Bulk | Active | Cellular | Wide Band | 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.4GHz, 3.925GHz, 5.537GHz | 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.2GHz ~ 3.5GHz, 3.3GHz ~ 4.65GHz, 5.15GHz ~ 5.925GHz | PCB Trace | 7 | 3 | - | 3.18dBi, 3.88dBi, 3.88dBi, 5.06dBi, 3.28dBi, 4.39dBi, 4.44dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.157" (4.00mm) | 5G, HSPA, HSPA+, LTE, WCDMA |
|
VFT69383B2NJN-518QANT LOW PROFILE 3-PORT SHARKFIN |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, General ISM, Navigation | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz | Dome | 12 | 2 | - | 0.7dBi, 0.5dBi, 0.2dBi, 3.4dBi, 4.9dBi, 5.4dBi, 3.7dBi, 3dBi, 2.5dBi, 3.7dBi, 4.6dBi, 5.5dBi | 10 W | Cable - 5.18m, LNA | SMA Male (2) | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE |
|
FG4505WRF ANT 460MHZ WHIP STR N FEM 76" |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 7dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 75.000" (190.50cm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in RF Antennas?
This category includes related RF Antennas subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for RF Antennas components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for RF Antennas and other electronic components.
