RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P2409MK2437 MHZ DIR ANT MOUNT KIT |
15 |
|
Datasheet |
- | Box | Active | - | - | 2.4375GHz | 2.375GHz ~ 2.5GHz | - | 1 | 1.5 | - | 9dBi | 200 W | - | N Type Female | - | - | - | - | - | - |
|
V220220 MHZ OMNI ANTENNA |
20 |
|
Datasheet |
- | Box | Active | - | - | 220MHz | 218MHz ~ 222MHz | - | 1 | 1.2 | - | - | 100 W | Cable - 300mm | N Type Female | - | - | - | Pole Mount | - | - |
|
VG2450FXNFG62450 MHZ OMNI ANTENNA |
15 |
|
Datasheet |
- | Box | Active | - | - | 2.45GHz | 2.4GHz ~ 2.5GHz | - | 1 | 1.2 | - | 6dBd | 30 W | Cable - 300mm | N Type Female | - | - | - | Mast Mount | - | - |
|
MA650.ST.AB.003.DZRF ANT 892MHZ/1.575GHZ DOME |
0 |
|
Datasheet |
Spartan | Bulk | Obsolete | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.575GHz, 1.9GHz | 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz | Dome | 3 | 1.5 | - | 4.5dBi | 5 W | - | SMB, Fakra | IP69K | - | - | Panel Mount | 1.417" (36.00mm) | GPS |
|
MA650.ST.AB.002.DZRF ANT 850MHZ/900MHZ DOME PNL MT |
0 |
|
Datasheet |
Spartan | Bulk | Obsolete | Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz | Dome | 7 | 1.5 | -5dB, -10dB | 0.65dBi, 0.16dBi, 3dBic, 4.05dBi, 3.64dBi | 5 W | Cable - 300mm, LNA | SMB, Fakra (2) | IP67, IP69K | - | - | Panel Mount | 1.402" (35.60mm) | GLONASS, GPS |
|
|
V418MK418 MHZ OMNI ANT MOUNT KIT |
20 |
|
Datasheet |
- | Box | Active | - | - | 418MHz | 406MHZ ~ 430MHz | - | 1 | 1.2 | - | - | 50 W | Cable - 300mm | N Type Female | - | - | - | - | - | - |
|
|
VG5800TFG65800 MHZ OMNI ANTENNA |
15 |
|
Datasheet |
- | Box | Active | - | - | 5.575GHz | 5.25GHz ~ 5.9GHz | - | 1 | 1.5 | - | 6dBi | 20 W | - | TNC Female | - | - | - | - | - | - |
|
|
VG2450MK2450 MHZ OMNI ANT MOUNT KIT |
15 |
|
Datasheet |
- | Box | Active | - | - | 2.45GHz | 2.4GHz ~ 2.5GHz | - | 1 | 1.2 | - | - | 30 W | Cable - 300mm | N Type Female | - | - | - | - | - | - |
|
|
VG1370MK1370 MHZ OMNI ANT MOUNT KIT |
15 |
|
Datasheet |
- | Box | Active | - | - | 1.37GHz | 1.35GHz ~ 1.39GHz | - | 1 | 1.2 | - | - | 50 W | Cable - 304.8mm | N Type Male | - | - | - | - | - | - |
|
NP416WNM3F416 MHZ EDGESLOT OMNI |
20 |
|
Datasheet |
- | Box | Active | - | - | 416MHz | 406MHz ~ 426MHz | - | 1 | 2 | - | 2.5dBi | 125 W | Cable - 914.4mm | N Type Male | - | - | - | Adhesive | - | - |
|
|
NP460WNM3F460 MHZ EDGESLOT OMNI |
20 |
|
Datasheet |
- | Box | Active | - | - | 460MHz | 450MHz ~ 470MHz | - | 1 | 2 | - | 2.5dBi | 125 W | Cable - 914.4mm | N Type Male | - | - | - | Adhesive | - | - |
|
|
P2409HVP-MK2437 MHZ DIR ANT MOUNT KIT |
15 |
|
Datasheet |
- | Box | Active | - | - | 2.4375GHz | 2.375GHz ~ 2.5GHz | - | 1 | 1.5 | - | 9dBi | 200 W | - | N Type Female | - | - | - | - | - | - |
|
|
VG1060NM18I-MK1060 MHZ OMNI ANT MOUNT KIT |
15 |
|
Datasheet |
- | Box | Active | - | - | 1.06GHz | 1.03GHz ~ 1.09GHz | - | 1 | 1.2 | - | - | 50 W | Cable - 457.2mm | N Type Male | - | - | - | - | - | - |
|
|
NP445WNM3F925 MHZ EDGESLOT OMNI |
20 |
|
Datasheet |
- | Box | Active | - | - | 925MHz | 435MHz ~ 455MHz | - | 1 | 2 | - | 3dBi | 125 W | Cable - 914.4mm | N Type Male | - | - | - | Adhesive | - | - |
|

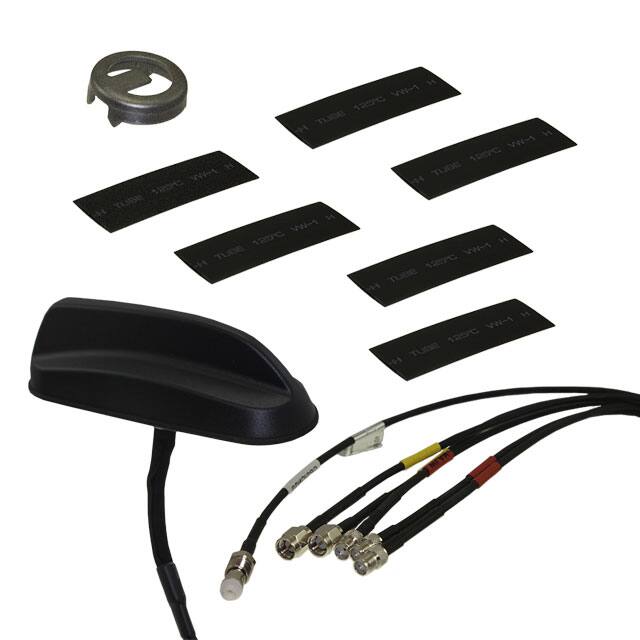

2332157-4MULTI FUNCTION MIMO ANTENNA 2G/3 |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, Navigation | Wide Band | 829MHz, 1.587GHz, 1.94GHz, 2.4GHz, 3.15GHz, 5.45GHz | 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Dome | 6 | 2 | - | 2dBi, 4dBi, 5dBi, 6dBi | 25 W | Cable - 300mm, LNA | FME, SMA | IP66 | - | - | Panel Mount | 1.969" (50.00mm) | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN |
|
|
P2415MK2437 MHZ DIR ANT MOUNT KIT |
15 |
|
Datasheet |
- | Box | Active | - | - | 2.4375GHz | 2.375GHz ~ 2.5GHz | - | 1 | 1.5 | - | 15dBi | 200 W | - | N Type Female | - | - | - | - | - | - |
|
ADP915SBFRS8NM915 MHZ OMNI SPRING BASE ANT |
15 |
|
Datasheet |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | - | 1 | 2 | - | 2dBi | - | - | N Type Male | - | - | - | Connector Mount | - | - |
|
1-2823593-1RF ANT 829MHZ MODULE N FEM SMD |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz | Module | 1 | - | - | - | - | - | N Type Female | - | - | - | Surface Mount | 4.528" (115.00mm) | GPS, GSM, WiMax™, WLAN |
|
33-5384-7-10-05-PCOGNSS PPP-RTK ANT/RCVR -IP NET |
7 |
|
- |
- | Box | Active | Navigation | - | - | - | Dome | - | - | - | - | - | Cable - 5m | TNC Female | IP69K | - | - | Panel Mount | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
V220MK220 MHZ OMNI ANT MOUNT KIT |
20 |
|
Datasheet |
- | Box | Active | - | - | 220MHz | 218MHz ~ 222MHz | - | 1 | 1.2 | - | - | 100 W | Cable - 300mm | N Type Female | - | - | - | - | - | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
