RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AN_GSM_916MASWELL 4G/3G/WIFI PANEL ANTENNA |
4 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.94GHz, 2.45GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz | Panel | 3 | 2 | - | 6dBi, 9dBi, 10dBi | - | - | N Type Female, SMA | - | - | - | Screw | 1.756" (44.60mm) | 3G, 4G, Wi-Fi |
|
ANT-GSM-YAG11RF ANT 900MHZ/1.8GHZ YAGI SMA ML |
4 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | - | Yagi, 8-Element | 2 | 1.5 | - | 11dB | 60 W | - | SMA Male | - | - | - | Bracket Mount | 22.441" (570.00mm) | GSM |
|
MEA-1600-AM/100-00237-01IRIDIUM/GPS MAGNETIC/ADHESIVE MO |
3 |
|
Datasheet |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.621GHz | 1.616GHz ~ 1.627GHz | Module | 2 | 1.5, 1.6 | -15.8dB, -12.9dB | 2.5dBi, 2.6dBi | - | Cable - 2m | SMA Male | IP67, IP69 | - | - | Adhesive | 0.618" (15.70mm) | GPS, Iridium™ |
|
|
2J2190B-B05HBAYONET 4GLTE 450 WALL M |
10 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 453MHz | 410MHz ~ 496MHz | Whip, Straight | 1 | 1.8 | -10.7dB | 1.5dBi | 50 W | Cable - 3m | SMA Male | IP67 | - | - | Wall Mount | 8.661" (220.00mm) | LTE |
|
|
2J6985MPAPHOENIX 3IN1 5GNR/4GLTE/3G/2G WI |
10 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AP-M2M-SB-S2-BL-6ANTENNA PLUS M2M SALT SHAKER ANT |
9 |
|
Datasheet |
- | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Dome | 2 | - | - | 3dBi, 6dBi | - | Cable - 1.828m | SMA Male | IP67 | - | - | Panel Mount | 3.236" (82.20mm) | LTE |
|
OSCAR40/5M/LL/FMEF/S/S/33RF ANT 880MHZ/2.2GHZ WHIP STR |
5 |
|
Datasheet |
OSCAR 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | - | 433MHz ~ 5.8GHz | Whip, Straight | 2 | 1.5 | - | 5.5dBi | - | - | FME Female | - | - | - | Pole Mount, Wall Mount | 9.449" (240.00mm) | 802.11n/ac/ax, Bluetooth, LoRa, NB-IOT, Wi-Fi, WLAN, Sigfox, Zigbee™ |
|
|
2J2183BA-B17HTWINS 5GNR/4GLTE/3G/2G ARRAY WAL |
10 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2J4250PGF-2.4SPARROW 3IN1 4G/3G/2G WIFI/BT 2. |
9 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.45GHz, 2.6GHz | 698MHz ~ 960MHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz, 2.41GHz ~ 2.49GHz, 2.5GHz ~ 2.7GHz | Module | 6 | 1.4, 1.5, 1.6, 1.8, 2.5 | -15.4dB, -15dB, -13.1dB, -12.5dB, -7.6dB | 2.4dBi, 28dBi, 28dBi, 2.2dBi, -2.8dBi, 2.1dBi | 25 W | Cable - 2m, Cable - 3m, Filter | SMA Male | IP67, IP69 | - | - | Adhesive | 0.551" (14.00mm) | 2G, 3G, 4G, Bluetooth, Galileo, GLONASS, GNSS, GPS, ISM, LTE, QZSS, Wi-Fi, Zigbee™ |
|
|
RM-WLF-1C-BLK-12Surface-Mnt 4G/LTE Fixed/Mobile |
13 |
|
Datasheet |
RM | Bulk | Active | Cellular | Wide Band | 800MHz, 2.2GHz | 694MHz ~ 894MHz, 1.7GHz ~ 2.7GHz | Dome | 1 | 2 | - | 3dBi | 35 W | Cable - 300mm | SMA Male | IP67 | - | - | Surface Mount | 2.992" (76.00mm) | AWS, Wi-Fi, WiMAX |
|
|
PE51OM10012.4/5.8 GHz 3.5/4 dBi Dual Band |
24 |
|
Datasheet |
- | Retail Package | Active | WiFi | Wide Band | 4.125GHz | 2.4GHz ~ 5.85GHz | Module | 1 | 2 | - | 4dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 5.100" (129.54mm) | 802.11a/b/g/n/ac, Wi-Fi, WiMax™ |
|
JCM072SHARK FIN MULTI-FUNCTION ANTENNA |
19 |
|
Datasheet |
- | Box | Active | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.561GHz ~ 1.602GHz | Module | 1 | 1.5, 2, 2.5, 3 | - | 3dBi, 3dBi, 3dBi, 3.5dBi, 2dBic, 3dBi, 3.5dBi | - | Cable - 3m, LNA | FME Male, SMA Male | IP67 | - | - | Screw Mount | 2.720" (69.10mm) | GNSS, LTE |
|
|
AN_GSM_046_MIMO-LP4G+LTE MIMO Combination Antenna |
19 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 2 | 3 | - | 2dBi, 2.5dBi | - | - | SMA Male | IP67 | - | - | Screw Mount | 0.575" (14.60mm) | GSM, LTE |
|
|
2J4941PGFEAGLE 2IN1 4GLTE/3G/2G GNSS ADHE |
9 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Module | 5 | 1.4, 1.5, 1.7 | -16.5dB, -15dB, -14.8dB, -12.1dB | 3.4dBi, 28dBi, 28dBi, 3.5dBi, 3.9dBi | 25 W | Cable - 3m, Filter | SMA Male | IP67, IP69 | - | - | Adhesive | 0.720" (18.30mm) | 2G, 3G, 4G, Galileo, GLONASS, GNSS, GPS, LTE, QZSS |
|
|
AN220201-03CRF ANT 0.79-9GHZ Directed SMA |
20 |
|
Datasheet |
AN220201 | Bulk | Active | UWB | Ultra Wide Band | 4.9GHz | 790MHz ~ 9GHz | Log-Periodic | 1 | 2.61 | -7dB | 5dBi | 5 W | - | SMA Female | - | - | - | Screw Mount | 0.063" (1.60mm) | 5G, GSM, IoT, ISM, LTE, RFID, UMTS, UWB |
|
2111920.001/2 ,868-915 MHZ 2.2 DBI |
6 |
|
Datasheet |
- | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 892MHz | 868MHz ~ 915MHz | - | 1 | - | - | 2.2dBi | 20 W | - | - | - | - | - | Bracket Mount | 11.417" (290.00mm) | ISM, LoRa |
|
|
2J6986MPGFPHOENIX 3IN1 5GNR/4GLTE/3G/2G WI |
10 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GNSS4GBTSMRF ANT 829MHZ MOD RP-SMA M STUD |
18 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 1.575GHz, 1.596GHz, 1.602GHz, 2.205GHz, 2.44GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.4835GHz | Module | 5 | 2 | - | 5dBi, 5dBic, 3dBi | - | Cable - 5m, LNA | RP-SMA Male (1), SMA Male (2) | IP67 | - | - | Stud, Through Hole | 5.906" (150.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|
|
2J6984MPGFAPHOENIX 3IN1 5GNR/4GLTE/3G/2G GN |
10 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

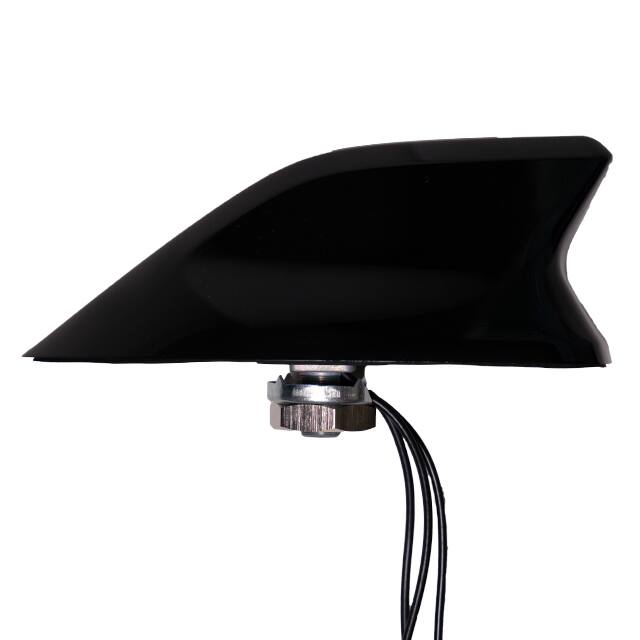

AECS1806C03ZS-3000SRF ANT 3IN1 LTE/GNSS/WIFI EXT SH |
75 |
|
Datasheet |
AECS | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.5815GHz, 2.44175GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 2.4GHz ~ 2.4835GHz | Module | 3 | 1.5, 2, 3 | - | 3.5dBi, 2dBic, 2dBi | - | Cable - 3m, LNA | SMA Male (3) | IP67 | - | - | Panel | 2.720" (69.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
