RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2J2124B-B07HBAYONET 4GLTE/3G/2G WIDEBAND WAL |
10 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Whip, Straight | 3 | 1.4, 1.5, 2.4 | -16.8dB, 14.7dB, -8.6dB | 2.2dBi, 3dBi, 0.4dBi | 25 W | Cable - 3m | SMA Male | IP67 | - | - | Wall Mount | 8.661" (220.00mm) | 2G, 3G, 4G, LTE |
|
|
2J2115B-868-B07HBAYONET 868MHZ/SIGFOX/LORA/LPWA/ |
8 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | -13.6dB | 3.2dBi | 25 W | Cable - 3m | SMA Male | IP67 | - | - | Wall Mount | 8.661" (220.00mm) | ISM, LoRa, Sigfox, Zigbee™ |
|
MA303.A.LB.002RF ANT 892MHZ/1.85GHZ PUCK SMA |
58 |
|
Datasheet |
- | Bag | Last Time Buy | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Puck | 2 | - | -5dB | 1.36dBi | 5 W | - | SMA Male | IP65 | - | - | Magnetic | 0.661" (16.80mm) | GLONASS, GPS |
|
|
2J2115B-915-B07HBAYONET 915MHZ/SIGFOX/LORA/LPWA/ |
8 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.9 | -10.9dB | 3.1dBi | 25 W | Cable - 3m | SMA Male | IP67 | - | - | Wall Mount | 8.661" (220.00mm) | ISM, LoRa, Sigfox, Zigbee™ |
|
IW-1575-2C-BLK-180GPS GLASS MOUNT ANTENNA 1575 MHZ |
6 |
|
Datasheet |
IW | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Module | 1 | 2 | - | 5dBi | - | Cable - 4.5m | SMA Male | IPX5 | - | - | Adhesive | 0.866" (22.00mm) | Glass Mount GPS |
|

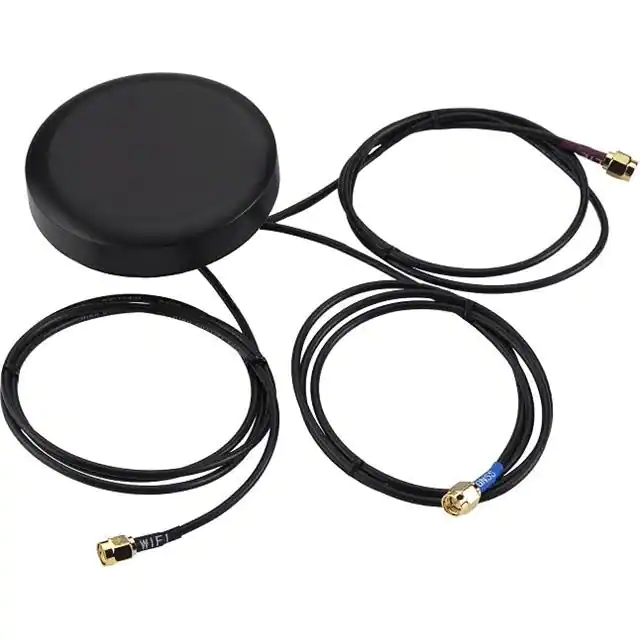

GNSS4GSMRF ANT 829MHZ MOD SMA M STUD/TH |
15 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Module | 2 | 2 | - | 5dBi | - | Cable - 5m, LNA | SMA Male (2) | IP67 | - | - | Stud, Through Hole | 5.906" (150.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|
PE51RD10115DBI SWVL RBRDK 900-930MHZ RPSMA |
54 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Blade, Tilt/Swivel | 1 | 2.5 | - | 5dBi | 50 W | - | RP-SMA | - | - | - | Connector Mount | 15.400" (391.16mm) | LPWAN, ISM |
|
ICEFIN698/869DMNRF ANT 783MHZ BLADE N FEM CONN |
90 |
|
Datasheet |
ICEFIN | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 783MHz | 698MHz ~ 869MHz | Dome | 1 | - | - | 2.6dBi | 15 W | - | N Type Female | IP67 | - | - | Connector Mount | 3.099" (78.71mm) | - |
|
OSCAR1A/0.2M/FMEF/S/S/31RF ANT 850MHZ/900MHZ WHIP STR |
6 |
|
Datasheet |
OSCAR 1A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 1.8 | - | 5dBi | - | - | FME Female | - | - | - | Bracket Mount | 8.071" (205.00mm) | 3G, 4G, 5G, GPRS, GSM, LoRa, LTE, NB-IOT, UMTS |
|
|
2J4701BGFBEETLE GPS/GLO/QZSS/GALILEO/L1 |
9 |
|
Datasheet |
- | Bag | Active | Navigation | Wide Band | 1.575GHz, 1.602GHz | 1.598GHz ~ 1.606GHz | Dome | 2 | 1.2, 1.4 | -20dB, -15dB | 28dBi, 28dBi | - | Cable - 3m, Filter | SMA Male | IP69K | - | - | Screw Mount | 0.689" (17.50mm) | Galileo, GLONASS, GPS, QZSS |
|
CVL-WB2-7C-BLK-36Covert/Slim 5G/LTE WiFi 6e/7 10W |
10 |
|
Datasheet |
CVL | Bulk | Active | Cellular, WiFi | Wide Band | 788.5MHz, 4.45GHz | 617MHz ~ 960MHz, 1.7MHz ~ 7.2GHz | Module | 2 | 3 | - | 2dBi, 2dBi | 10 W | Cable - 2.4m | SMA Male, RP-SMA | IP67 | - | - | Chassis Mount | 0.220" (5.60mm) | 4G/LTE, Wi-Fi Surveillance |
|
SATOA-84A84A14G-CMB1RF ANT 1572-1610MHZ COMBO SCREW |
93 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 892MHz, 1.575GHz, 1.94GHz, 2.44175GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.4835GHz | Module | 4 | 1.5, 2 | - | 2dBi, 2dBi, 2dBi, 3dBi | - | Cable - 3m, LNA | SMA Male (2), RP-SMA Male (1) | - | - | - | Panel Mount | 0.575" (14.60mm) | GPS, GSM, Wi-Fi |
|
|
2J2202K-B07HMINI-BAYONET 2.4/5.0/WIFI/LPWA/B |
7 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.422GHz | 2.41GHz ~ 2.49GHz, 4.92GHz ~ 5.925GHz | Whip, Straight | 2 | 1.5, 1.8 | -15.1dB, -12.8dB | 1.6dBi, 1.5dBi | 25 W | Cable - 3m | RP-SMA Male | - | - | - | Wall Mount | 5.276" (134.00mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
PE51087Rubber Duck Portable Dual Band A |
53 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.36GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.825GHz | Whip, Tilt | 2 | 2 | - | 2.5dBi, 2.5dBi | 30 W | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | General Purpose |
|
ICEFIN24NMOHFRF ANT 2.4GHZ BLADE NMO BASE MT |
63 |
|
Datasheet |
ICEFIN | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | - | - | - | - | - | NMO | IP67 | - | - | Base Mount | 2.624" (66.66mm) | - |
|
|
ICEFIN49NMOHFRF ANT 5.5GHZ BLADE NMO BASE MT |
0 |
|
Datasheet |
ICEFIN | Bulk | Active | - | SHF (f > 4GHz) | 5.5GHz | 4.9GHz ~ 6GHz | Dome | 1 | 2 | - | 6.2dB | - | - | NMO | IP67 | - | - | Base Mount | 2.624" (66.66mm) | - |
|
|
ICEFINWNMOHFRF ANT 2.4GHZ/5.4GHZ BLADE NMO |
0 |
|
Datasheet |
ICEFIN | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 2 | 2 | - | 6.2dB | 30 W | - | NMO | IP67 | - | - | Connector Mount | 2.624" (66.66mm) | - |
|
WAN03RSPRF ANT 2.4GHZ FLAT PATCH CAB ADH |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Flat Patch | 1 | - | - | 3dBi | - | Cable - 3m | RP-SMA Male | - | - | - | Adhesive | 0.310" (7.87mm) | - |
|
SATOA-81G81G16C-CMB8RF ANT 1.575GHZ COMBO ADH MAG |
89 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 2.205GHz, 2.44175GHz, 5.3625GHz | 698MHz ~ 960MHz, 1.57GHz ~ 1.58GHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz | Module | 5 | 1.5, 2, 3 | - | 2dBi, 2dBi, 2dBi, 3dBi, 3dBi | - | LNA | SMA Male (2), RP-SMA Male (1) | IP67 | - | - | Adhesive, Magnetic | 0.638" (16.20mm) | GPS, LTE, Wi-Fi |
|
ICEFIN698/960NMORF ANT 855MHZ DOME NMO PANEL |
9 |
|
Datasheet |
ICEFIN | Bag | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 855MHz | 750MHz ~ 960MHz | Dome | 1 | 2.2 | - | 4.5dBi | - | - | Connector, NMO | IP67 | - | - | Panel Mount | 3.099" (78.71mm) | LTE, ISM, Wi-Fi |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
