RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-2.4-WRT-UFLRF ANT 2.4GHZ DOME U.FL PANEL MT |
304 |
|
Datasheet |
WRT | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz, 2.5GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.9 | - | 3.4dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.433" (11.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-2.4-WRT-RPSRF ANT 2.4GHZ DOME RP-SMA PNL MT |
921 |
|
Datasheet |
WRT | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz, 2.5GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.9 | - | 3.4dBi | - | Cable - 216mm | RP-SMA Male | - | - | - | Panel Mount | 0.433" (11.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-2.4-WRT-SMARF ANT 2.4GHZ DOME SMA ML PNL MT |
384 |
|
Datasheet |
WRT | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz, 2.5GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.9 | - | 3.4dBi | - | Cable - 216mm | SMA Male | - | - | - | Panel Mount | 0.433" (11.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
FXP611.07.0092CRF ANT 1.6GHZ FLAT PATCH IPEX |
4,977 |
|
Datasheet |
Cloud | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.559GHz ~ 1.61GHz | Flat Patch | 1 | 1.2 | - | 3dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Galileo, GLONASS, GPS |
|
PR1KCL25COMBO MIMO MOBILE ROOF SMA ANTEN |
191 |
|
Datasheet |
- | Box | Active | General ISM | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Dome | 2 | 3 | - | 2.5dBi | - | Cable - 3m | SMA Male | IP65 | - | - | Screw | 0.575" (14.60mm) | General Purpose |
|
MIKE3A/3M/SMAM/S/S/17RF ANT 1.575GHZ MOD SMA MALE ADH |
1,272 |
|
Datasheet |
MIKE 3A | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 2 | - | 28dB | - | - | SMA Male | - | - | - | Adhesive, Magnetic | 0.669" (17.00mm) | GPS |
|
AGGP.25F.07.0060ARF ANT 1.575/1.602GHZ CER PATCH |
1,452 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.61GHz | Ceramic Patch | 2 | 2 | - | 1.5dBic, 0dBic | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.311" (7.90mm) | GLONASS, GPS |
|
960RF ANT 1.575GHZ MOD SMA MAGNT 5M |
107 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 2 | - | 28dB | - | Cable - 5m, LNA, Filter | SMA Male | - | - | - | Magnetic | 0.524" (13.30mm) | GPS |
|
S467AH-915SRF ANT 915MHZ WHIP TILT RP-SMA |
3,197 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 8.248" (209.50mm) | - |
|
001-0009RF ANT 2.4GHZ/5.5GHZ WHIP TILT |
1,085 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.394" (137.00mm) | - |
|
001-0010RF ANT 2.4GHZ WHIP TILT RP-SMA |
133 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2.5 | - | 2dBi | - | - | RP-SMA Male | IP67 | - | - | Connector Mount | 4.488" (114.00mm) | - |
|
TI.16.5F11RF ANT 915MHZ WHIP STR N MALE |
196 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | - | - | 4.9dBi | 50 W | - | N Type Male | - | - | - | Connector Mount | 36.220" (920.00mm) | - |
|
|
ANT-W63WS6-IPW1-RPSRF ANT 2.4/5/6GHZ WIFI7 TILT RPS |
299 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.025GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.5, 1.6, 1.8 | - | 9.4dBi, 4.7dBi, 7.2dBi | 10 W | - | RP-SMA Female | IP67 | - | - | Connector Mount | 7.992" (203.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|

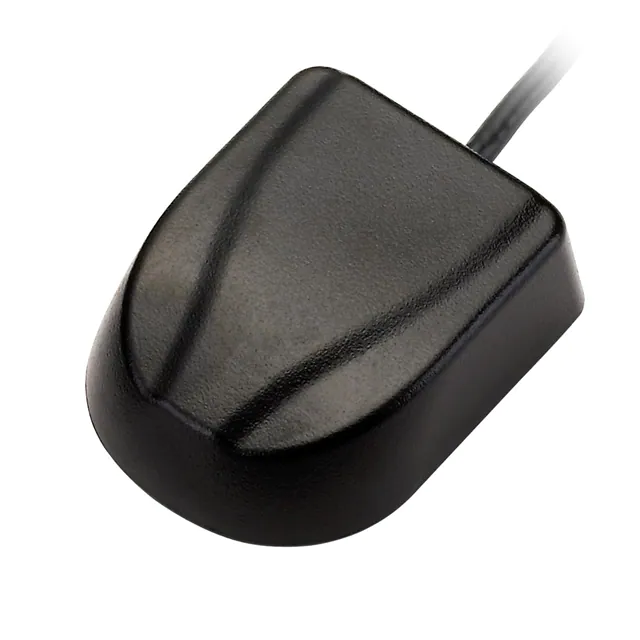

AA.105.301621RF ANT 1.575GHZ MOD SMB MAGNETIC |
136 |
|
Datasheet |
Titan | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Module | 1 | 1.92 | - | 3dBi | - | Cable - 3m, LNA | SMB, Fakra | IP67 | - | - | Magnetic | 0.551" (14.00mm) | GPS |
|
GA.110.101111RF ANT 750/892MHZ WHIP STR MAGNT |
825 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2GHz, 2.5GHz, 3.5GHz | 698MHz ~ 3.5GHz | Whip, Straight | 8 | - | - | 1.8dBi, 2.6dBi, 1.3dBi, 2.5dBi, 2.3dBi, 3.9dBi, 2.9dBi, 0.6dBi | 50 W | Cable - 1m | SMA Male | - | - | - | Magnetic | 13.012" (330.50mm) | CDMA, EDGE, DCS, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
|
AP.10F.07.0039BRF ANT 1.575GHZ CER PATCH CAB |
755 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | -10dBic | - | Cable - 39mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.244" (6.20mm) | GPS |
|
|
ANT-5GW-IPW3-NPRF ANT 5G/4G/LTE WHIP N PLUG |
128 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, | Whip, Straight | 10 | 1.9, 2, 2.2, 2.4, 4.8 | - | 3.1dBi, 4.4dBi, 4.8dBi, 6.1dBi, 5.7dBi, 8dBi, 5.6dBi, 4.4dBi, 5.8dBi, 7.2dBi | 2 W | - | N Type Male | IP67 | - | - | Connector Mount | 6.945" (176.40mm) | 2G, 3G, 4G, 5G, LTE |
|
WSA.2400.A.101151RF ANT 2.4GHZ FLAT BAR RP-SMA ML |
382 |
|
Datasheet |
Phoenix | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flat Bar | 1 | 2 | -10dB | -2.41dBi | 2 W | Cable - 1m | RP-SMA Male | IP65 | - | - | Adhesive | 0.303" (7.70mm) | Bluetooth, ISM, Wi-Fi, WLAN |
|
FW.24.NTY.MRF ANT 2.4GHZ WHIP STR N MALE |
107 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 3 | - | 4.5dBi | 2 W | - | N Type Male | IP67 | - | - | Connector Mount | 12.440" (315.97mm) | Bluetooth, WLAN |
|
GSA.8827.A.101111RF ANT 750MHZ/850MHZ FLAT BAR 1M |
3,993 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 750MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 703MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Flat Bar | 8 | - | - | 2.83dBi, 1.71dBi, 2.93dBi, 1.57dBi, 2.14dBi, 2.32dBi, 2.65dBi, 1.49dBi | 50 W | Cable - 1m | SMA Male | - | - | - | Adhesive | 0.303" (7.70mm) | 2G, 3G, 4G, 5G |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
