RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

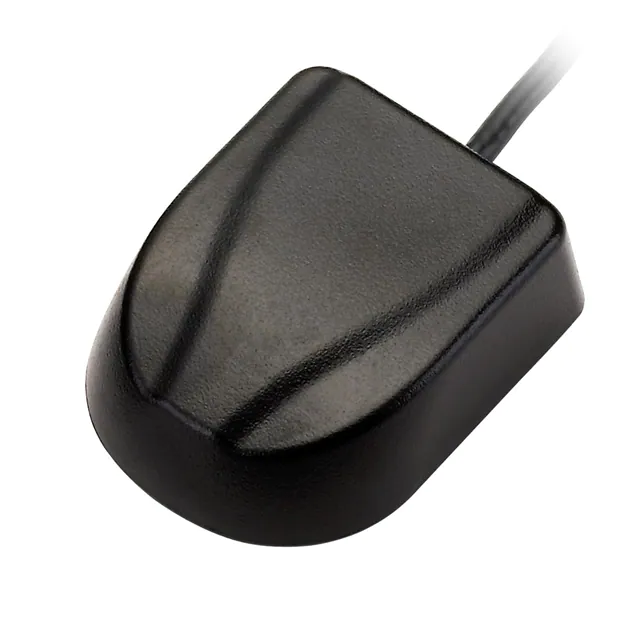

AA.108.301111RF ANT 1.575GHZ MOD SMA MALE ADH |
673 |
|
Datasheet |
Titan | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Module | 1 | 1.92 | - | 2dBic | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Adhesive | 0.598" (15.20mm) | GPS |
|
ANT-LTE-HDP-2000-SMARF ANT 829MHZ/1.94GHZ WHIP CTR |
1,050 |
|
Datasheet |
HDP | Bag | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz, 2.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz | Whip, Center-Fed Double | 3 | 1.75, 1.35, 1.3, 1.25 | - | 3.5dBi, 4.5dBi, 3.25dBi, 4.5dBi | 10 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.244" (6.20mm) | CAT-M1, Cellular, LTE, NB-IOT, 3G, 4G |
|
S463AH-915RF ANT 915MHZ WHIP STR RP-SMA ML |
1,859 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.929" (176.00mm) | - |
|
FW.90.SMA.MRF ANT 829MHZ/2.2GHZ WHIP STR |
619 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | - | 2.02dBi, 4.65dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 9.764" (248.00mm) | CDMA, LTE |
|
S463AM-915RF ANT 915MHZ WHIP STR SMA MALE |
447 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.929" (176.00mm) | - |
|
S152AH-915SRF ANT 915MHZ WHIP TILT RP-SMA |
378 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 4.370" (111.00mm) | - |
|
ANT-2.4-WRT-MON-RPSRF ANT 2.4GHZ DOME RP-SMA PNL MT |
520 |
|
Datasheet |
WRT-MON | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz, 2.5GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.9 | - | 0.8dBi | - | Cable - 216mm | RP-SMA Male | - | - | - | Panel Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-2.4-WRT-MON-UFLRF ANT 2.4GHZ DOME U.FL PANEL MT |
250 |
|
Datasheet |
WRT-MON | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz, 2.5GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.9 | - | 0.8dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
YB0014AA2IN1 LTE&GNSS SCRW MNT COMBO ANT |
318 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 849MHz, 1.561GHz, 1.575GHz, 2.2GHz | 698MHz ~ 1GHz, 1.558GHz ~ 1.564GHz, 1.572GHz ~ 1.578GHz, 1.7GHz ~ 2.7GHz | Module | 4 | 3, 4 | - | 2dBi, 2dBi | - | Cable - 3m, LNA | SMA Male | IP66 | - | - | Screw Mount | 0.571" (14.50mm) | GNSS, LTE, Wi-Fi |
|
PA.710.ARF ANT 700MHZ/850MHZ CHIP SLD |
4,008 |
|
Datasheet |
Warrior | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 4 | 3 | - | 1dBi, 3.2dBi, 3.5dBi, 3.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | CDMA, GSM, LTE, UMTS |
|
PA.760.AWARRIORX WIDE-BAND(600MHZ-6000MH |
698 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.59GHz, 3.4GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz | Chip | 8 | - | - | -0.7dBi, 0.5dBi, 1dBi, -0.5dBi, 3.4dBi, 2.9dBi, 4.3dBi, 3dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.197" (5.00mm) | LTE, Wi-Fi |
|
ANT-2.4-WRT-UFL-100RF ANT 2.4GHZ DOME UFL -100 |
843 |
|
Datasheet |
WRT | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.5 | - | 9.1dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
TG.66.A113WIDEBAND 600-6000MHZ 5G/4G CONNE |
592 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Tilt | 8 | - | - | 1.9dBi, 2.6dBi, 2.4dBi, 2.8dBi, 4.2dBi, 4.4dBi, 4.8dBi, 2.7dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.795" (71.00mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
ANT-DB1-WRT-MON-SMARF ANT 2.45/5.8GHZ DOME PANEL MT |
253 |
|
Datasheet |
WRT-MON | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz | Dome | 2 | 2.2, 10.8 | - | 1.0dBi, 2.8dBi | 5 W | Cable - 216mm | SMA Male | - | - | - | Panel Mount | 1.063" (27.00mm) | 802.11b/g/n/ac, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Zigbee™ |
|
AP.12F.07.0045ARF ANT 1.575GHZ CER PATCH MHFI |
497 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.138" (3.50mm) | GPS |
|
AA.162.301111RF ANT 1.6GHZ MODULE SMA ML MAG |
5,022 |
|
- |
Ulysses | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.575GHz ~ 1.61GHz | Module | 1 | 2 | -17.03dB, -29.6dB | 29dBic, 30dBic | - | LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.394" (10.00mm) | GLONASS, GPS |
|
T131AH-2.4/4.9/5.X-SRF ANT 2.4GHZ/4.9GHZ WHIP TILT |
1,603 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.35GHz, 5.725GHz ~ 5.85GHz | Whip, Tilt | 3 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.252" (108.00mm) | - |
|
GPSGB2530RF ANT 1.561/1.575GHZ CER PATCH |
168 |
|
Datasheet |
Internal Active GPS | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | 2 | - | 1dBic | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.321" (8.15mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
DELTA6A/X/SMAM/S/S/11RF ANT 850MHZ/868MHZ WHIP TILT |
695 |
|
Datasheet |
DELTA 6A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Tilt | 7 | 2 | - | 6.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | GPRS, GSM, UMTS |
|
S161AH-915RRF ANT 915MHZ WHIP RA RP-SMA MAL |
526 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Right Angle | 1 | 2 | - | 2.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.299" (160.00mm) | ISM |
