RF Amplifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | P1dB | Gain | Noise Figure | RF Type | Voltage - Supply | Current - Supply | Test Frequency | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGA-72543-BLKGIC AMP CDMA 100MHZ-6GHZ SOT343 |
0 |
|
Datasheet |
- | SC-82A, SOT-343 | Strip | Obsolete | 100MHz ~ 6GHz | 11.2dBm | 13.5dB ~ 15.5dB | 1.5dB ~ 1.8dB | CDMA, TDMA, W-CDMA | 2.7V ~ 3.3V | 60mA ~ 70mA | 2.4GHz | - | - | Surface Mount | SOT-343, SC70 4-Lead |
|
MSA-0686-BLKGIC AMP 0HZ-800MHZ 86 PLASTIC PKG |
0 |
|
Datasheet |
- | SOT-86 | Bulk | Obsolete | 0Hz ~ 800MHz | 2dBm | 16.5dB ~ 18.5dB | 3dB | - | 2.8V ~ 4.2V | 50mA | 500MHz | - | - | Surface Mount | 86 Plastic Package |
|
MSA-0786-BLKGIC AMP 0HZ-2GHZ 86 PLASTIC PKG |
0 |
|
Datasheet |
- | SOT-86 | Bulk | Obsolete | 0Hz ~ 2GHz | 5.5dBm | 10.5dB ~ 12.5dB | 5dB | - | 3.2V ~ 4.8V | 60mA | 1GHz | - | - | Surface Mount | 86 Plastic Package |
|
MSA-2086-BLKGIC AMP ISM 0HZ-1GHZ 85 MIL MICRO |
0 |
|
Datasheet |
- | 4-SMD (85 mil microstipline) | Bulk | Obsolete | 0Hz ~ 1GHz | 9dBm | 15dB ~ 16.6dB | 3.7dB | ISM | 4.5V ~ 6.3V | 20mA ~ 40mA | 1GHz | - | - | Surface Mount | 85 mil microstipline |
|
MSA-0711-BLKGIC AMP ISM 0HZ-1.9GHZ SOT143-4 |
0 |
|
Datasheet |
- | TO-253-4, TO-253AA | Bulk | Obsolete | 0Hz ~ 1.9GHz | 5.5dBm | 12dB | 5dB | ISM | 3.8V | 22mA | 1GHz | - | - | Surface Mount | SOT-143-4 |
|
|
MSA-2111-BLKGIC RF AMP 0HZ-4GHZ SOT143-4 |
0 |
|
Datasheet |
- | TO-253-4, TO-253AA | Bulk | Obsolete | 0Hz ~ 4GHz | 10dBm | 16dB ~ 17.5dB | 3.3dB | - | 2.9V ~ 4.3V | 40mA | 900MHz | - | - | Surface Mount | SOT-143-4 |
|
ALM-1322-BLKGIC AMP CELL 1.8GHZ-2.2GHZ 22MCOB |
0 |
|
Datasheet |
- | 22-SMD Module, No Lead | Bulk | Obsolete | 1.8GHz ~ 2.2GHz | 17dBm | 29.9dB | 0.57dB | Cellular, CDMA, W-CDMA, PCS, EGSM | 5V | 100.2mA | 2GHz | - | - | Surface Mount | 22-MCOB (5x6) |
|
|
MSA-3111-BLKGIC AMP ISM 0HZ-500MHZ SOT143-4 |
0 |
|
Datasheet |
- | TO-253-4, TO-253AA | Bulk | Obsolete | 0Hz ~ 500MHz | 9dBm | 18.4dB | 3.5dB | ISM, PCS, WLL, 802.16/WiMax | 4V ~ 6V | 20mA ~ 40mA | 1GHz | - | - | Surface Mount | SOT-143-4 |
|
MSA-0486-BLKGIC AMP 0HZ-5GHZ 86 PLASTIC PKG |
0 |
|
Datasheet |
- | SOT-86 | Bulk | Obsolete | 0Hz ~ 5GHz | 12.5dBm | 7dB ~ 8dB | 7dB | - | 4.2V ~ 6.3V | 85mA | 1GHz | - | - | Surface Mount | 86 Plastic Package |
|
|
ADA-4543-BLKGIC AMP CELL 0HZ-2.5GHZ SOT343 |
0 |
|
Datasheet |
- | SC-82A, SOT-343 | Strip | Obsolete | 0Hz ~ 2.5GHz | 1.9dBm | 13.5dB ~ 16.5dB | 3.7dB | Cellular, PCS, WLL, WLAN | 3.1V ~ 3.8V | 15mA | 900MHz | - | - | Surface Mount | SOT-343, SC70 4-Lead |
|
MSA-0505-STRGIC AMP ISM 20MHZ-2.3GHZ 05 PLAST |
0 |
|
Datasheet |
- | 4-SMD (05 Plastic) | Bulk | Obsolete | 20MHz ~ 2.3GHz | 18dBm | 7dB | 6.5dB | ISM | 6.7V ~ 10.1V | 80mA | 1GHz | - | - | Surface Mount | 05 Plastic Package |
|
|
ADA-4643-BLKGIC AMP CELL 0HZ-2.5GHZ SOT343 |
0 |
|
- |
- | SC-82A, SOT-343 | Strip | Obsolete | 0Hz ~ 2.5GHz | 13.4dBm | 15.5dB ~ 18.5dB | 4dB | Cellular, PCS, WLL, WLAN | 3.2V ~ 3.9V | 35mA | 900MHz | - | - | Surface Mount | SOT-343, SC70 4-Lead |
|

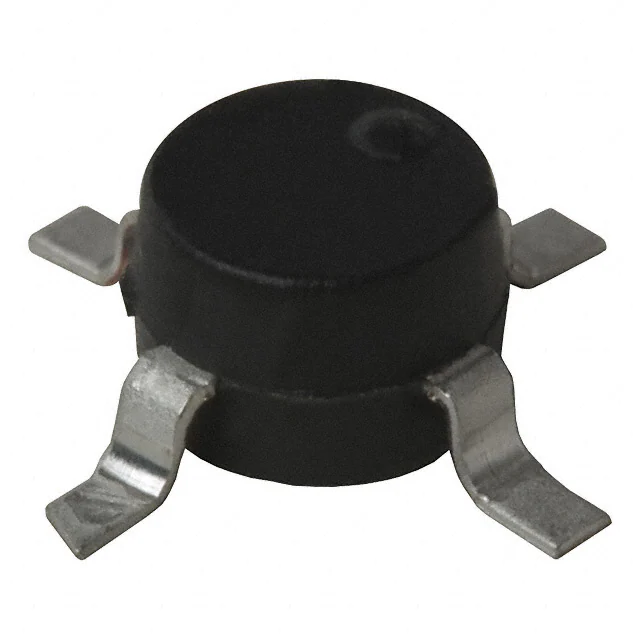

MSA-1105-STRGIC AMP 50MHZ-1.3GHZ 05 PLAST |
0 |
|
Datasheet |
- | 4-SMD (05 Plastic) | Bulk | Obsolete | 50MHz ~ 1.3GHz | 17.5dBm | 10dB ~ 12dB | 3.6dB | - | 4.4V ~ 6.6V | 80mA | 500MHz | - | - | Surface Mount | 05 Plastic Package |
|
ABA-53563-BLKGIC RF AMP ISM 0HZ-3.5GHZ SOT363 |
0 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Strip | Obsolete | 0Hz ~ 3.5GHz | 12.7dBm | 21.5dB | 3.5dB ~ 4dB | ISM, Cordless Phones, PCS, 802.16/WiMax, DBS Broadcast Television, TVRO | 4.5V ~ 5.5V | 46mA | 2GHz | - | - | Surface Mount | SOT-363, SC70 |
|
|
ABA-54563-BLKGIC RF AMP 0HZ-3.4GHZ SOT363 |
0 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Strip | Obsolete | 0Hz ~ 3.4GHz | 16.1dBm | 21dB ~ 25dB | 4.4dB ~ 4.8dB | - | 4.5V ~ 5.5V | 79mA ~ 90mA | 2GHz | - | - | Surface Mount | SOT-363, SC70 |
|
|
ABA-52563-BLKGIC RF AMP ISM 0HZ-3.5GHZ SOT363 |
0 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Strip | Obsolete | 0Hz ~ 3.5GHz | 9.8dBm | 21.5dB | 3.3dB ~ 4dB | ISM, Cordless Phones, PCS, 802.16/WiMax, DBS Broadcast Television, TVRO | 4.5V ~ 5.5V | 35mA | 2GHz | - | - | Surface Mount | SOT-363, SC70 |
|
|
ABA-32563-BLKGIC AMP CELL 0HZ-2.5GHZ SOT363 |
0 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | 0Hz ~ 2.5GHz | 8.4dBm | 17.5dB ~ 19dB | 3.5dB ~ 4.4dB | Cellular, ISM, Cordless Phones, PCS, 802.16/WiMax, DBS Broadcast Television, TVRO | 3V ~ 6V | 37mA ~ 42.5mA | 2GHz | - | - | Surface Mount | SOT-363, SC70 |
|
|
MGA-635T6-BLKGIC AMP ISM 900MHZ-2.4GHZ 6UTSLP |
0 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Bulk | Obsolete | 900MHz ~ 2.4GHz | 2.5dBm | 12.5dB ~ 14.5dB | 0.74dB ~ 1.3dB | ISM, GPS, 802.16/WiMax | 2.85V | 6.3mA ~ 10mA | 1.575GHz | - | - | Surface Mount | 6-UTSLP (2x1.3) |
|
|
ABA-51563-BLKGIC RF AMP ISM 0HZ-3.5GHZ SOT363 |
0 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Strip | Obsolete | 0Hz ~ 3.5GHz | 1.8dBm | 21.5dB | 3.7dB ~ 4dB | ISM | 4.5V ~ 5.5V | 18mA ~ 28mA | 2GHz | - | - | Surface Mount | SOT-363, SC70 |
|
|
ADA-4743-BLKGIC AMP CELL 0HZ-2.5GHZ SOT343 |
0 |
|
- |
- | SC-82A, SOT-343 | Strip | Obsolete | 0Hz ~ 2.5GHz | 17.1dBm | 16.5dB | 4.2dB | Cellular, PCS, WLL, WLAN | 3.3V ~ 4.3V | 60mA | 900MHz | - | - | Surface Mount | SOT-343, SC70 4-Lead |
